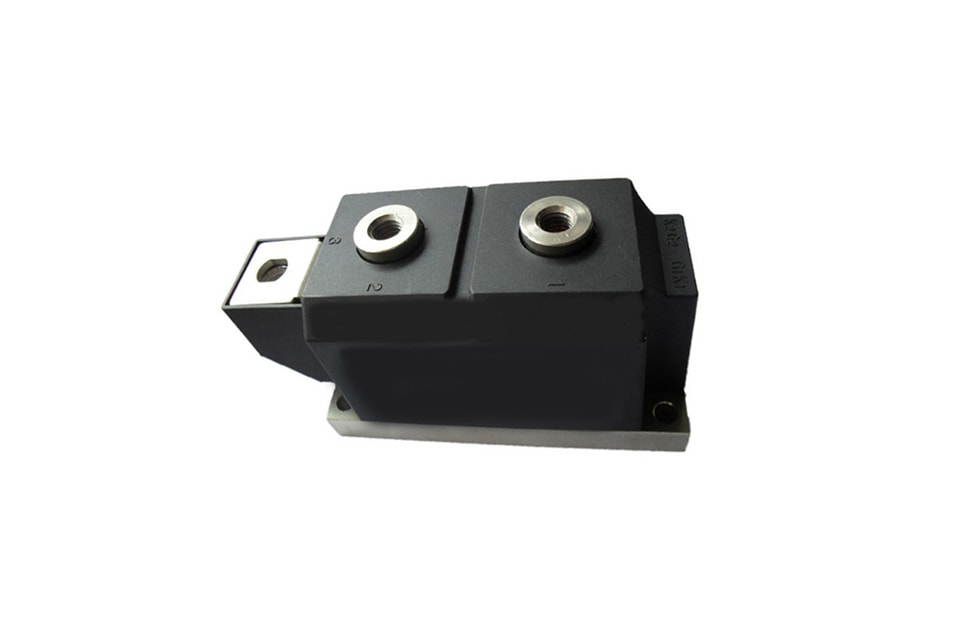

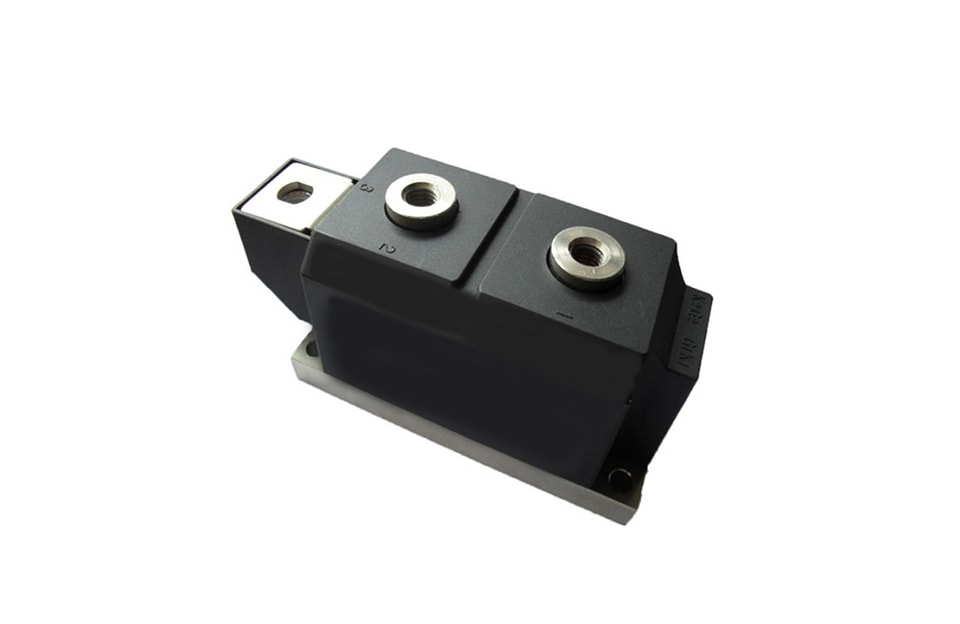

YZPST-MD3-800-44-N-D
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Features
· Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
· Hard Soldered Joints For High Reliability
Typical Applications
· Rectifier for drives applications
· Rectifiers for UBS
· Battery chargers
BLOCKING
Symbol | Condition | Ratings | Unit |
VRRM VRSM | Tj= Tj Max. | 4400 4500 | V |
IRRM | AtVRRM，Single phase，half wave，Tj= Tj Max. | 30 | mA |
VISOL | a.c 50HZ,r.m.s,1S/1min | 3600/3000 | V |
CONDUCTING
Symbol | Condition | Ratings | Unit |
IF(AV) | TC=85°C; 180° sine | 800 | A |
IF(RMS) | TC=85°C; 180° sine | 1256 | A |
IFSM | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 23000 | A |
I2t | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 2600 | kA2S |
VF(TO) | Tj= Tj Max. | 0.9 | V |
rF | Tj= Tj Max. | 0.37 | mΩ |
VFM | On-State Current 2512A，Tj=25°C | 1.77 | V |
Trr | Tj= 125°C IF =120A –di/dt=1000A/us VR =1200V | - | ns |
Electrical Characteristics
Symbol | Condition | Ratings | Unit |
Rth(j-c) | Per Module | 0.025 | °C /W |
Rth(c-h) | Per Module | 0.008 | °C /W |
Tj |
| -40 ~ + 150 | °C |
Tstg |
| -40 ~ + 125 | °C |
M | mounting torque | 9 | Nm |
terminal torque | 18 | Nm | |
W |
| - | g |
For more information about Diode Module please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "
