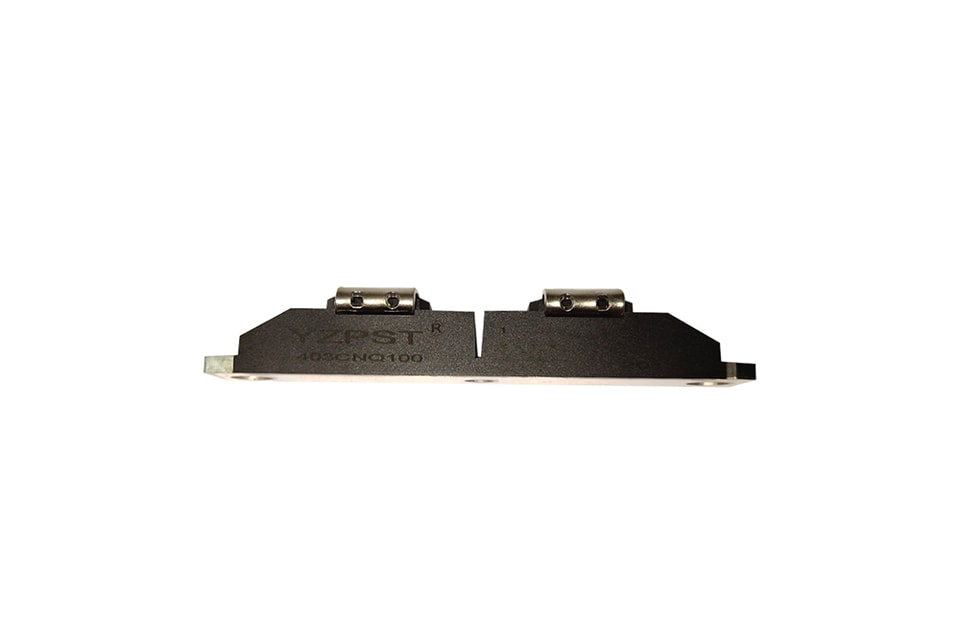

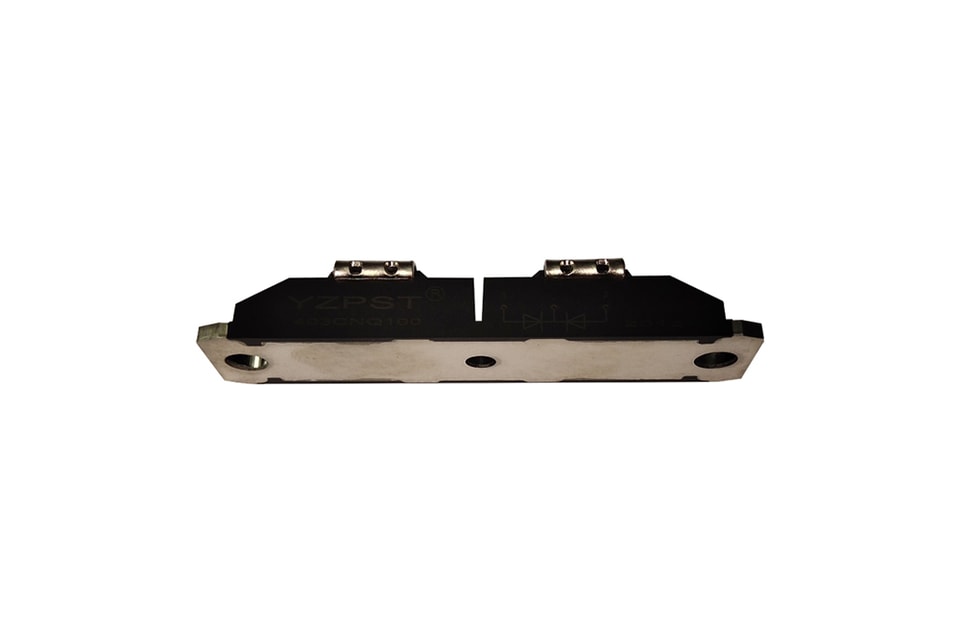

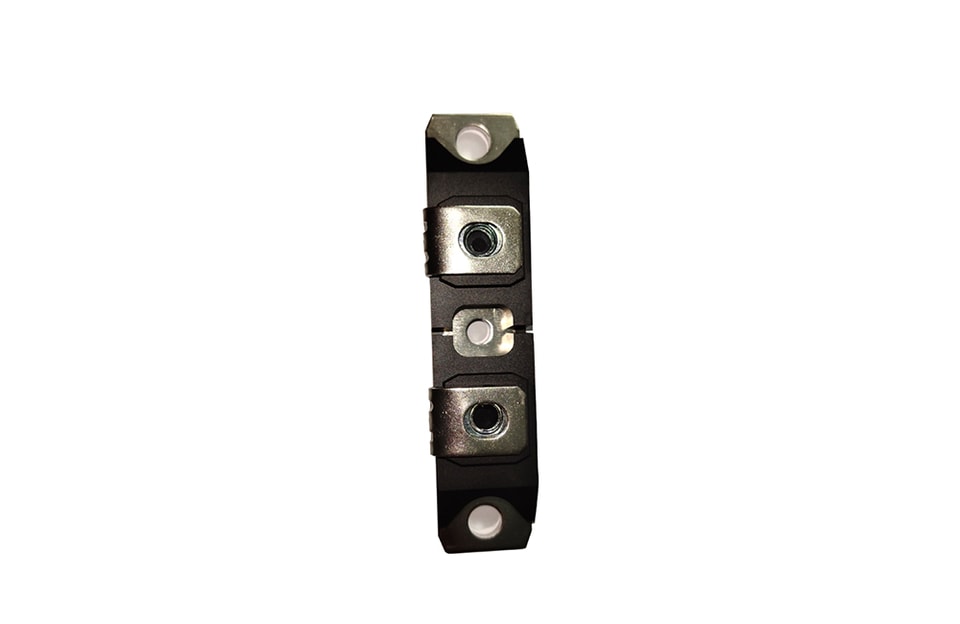

YZPST-400DK100

VOLTAGE RATINGS

PARAMETER

SYMBOL

JDS400DK100

UNIT

Maximum DC reverse voltage

VR

100

V

Maximum working peak reverse voltage

VRWM

100

MAJOR RATINGS AND CHARA CTERISTICS

SYMBOL

CHARACTERISTICS

VALUES

UNIT

IF(AV)

Rectangular waveform

400

A

VRRM

100

V

IFSM

Tp=5us sine

22000

A

VF

200APK TJ=125℃(per leg)

0.70

V

TJ

Range

-55 to 175

℃

ABSOLUTE MAXIMUM RATINGS

PARAMETE

SYMBOL

TEST CONDITIONS

VALUES

UNIT

Maximum average forward per leg

Current per device

IF(AV)

50% duty cycle at T = 142ºC, rectangular waveform

200

A

400

Maximum peak one cycle non-repetitive surge current per leg

IFSM

5 µs sine or 3 µs rect. pulse

Following any rated load condition and with rated

VRRM Applied

22000

A

10 ms sine or 6 ms rect. pulse

2750

Non- repetitive avalanche energy per leg

EAS

TJ=25℃,IAS=13A,L=0.2mH

16.5

mJ

Repetitive avalanche current per leg

IAR

Current decaying linearly to zero in 1 µs

Frequency limited by TJ maximum VA=1.5xV typical

1

A

ELECTRICAL SPECIFICATIONS

PARAMETE

SYMBOL

TEST CONDITIONS

VALUES

UNIT

Maximum forward voltage drop per leg

VF (1) M

200A

T_J=25℃

0.8

V

400A

0.95

200A

T_J=125℃

0.70

400A

0.85

Maximum reverse leakage current per leg

IRM(1)

T_J=25℃

V_R=Rated V_R

2.5

mA

T_J=125℃

40

Maximum junction capacitance per leg

C_T

V_R = 5 VDC (test signal range 100 kHz to 1 MHZ) 25ºC

4150

pF

Typical series inductance per leg

L_S

From top of terminal hole to mounting plane

6.0

nH

Maximum voltage rate of change

dV/dt

Rated V_R

10000

V/µs
