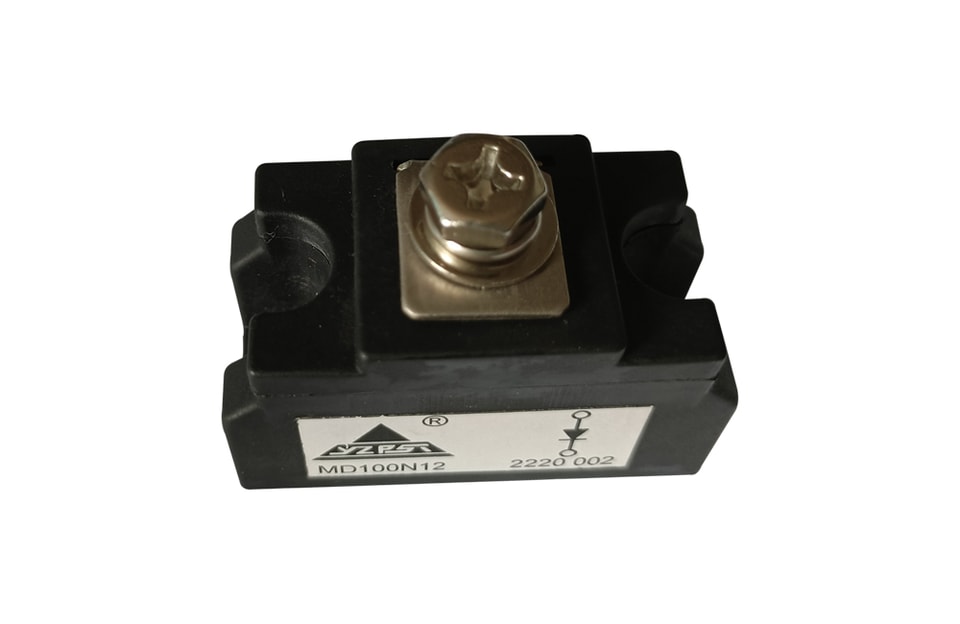

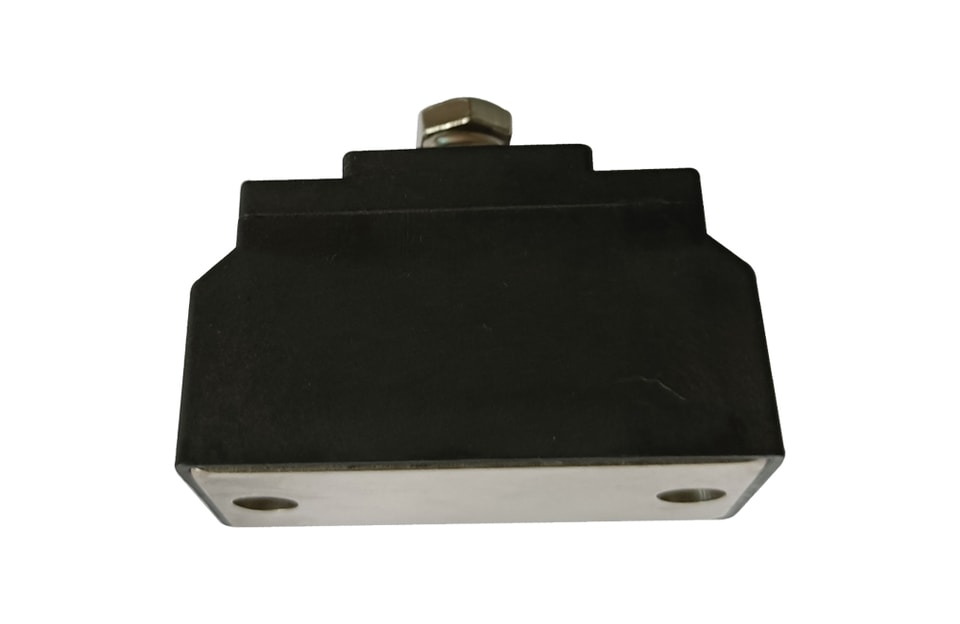

YZPST-MD100N12

Symbol

Condition

Ratings

Unit

V_RRM

V_RSM

T_j= T_j Max.

1200

1300

V

I_RRM

AtV_RRM，Single phase，half wave，T_j= T_j Max.

3

mA

V_ISO

50Hz, r.m.s;1S/1min

V

Symbol

Condition

Ratings

Unit

I_F(AV)

T_C=100°C; 180° sine

100

A

I_F(RMS)

T_C=100°C; 180° sine

180

A

I_FSM

T_j= T_j Max.; t = 10 ms (50 Hz); sine

2000

A

I²t

T_j= T_j Max.; t = 10 ms (50 Hz); sine

20

kA²S

V_F(TO)

(I > π x I_F(AV)),Tj= Tj Max.

0.87

V

r_F

(I > π x I_F(AV)),Tj= Tj Max.

2.45

mΩ

V_FM

On-State Current300A，T_j=25°C

1.50

V

Symbol

Condition

Ratings

Unit

R_th(j-c)

Per Module

0.1

K/W

R_th(c-h)

Per Module

0.11

K/W

T_j

-40  ~  + 130

°C

T_stg

-40  ~  + 125

°C

M

mounting torque

5

Nm

terminal torque

3

Nm

W

g
