YZPST-MCD215-20I01
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

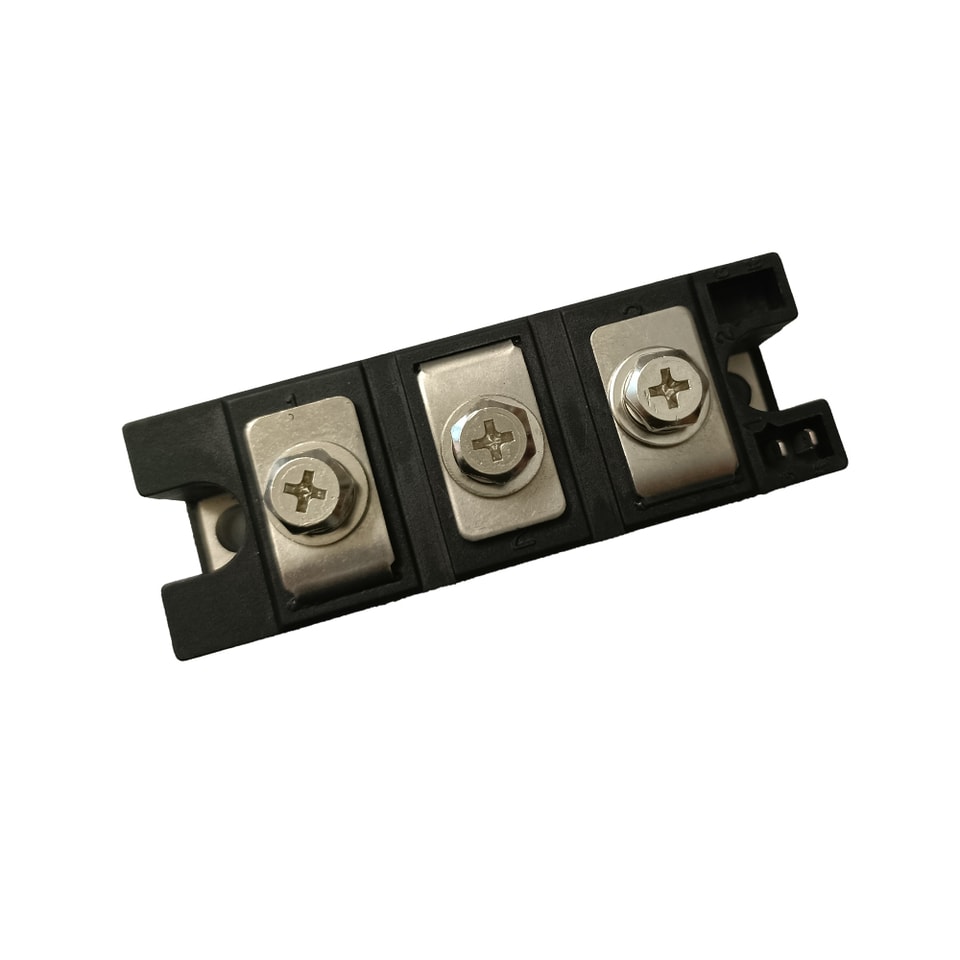

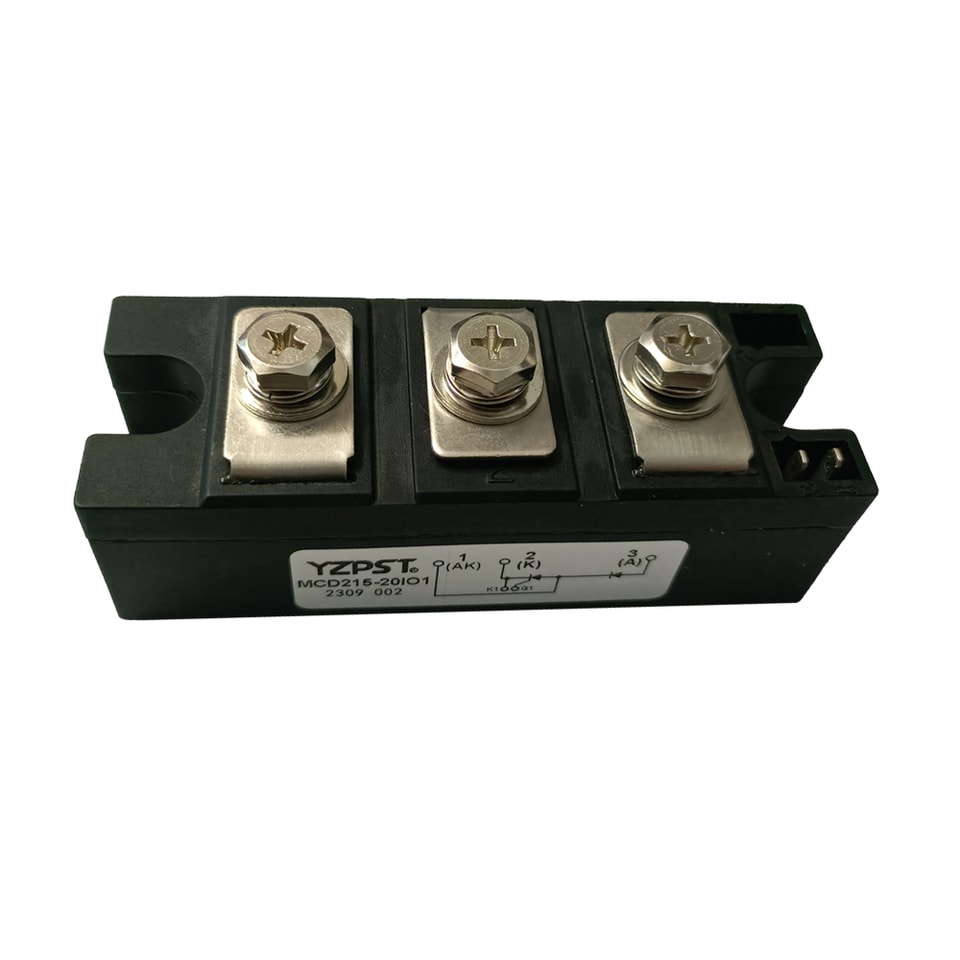

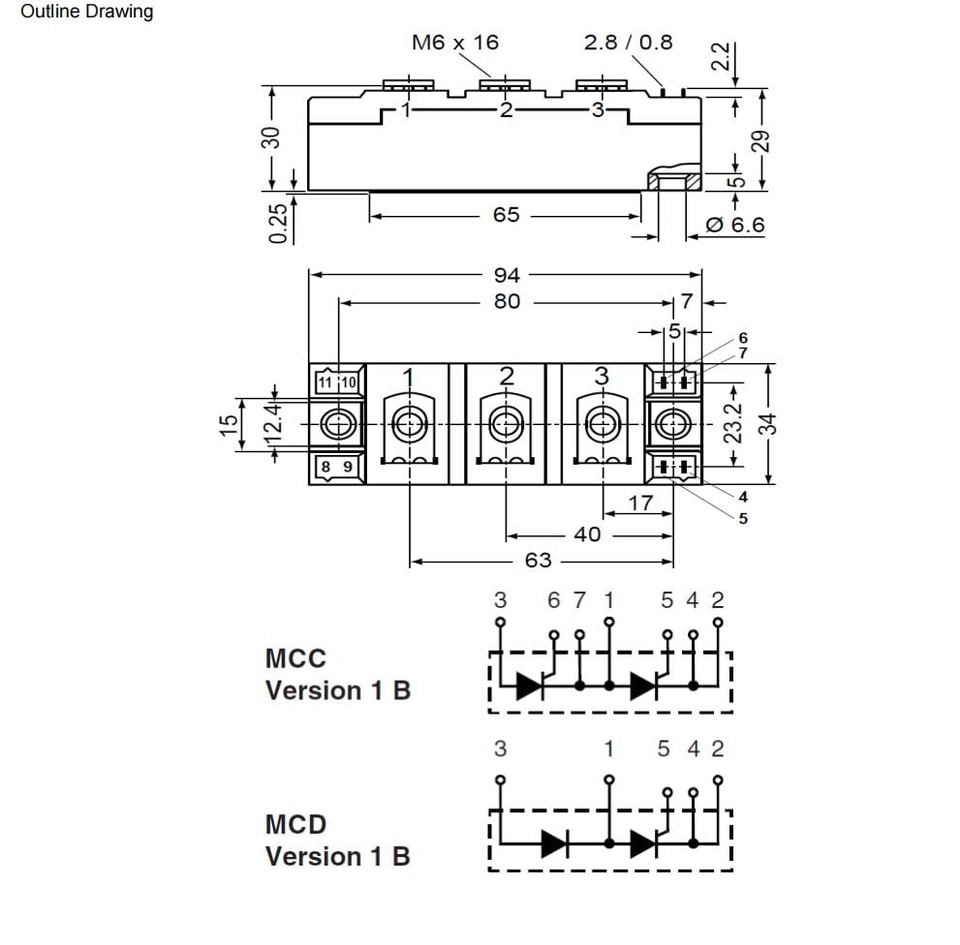

Thyristor/Diode Modules YZPST-MCD215-20I01
Features
· Industrial standard package
· Electrically insulated base plate
· Heat transfer through aluminium oxide ceramic
insulated metal base plate
· Chip soldered on direct copper bonded AL2O3
ceramic
· Thyristor chip with center gate
Typical Applications
- DC motor control
- AC motor soft starters
- Temperature control
- Professional light dimming
VDRM/VRRM | Tj=25°C | 2000 | V |
VRSM | Tj=25°C | 2100 | V |
Maximum Ratings
| Symbol | Condition | Ratings | Unit |
| IT(AV) | sin. 180; Tc =85°C, | 215 | A |
| ITRMS | sin. 180; Tc =125°C, | 340 | A |
| ITSM | Tvj =45°C; 10 ms | 8000 | A |
| Tvj =125°C; 10 ms | 6800 | A | |
| I2t | Tvj =45°C; 8,3…10 ms | 320 | kA2S |
| (di/dt)cr | non-repetitive | 100 | A/us |
| Viso | A.C. 1s / 1min. | 3600/3000 | V |
| Tj | -40 ~ + 125 | °C | |
| Tstg | -40 ~ + 125 | °C | |
| W | About | 150 | g |
Electrical Characteristics
Symbol | Condition | Ratings | Unit |
IDRM /IRRM | AtVDRM, Tj=125°C | 15 | mA |
VT | On-State Current 200A, Tj=25°C | 1.20 | V |
VT(TO) | Tj=125°C | 0.80 | V |
tgd | Tj=25°C | 2 | us |
tq | Tj=100°C | 200 | us |
IGT/VGT | Tj=25°C | 150 / 2.0 | mA/V |
VGD | Tj=125°C | 0.25 | V |
(dv/dt)cr | Tj=125°C | 1000 | V/us |
IH | Tj=25°C, max. | 150 | mA |
IL | Tj=25°C, max. | 200 | mA |
Rth(j-c) | Per Module | 0.13 | K/W |
For more information about YZPST-MCD215-20I01 please download the PDF file above named " YZPST-MCD215-20I01 "
