YZPST-DFM3000WXS17-A000
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

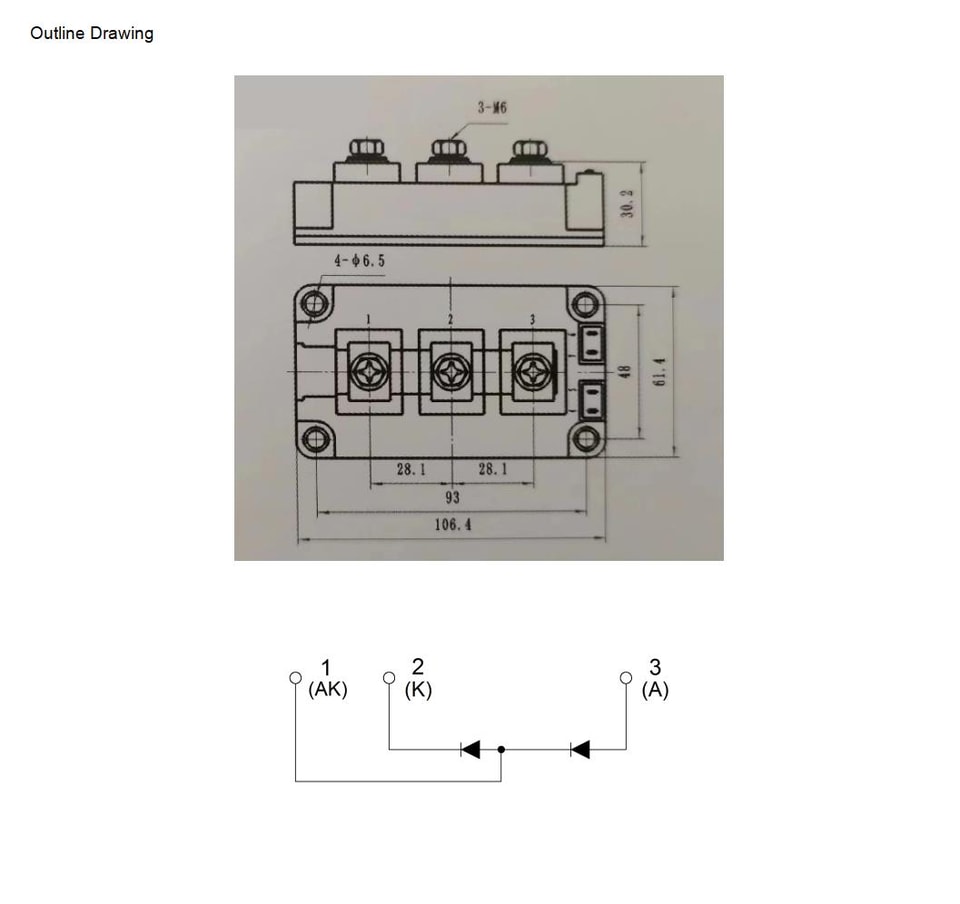

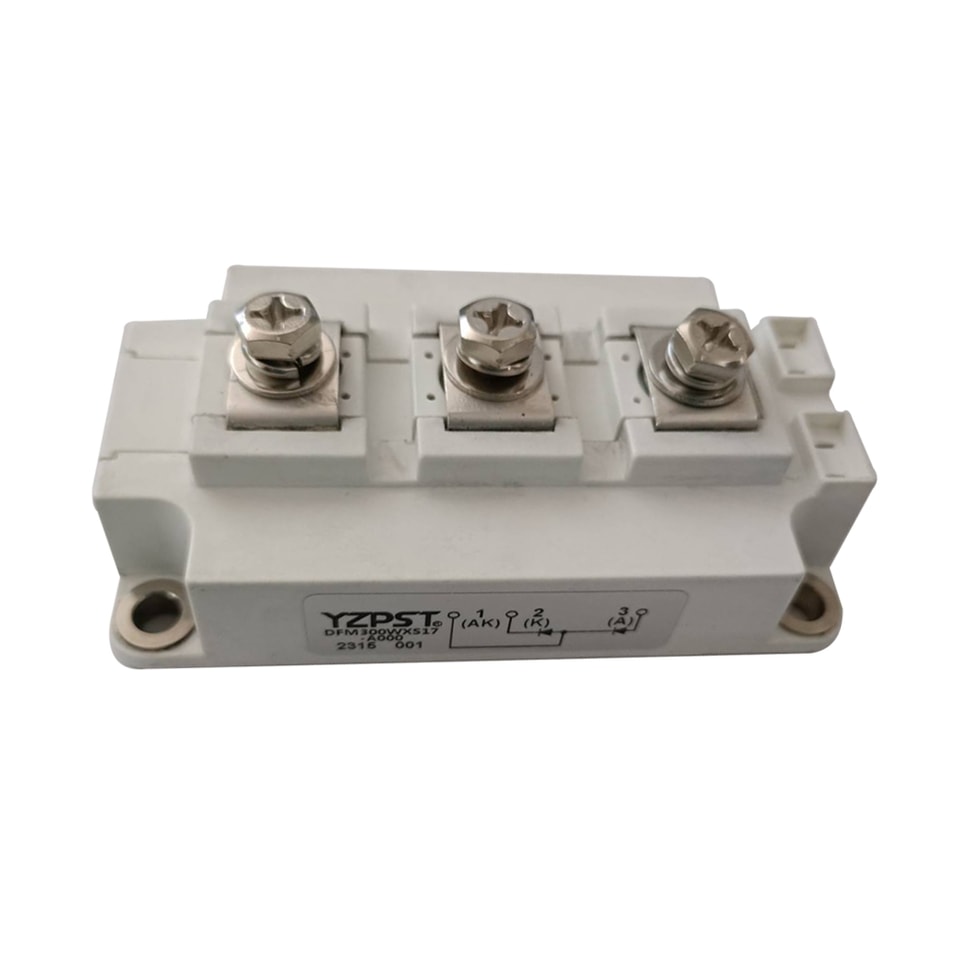

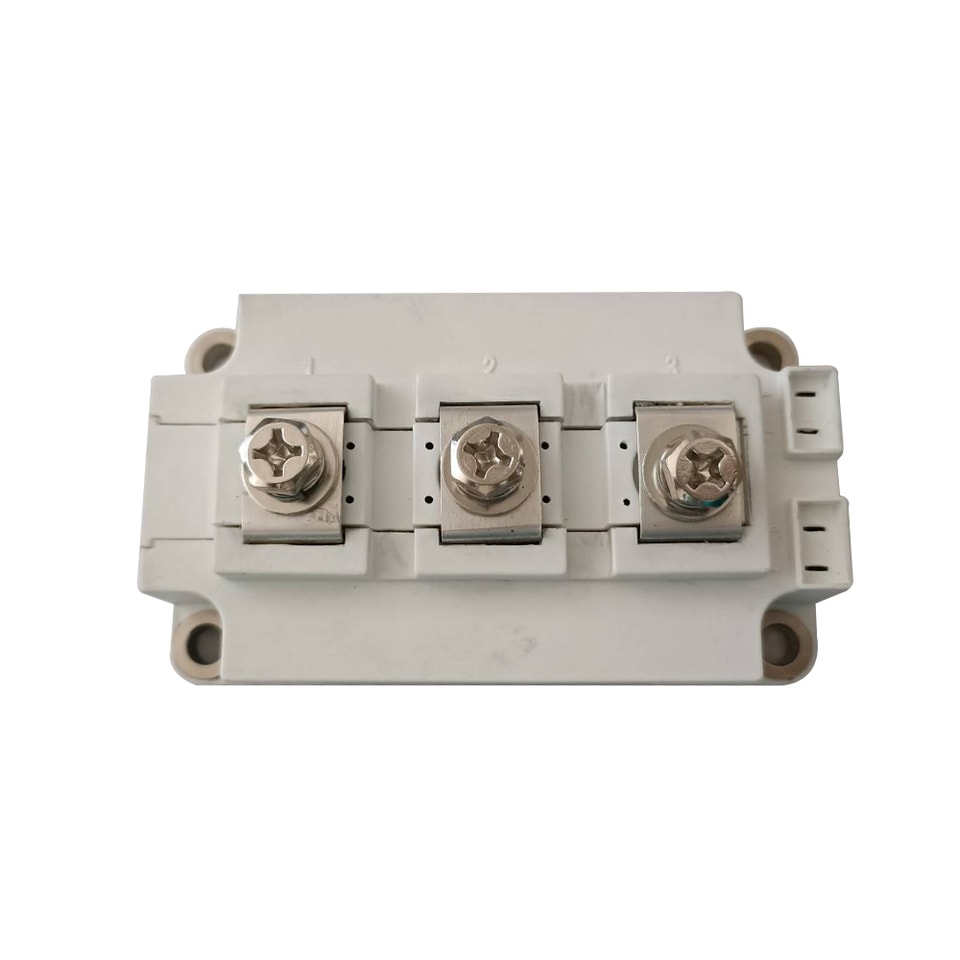

FAST Diode Modules P/N：YZPST-DFM3000WXS17-A000
Features

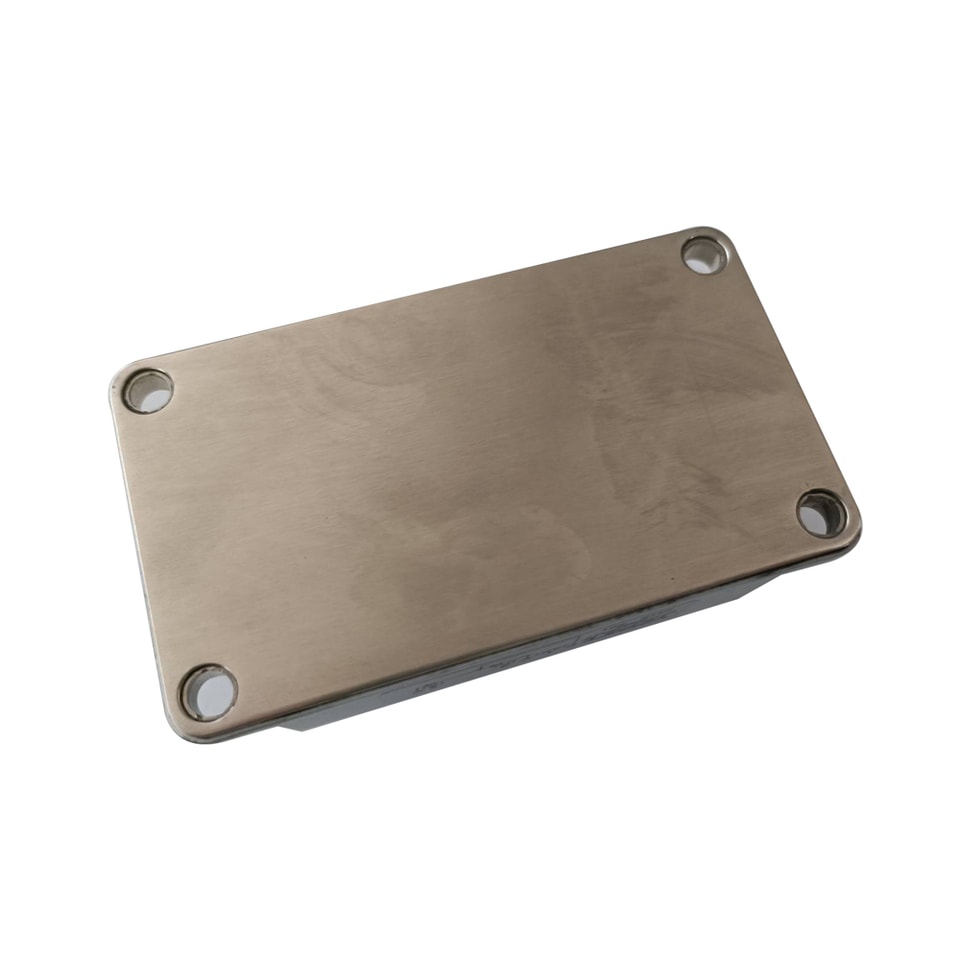

- Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
- Hard Soldered Joints For High Reliability
- UL Recognized
Typical Applications
- Rectifier for drives applications
- Rectifiers for UBS
- Battery chargers
BLOCKING
Symbol | Condition | Ratings | Unit |
VRRM VRSM | Tj= Tj Max. | 1700 1800 | V |
IRRM | AtVRRM，Single phase，half wave，Tj= Tj Max. | 10 | mA |
VISOL | 50Hz, 1S/1MIN | 4800/4000 | V |
CONDUCTING
Symbol | Condition | Ratings | Unit |
IF(AV) | TC=65°C; 180° sine | 300 | A |
IF(RMS) | TC=82°C; 180° sine | - | A |
IFSM | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 2449 | A |
I2t | Tj= Tj Max.; t = 10 ms (50 Hz); sine | 30 | kA2S |
VF(TO) | Tj= Tj Max. | - | V |
rF | Tj= Tj Max. | - | mΩ |
VFM | On-State Current 300A，Tj=125°C | 2.05 | V |
Trr | Tj= 25°C IF =400A –di/dt=2250A/us VR =900V | 900 | ns |
Electrical Characteristics
Symbol | Condition | Ratings | Unit |
Rth(j-c) | Per Module | 0.10 | °C /W |
Rth(c-h) | Per Module | 0.015 | °C /W |
Tj |
| -40 ~ + 125 | °C |
Tstg |
| -40 ~ + 125 | °C |
M | mounting torque | 5 | Nm |
terminal torque | 5 | Nm | |
W |
| - | g |
