TECHNICAL PRODUCT DATA

YZPST-KMP-786-4A20

Home > Products > Parts For LED Driver > YZPST-KMP-786-4A20

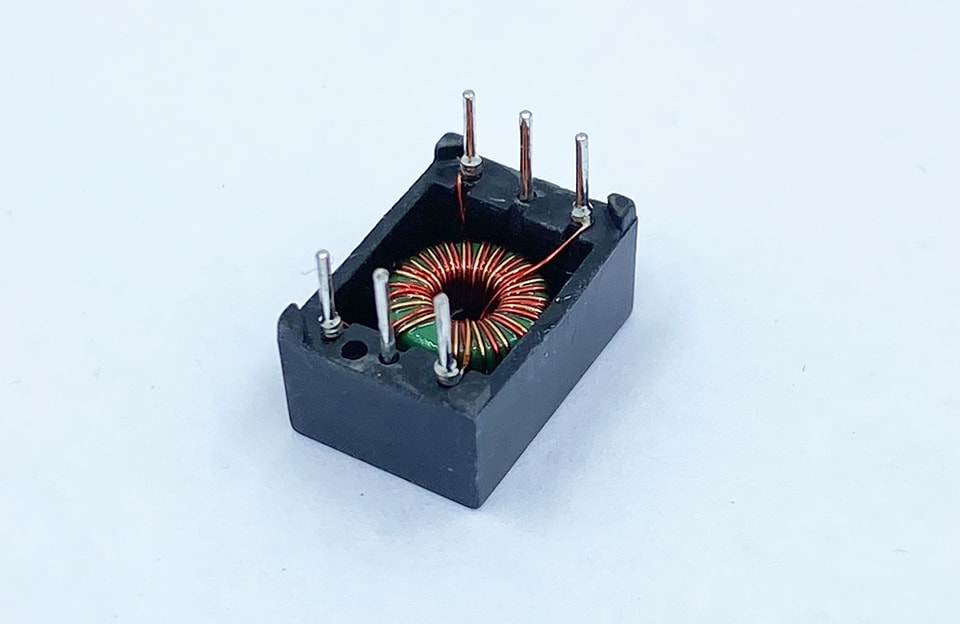

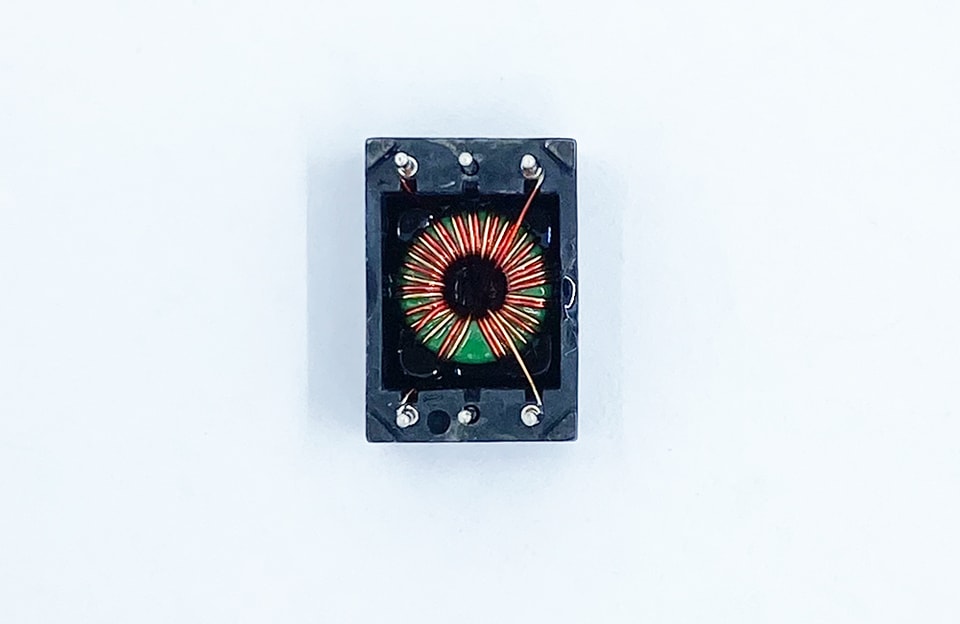

PRODUCT VISUAL01 / GALLERY

POWER COMPONENT

YZPST-KMP-786-4A20

Product summary and primary technical information will be loaded from the product database.

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

EmailTechnical sales

PhoneContact team

REQUEST A TECHNICAL QUOTE ↗

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Downloads & technical files

YZPST-KMP-786-4A20 YZPST-DCMA1206P2S 501-G320.pdfDOWNLOAD ↘

KMP-786-4A20 Low profile General Purpose Pulse Transformers DCMA1206P2S-501

Feature

•Low profile.

•Toroidal construction.

•Fully encapsulated.

Applications

•Balanced antennas.

•Receivers / Transmitters.

Product Identification

YZPST-KMP-786-4A20-1

Shapes And Dimensions

Electrical Characteristics

Part No.

Pin No

10KHz/0. 1V (uH)

Leakage Inductance

10KHz/0. 1V (uH)

DCR

(Ω)

Interwinding Capacitance

(pF)

DCMA1206P2S-501

1-4(N1)

2-3(N2)

500

0.25

0.34

Min

Typ

Max

Typ

Equivalent Circuit Schematic

MEAS Item	Ls (uH)	Lk (uH)	DCR (Ω)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
SPEC	500	0.25	0.34	12.50	8.70	6.20	10.16	3.30	5.08	0.50
Upper	-	-	0.34	12.75	8.95	6.45	10.41	3.80	5.33	0.65
Lower	500	-	-	12.25	8.45	5.95	9.91	2.80	4.83	0.35
Tolerance	Min	Typ	Max	0.25	0.25	0.25	0.25	0.50	0.25	0.15
Test Freq.	10KHz/0.1V	-
1	855.60	0.163	0.236	12.44	8.74	6.20	10.11	3.39	4.99	0.50
2	900.80	0.138	0.234	12.45	8.77	6.19	10.13	3.45	5.02	0.50
3	969.60	0.155	0.237	12.50	8.76	6.18	10.12	3.45	5.04	0.50
4	1004.20	0.166	0.235	12.47	8.75	6.18	10.13	3.32	5.03	0.49
5	985.60	0.192	0.235	12.46	8.76	6.18	10.11	3.35	5.02	0.50
6
7
8
9
10
Average	943.16	0.16	0.24	12.46	8.76	6.19	10.12	3.39	5.02	0.50
Max	1004.20	0.19	0.24	12.50	8.77	6.20	10.13	3.45	5.04	0.50
Min	855.60	0.14	0.23	12.44	8.74	6.18	10.11	3.32	4.99	0.49
Range	148.60	0.05	0.00	0.06	0.03	0.02	0.02	0.13	0.05	0.01
StDevP	56.01	0.02	0.00	0.02	0.01	0.01	0.01	0.05	0.02	0.00
