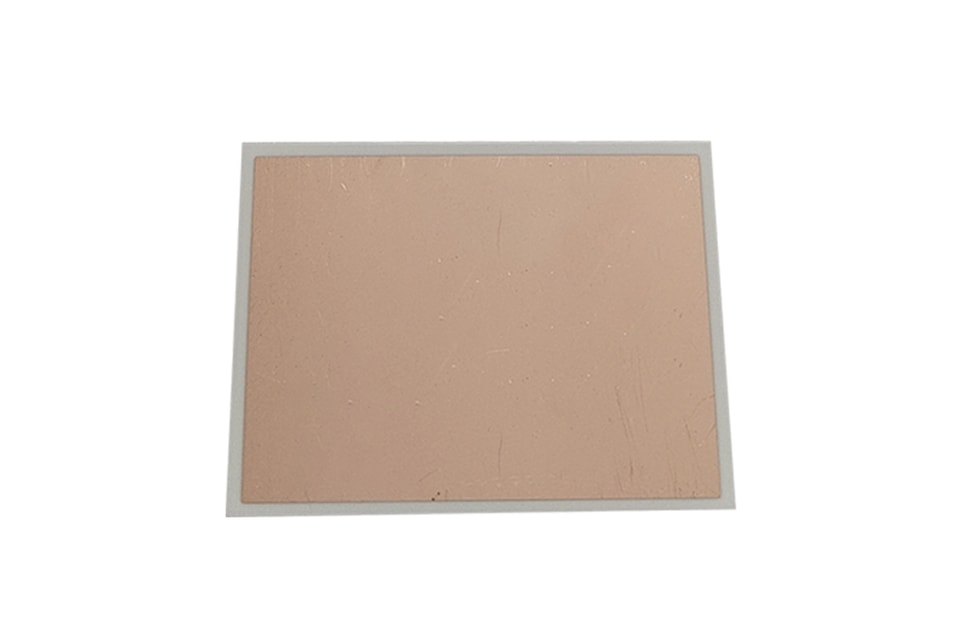

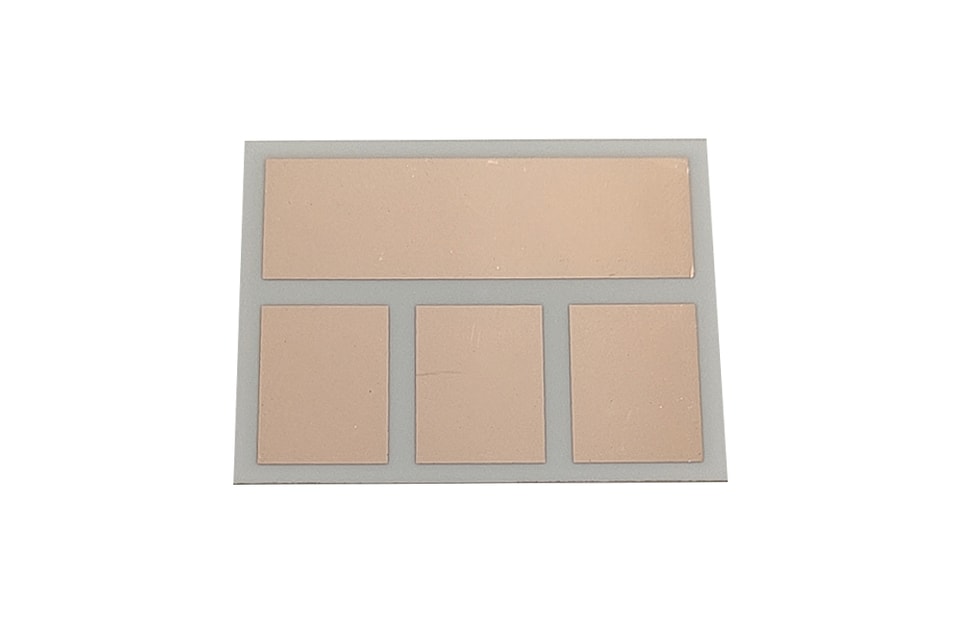

Copper-coated ceramic substrate YZPST-DPC-16x22
Product summary and primary technical information will be loaded from the product database.
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
General Description
The copper-coated ceramic substrate ueses copper plating technology, and the copper surface is protected by the copper preservative. The metal layer (copper) adheres well to the alumina ceramic substrate. The product has good heat dissipation performance .
Application:Semiconductor device package insulating material
Features:
| Min | Max | Units |
Metal thickness | 8 | 15 | μm |
| |||
Metal adhesion | Raduis of welding sopt:1.5mm Pulling force≧30Kg |
| |
Insulated withstand voltage | ≧2500 | V | |
l


For more information aboutYZPST-DPC-16x22 please download the PDF file above named " YZPST-DPC 16X22 "
