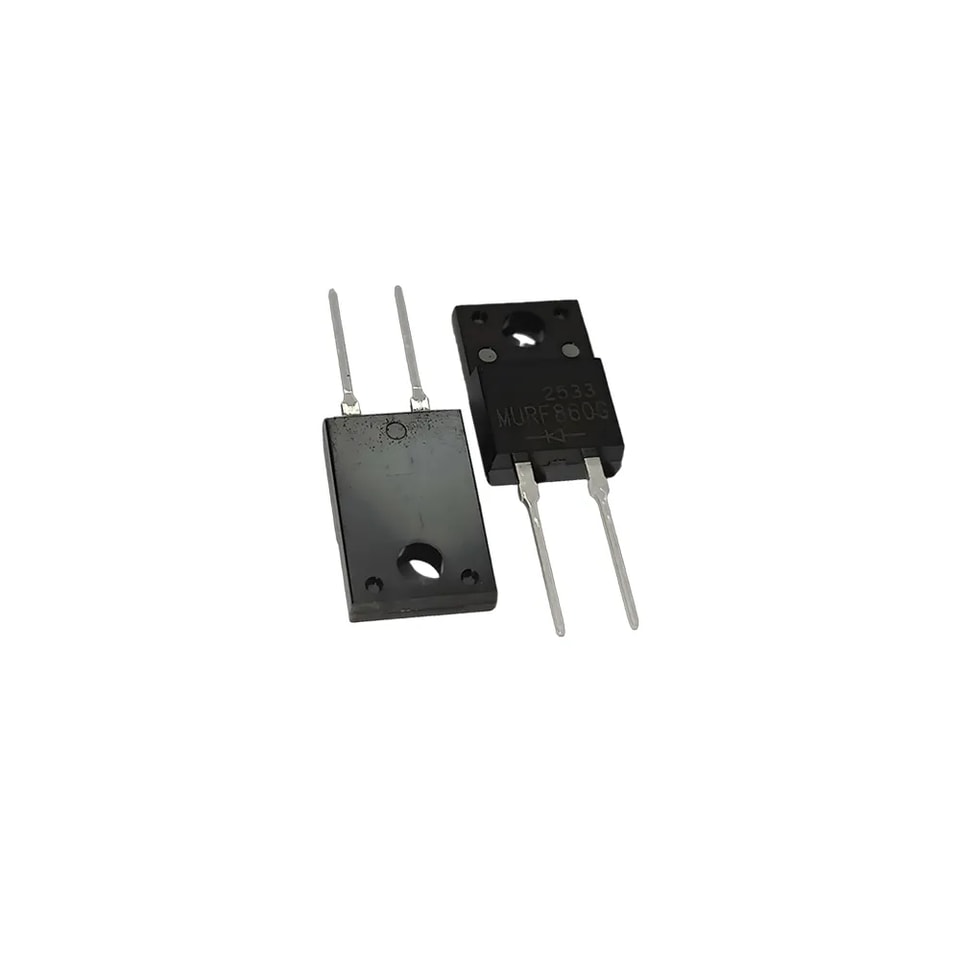

YZPST-MURF860G
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
SUPERFAST RECOVERY RECTIFIER
MURF805G Thru MURF860G
VOLTAGE - 50 TO 600 VOLTS CURRENT 8AMPERES
FEATURES
Low forward voltage drop
High Current Capability
High reliability
High surge Current Capability
Good for switching mode application
High temperature soldering : 260oC/10seconds at terminals
Pb free product are available : 99% Sn above can meet RoHS environment substance directive request
MECHANICAL DATA

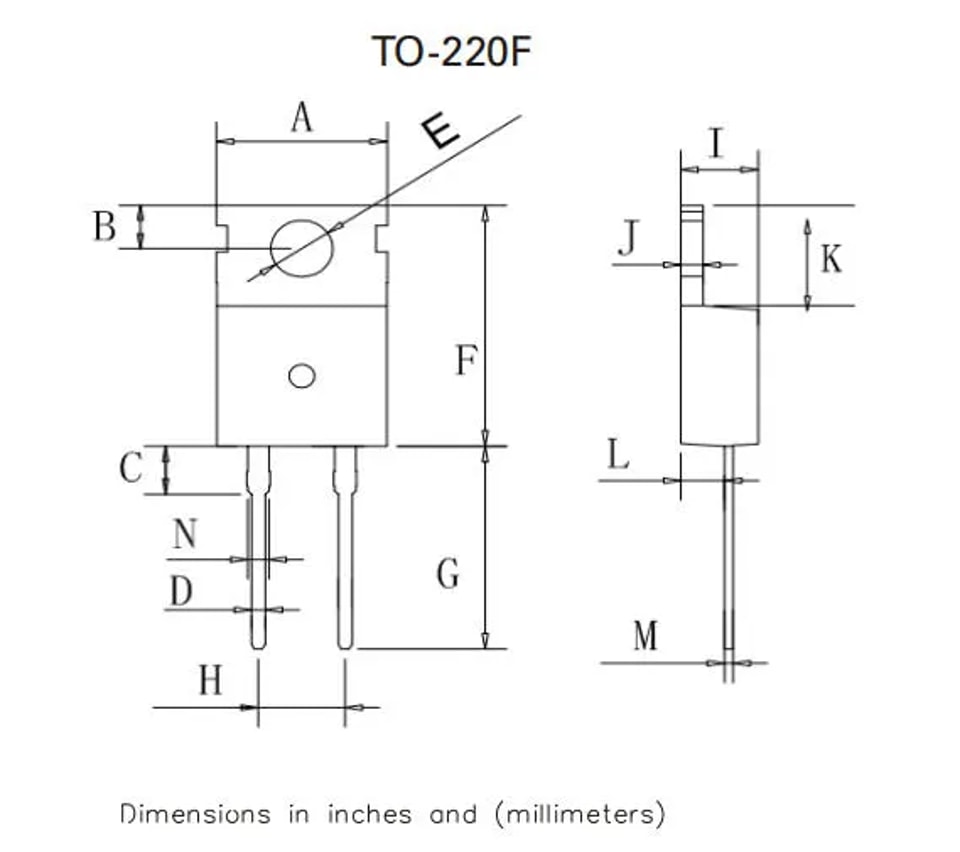

Case TO220AC Molded plastic
Epoxy : UL 94V-0 rate flame retardant Lead : Lead solderable per
MIL-STD-202, Method 208 guranteed
Polarity : As Marked
Mounting Position : Any Weight : 2.24gram
MAXIMUM RATIXGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25oC ambient temperature unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load
For capacitive load, derate current by 20%
PARAMETER | MUR 805G | MUR 810G | MUR 815G | MUR 820G | MUR 830G | MUR 840G | MUR 860G | UNITS | |
Maximum Repetitive Peak Reverse Voltage | 50 | 100 | 150 | 200 | 300 | 400 | 600 | Volts | |
Maximum RMS Voltage | 35 | 70 | 105 | 140 | 210 | 320 | 420 | Volts | |
Maximum DC Blocking Voltage | 50 | 100 | 150 | 200 | 300 | 400 | 600 | Volts | |
Maximum Average Forward Rectified Current .375 (9.5mm) Lead Length at TC =1000C | 8 | Amps | |||||||
Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) | 125 | Amps | |||||||
Maximum Instandeous Forward Voltage at 8.0A | 0.95 | 1.25 | 1.65 | Volts | |||||
Maximum DC Reverse Current TA =250C at Rated DC Blocking Voltage TA =1000C | 10 250 |
| uA | ||||||
Typical Junction Capacitance (Note 1) | 62 | pF | |||||||
Maximum Reverse Recovery Time (Note 2) | 35 | 35 | nS | ||||||
Typical Thermal Resistance Note R JC | 3.0 | 0C / W | |||||||
Operating and Storage Temperature Range TJ | -55 to +150 | ℃ | |||||||
