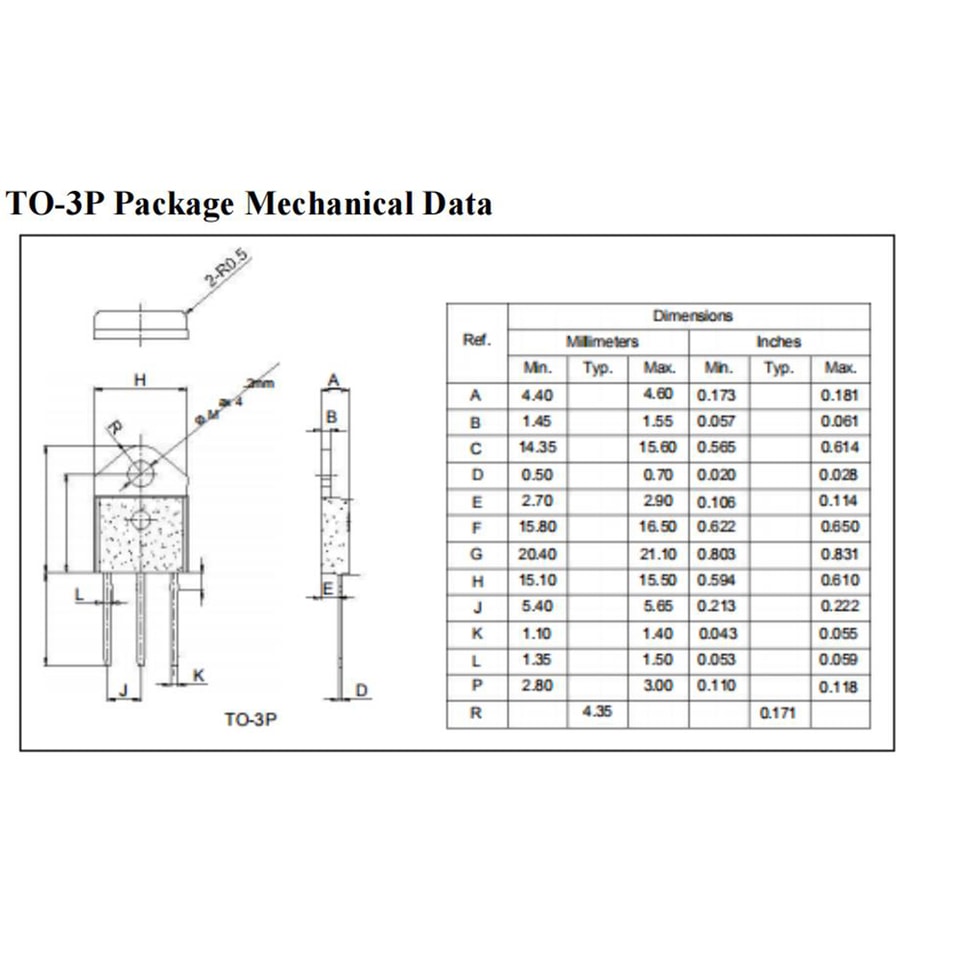

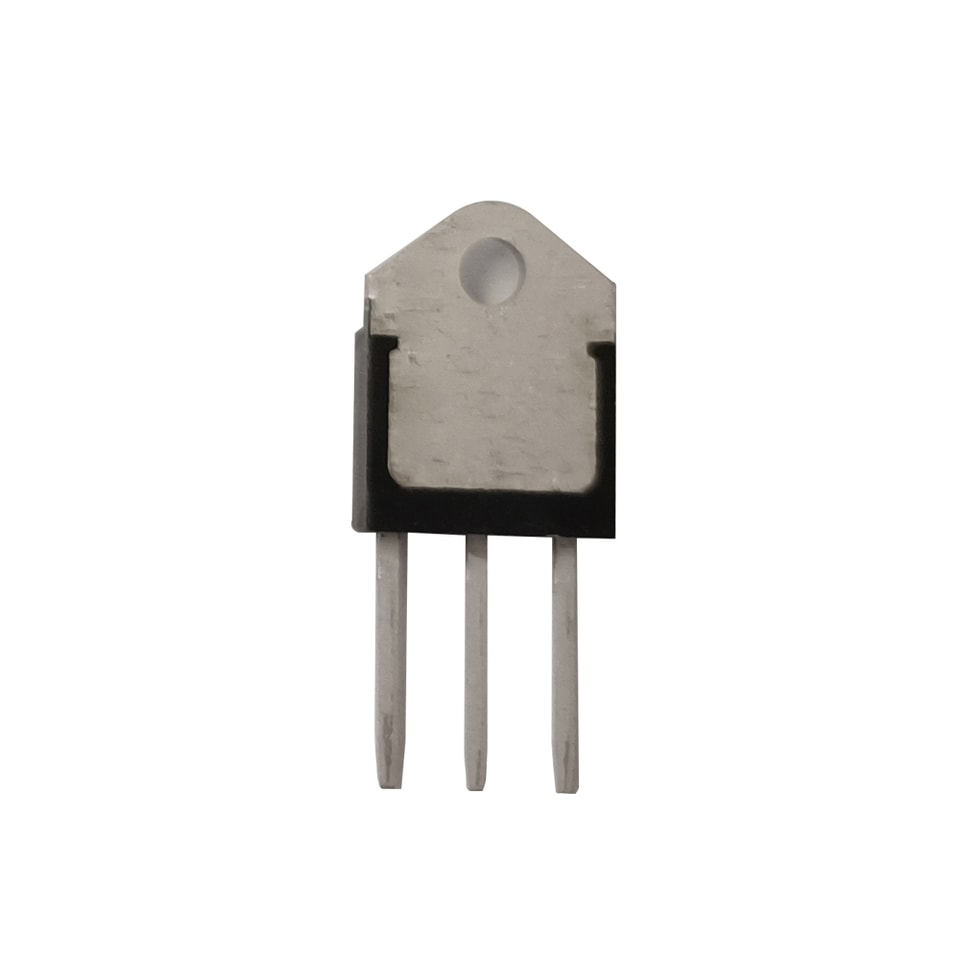

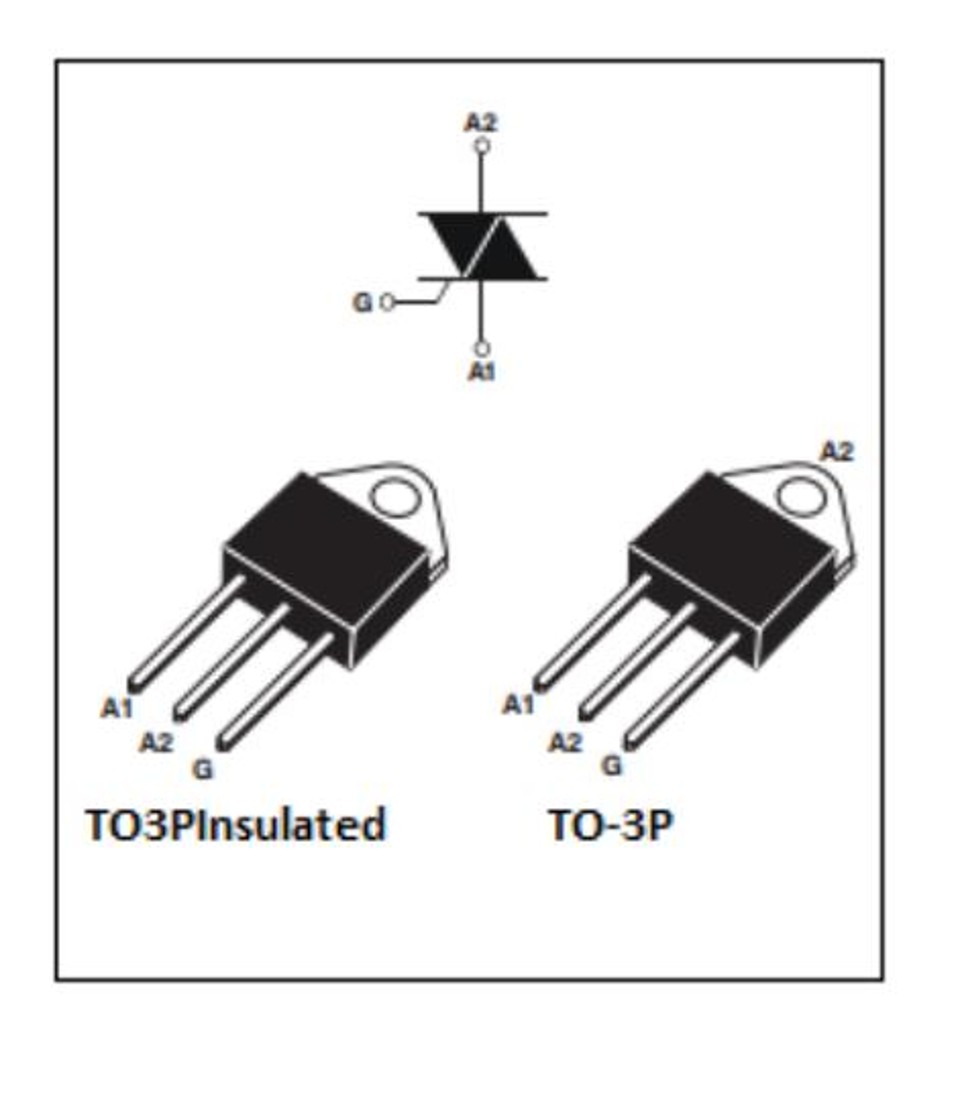

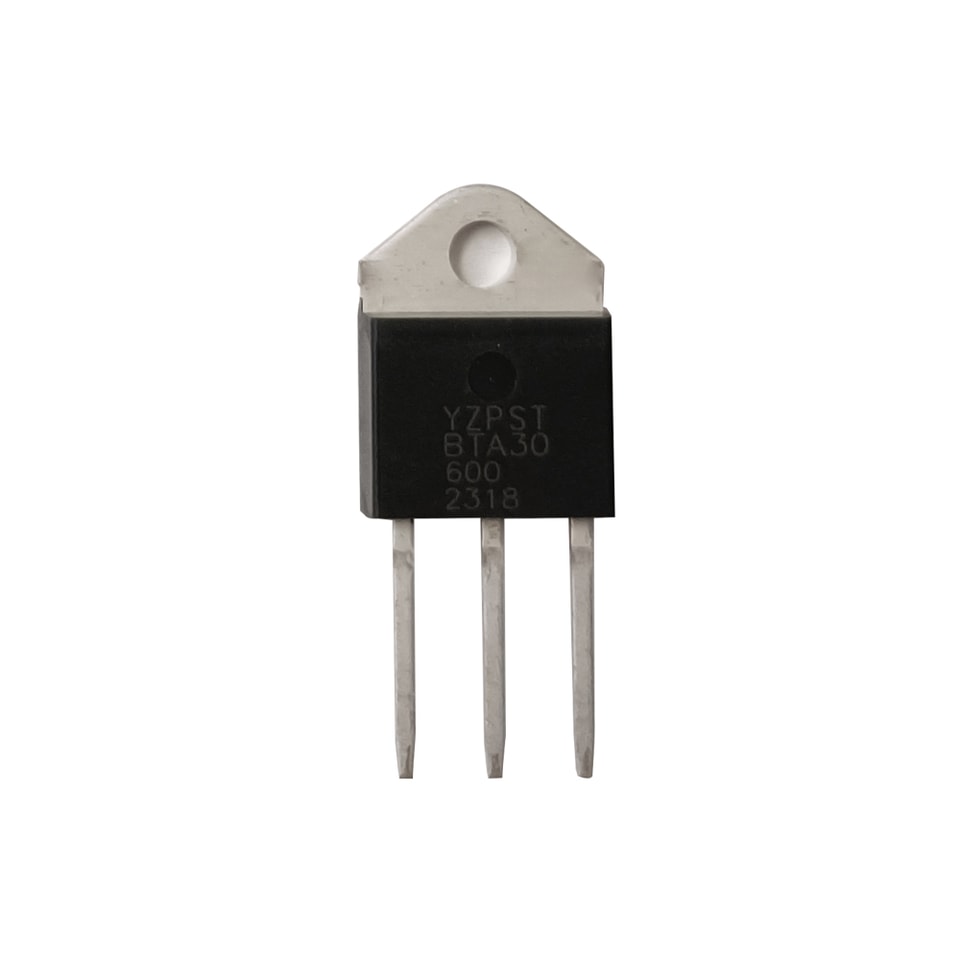

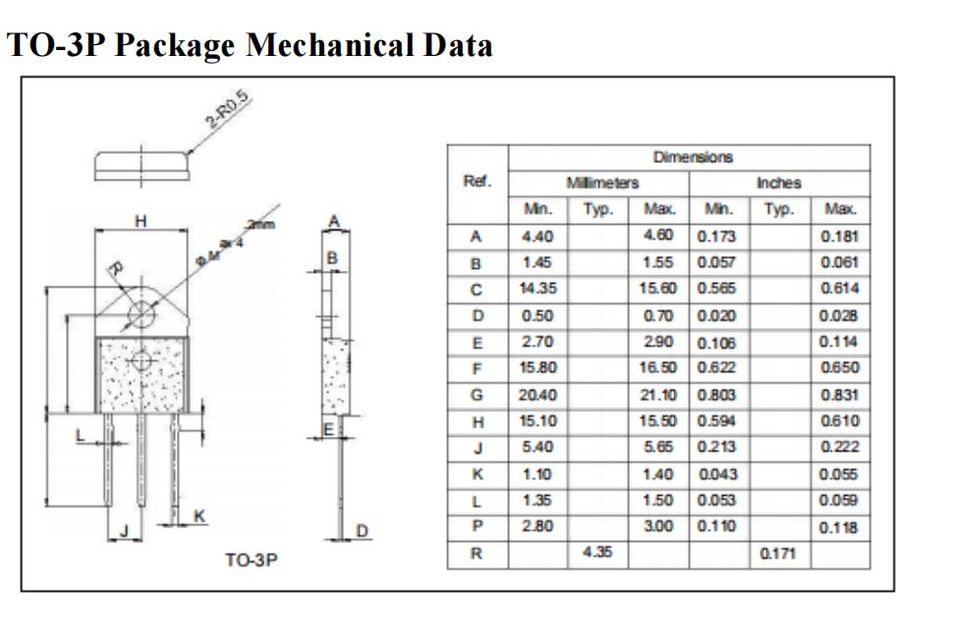

30A 600V TRIAC YZPST-BTA30-600V

DESCRIPTION:

The BTA30 triac series is suitable to fit all models of

control Found in applications such as motor

control ,industrial and domestic lighting ,heating and

static switching , motor speed controllers,…Thanks to

their clip assembly technique, they provide a superior

performance in surge current handling capabilities

By using an internal ceramic pad, the BTA series

provides voltage insulated tab (rated at 2500VRMS)

complying with UL standards.

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Value	Unit
Storage junction temperature range	Tstg	-40 ~175	℃
Operating junction temperature range	Tj	-40~150	℃
Repetitive peak off-state voltage (T =25℃)	VDRM	600	V
Repetitive peak reverse voltage (T =25℃)	VRRM	600	V
Non repetitive surge peak Off-state voltage	VDSM	VDRM +100	V
Non repetitive peak reverse voltage	VRSM	VRRM +100	V
RMS on-state current	IT(RMS)	30	A
Non repetitive surge peak on-state current (full cycle, F=50Hz)	ITSM	300	A
I2t value for fusing (tp=10ms)	I2t	378	A2S
Critical rate of rise of on-state current (I =2×IGT)	dI/dt	50	A/μS
Peak gate current	IGM	4	A
Average gate power dissipation	PG(AV)	1	W

4 Quadrants

Symbol	Test Condition	Quadrant		Value	Unit
IGT		Ⅰ Ⅱ Ⅲ	MAX.	20	mA
VGT	V =12V R =33Ω	Ⅰ Ⅱ Ⅲ	MAX.	1.3	V
VGD	VD=VDRM Tj=125℃ R=3.3KΩ	Ⅰ Ⅱ Ⅲ	MIN.	0.2	V
IL	IG=1.2IGT	Ⅰ Ⅲ	MAX.	50	mA
IL	IG=1.2IGT	Ⅱ	MAX.	50	mA
IH	IT=100mA		MAX.	40	mA
dV/dt	VD=2/3VDRM Gate Open Tj=125℃		MIN.	400	V/μs
