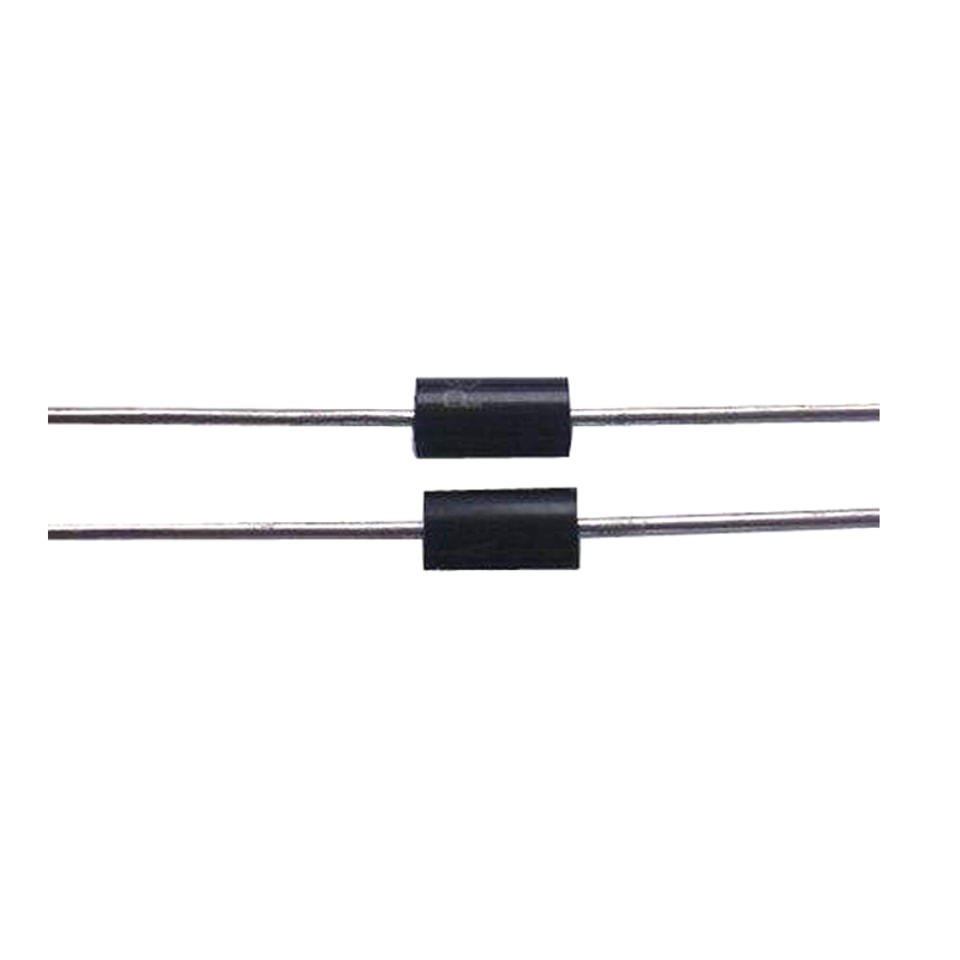

P/N: YZPST-2CL2FR High voltage rectifier diode
2CL2FR High voltage rectifier diodes Series adopts high reliable mesa structure and diffusion craft work, epoxy resin molded in a compact structure.
Feature
Avalanche characteristic
More sizes to choose
Epoxy resin molded in vacuum ,have anti-corrosion in the surface
Tj: -40℃—+150℃
Application
High voltage generator
High voltage doubling equipment
General purpose high voltage rectifier,
High voltage multiplier assembly
Maximum ratings
Item | Symbol | Unit | Conditions | Unit | |
Repetitive Peak Reverse Voltage | VRRM | KV | Ta=25C IR=0.02μA | 35.0 | |
Average Forward Current |
IF(AV) | A | 50Hz Half-sine Wave , Resistance load @Tbreak=50C |
100 | |
Reverse Recovery Time | trr | S | IF=2mA IR=4mA IRR=1mA | 100 | |
Surge Forward Current | IFSM | A | 0.01S @ Half-Sine wave 50Hz | 15 | |
Operating Temperature | Ambient | Ta | C |
| -40~ +125 |
Storage Temperature | T stg | C |
| -40~ +125 | |
Electrical characteristics (Ta=25C unless otherwise specified )
| Forward Peak Voltage | VFM | V | @ Ta=25C IF=0. 1A | ≥50 |
| Peak Reverse Current | IRRM1 | A | @ Ta=25C VRM=VRRM | 2.0max |
| IRRM2 | A | @ Ta=100C VRM=VRRM | 20max |

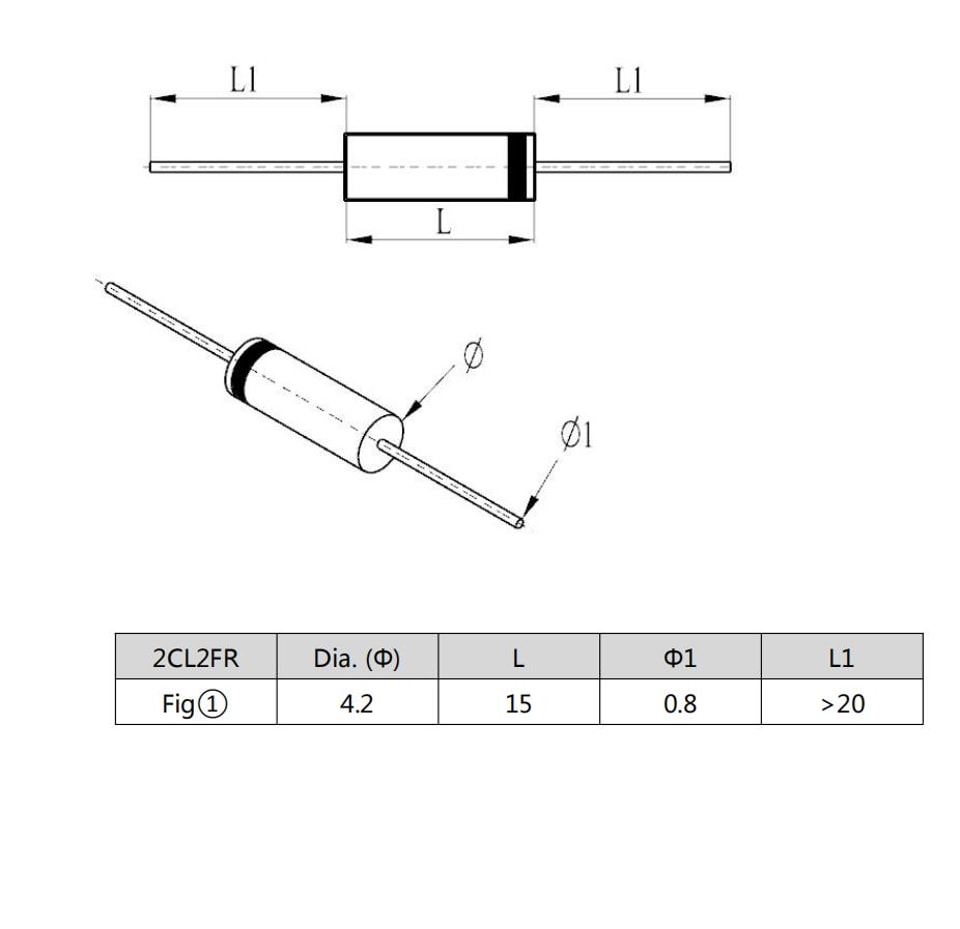

Dimensions( Unit: mm)
For more information about YZPST-2CL2FR please download the PDF file above named "YZPST-2CL2FR-P526 "
