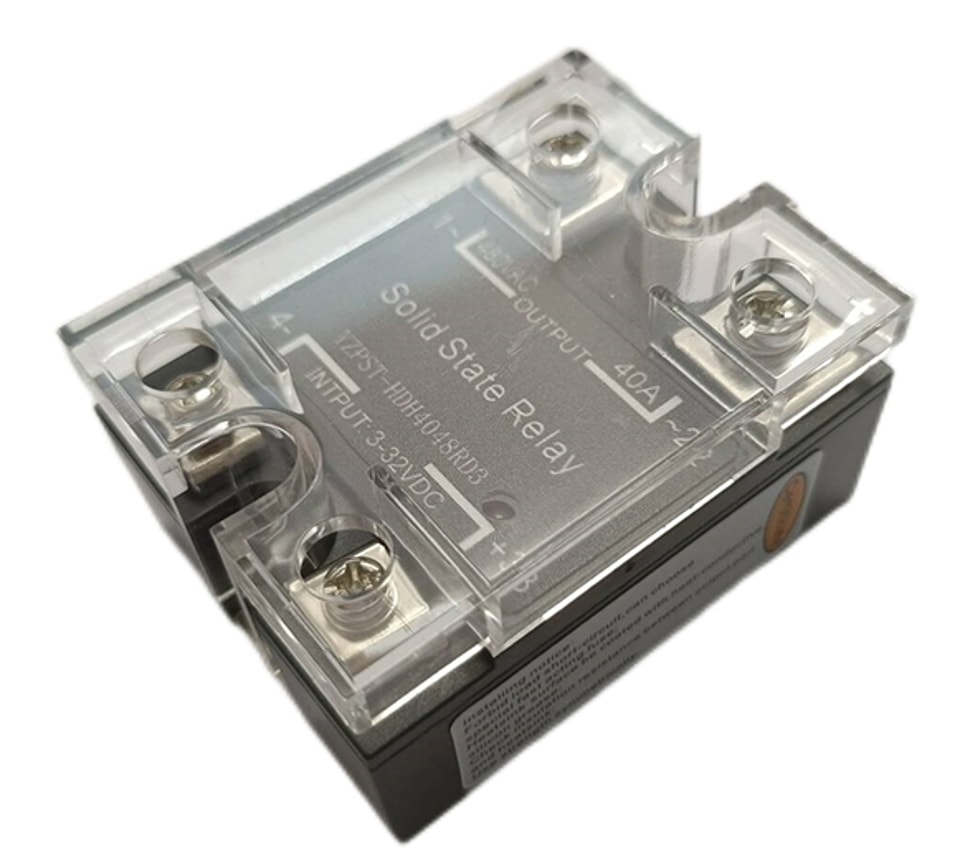

Solid State Relay
P/N:YZPST-HDH4048RD3
PRODUCT FEATURES
Rating Load Current 40A @48-480 VAC
SCR output for heavy industrial loads
Zero Voltage or instantaneous turn-on outputs
Low Forward Voltage
DC control

ELECTRICAL CHARACTERISTICS TC=25°C unless otherwise specified
Parameter | Test Conditions | Values | Unit |
Control Voltage | DC | 3-32 | V |
Operating Voltage | AC (47-63Hz) | 48-480 | V |
Rated Load Current |
| 40 | A |
Maximum Off-State Leakage Current | @Rated Voltage | 2 | mA |
Maximum On-State Voltage Drop | @Rated Current | 1.5 | V |
Maximum Off state time |
| 10 | ms |
Ambient Temperature |
| -30~+70 | ℃ |
