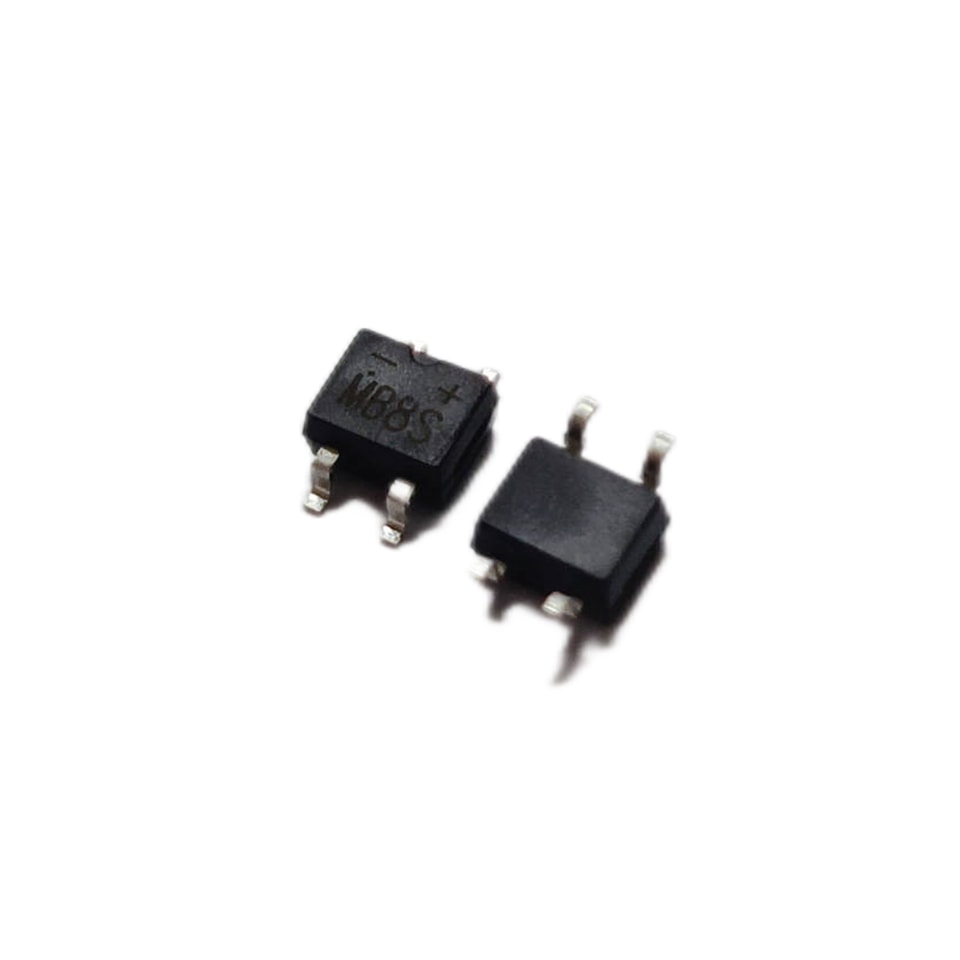

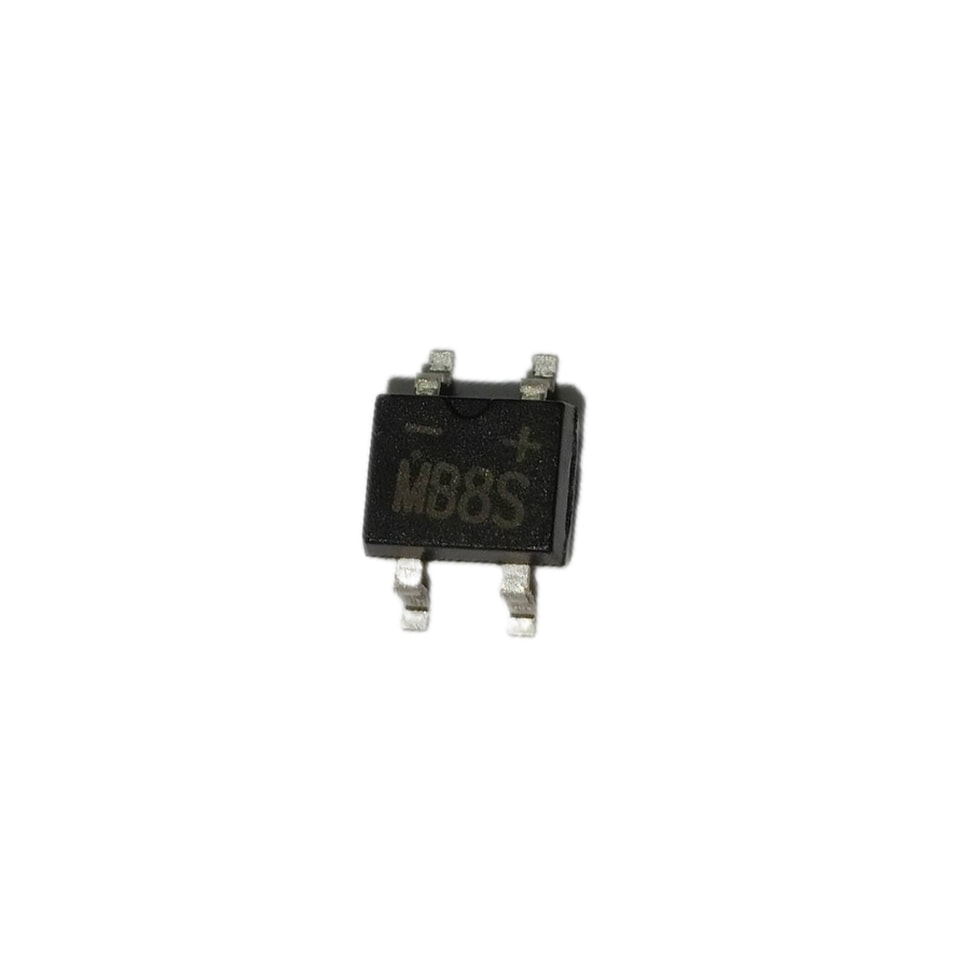

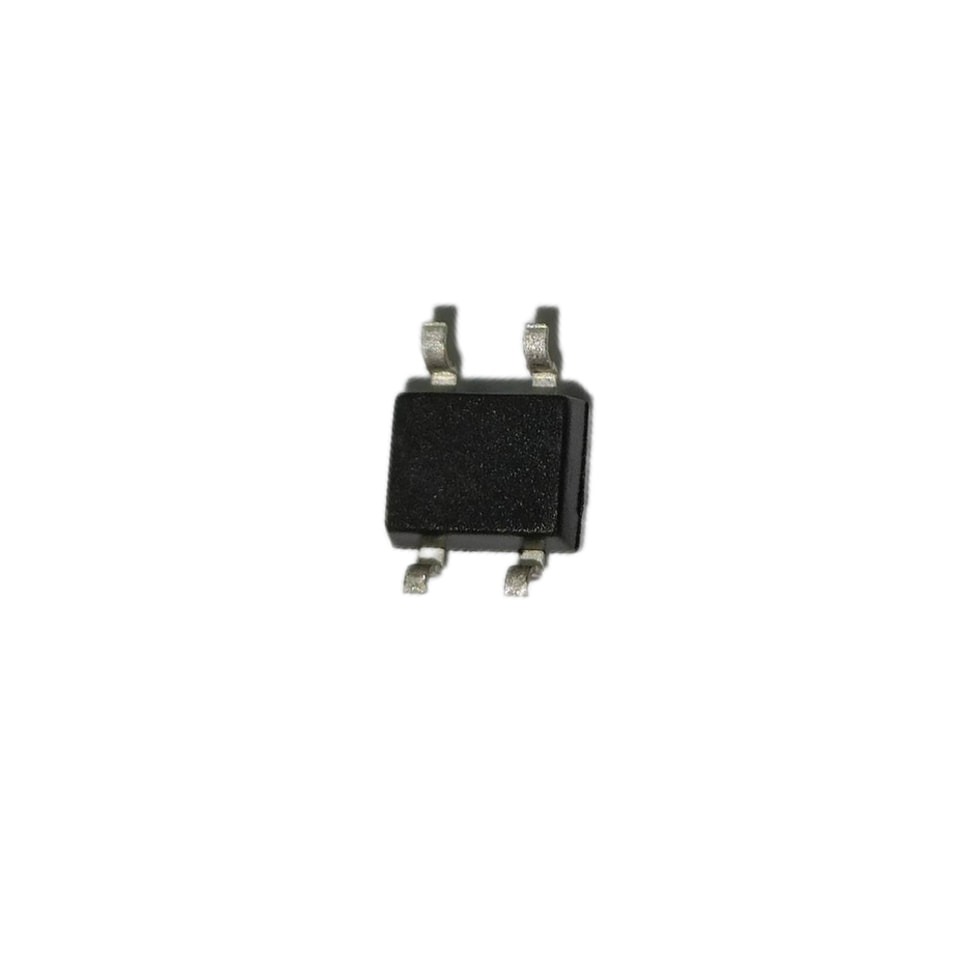

YZPST-MB8S
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
BRIDGE RECTIFIER
YZPST-MB05S-MB10S
FEATURES
Low Reverse voltage leakage current
Glass Passivated Die Construction
Low Forward Voltage Drop
High forward surge current capability
Small Surface Mount device
MECHANICAL DATA

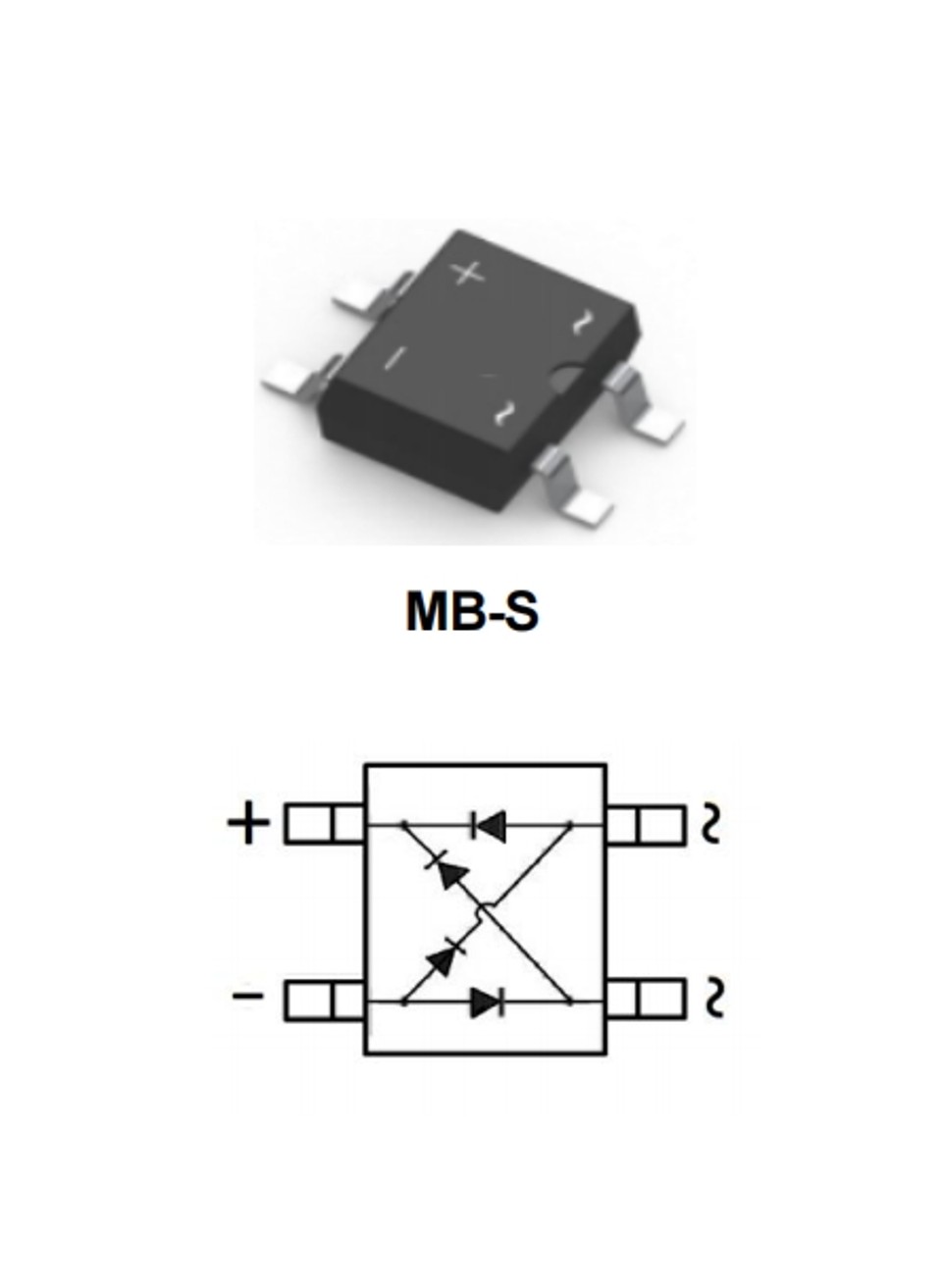

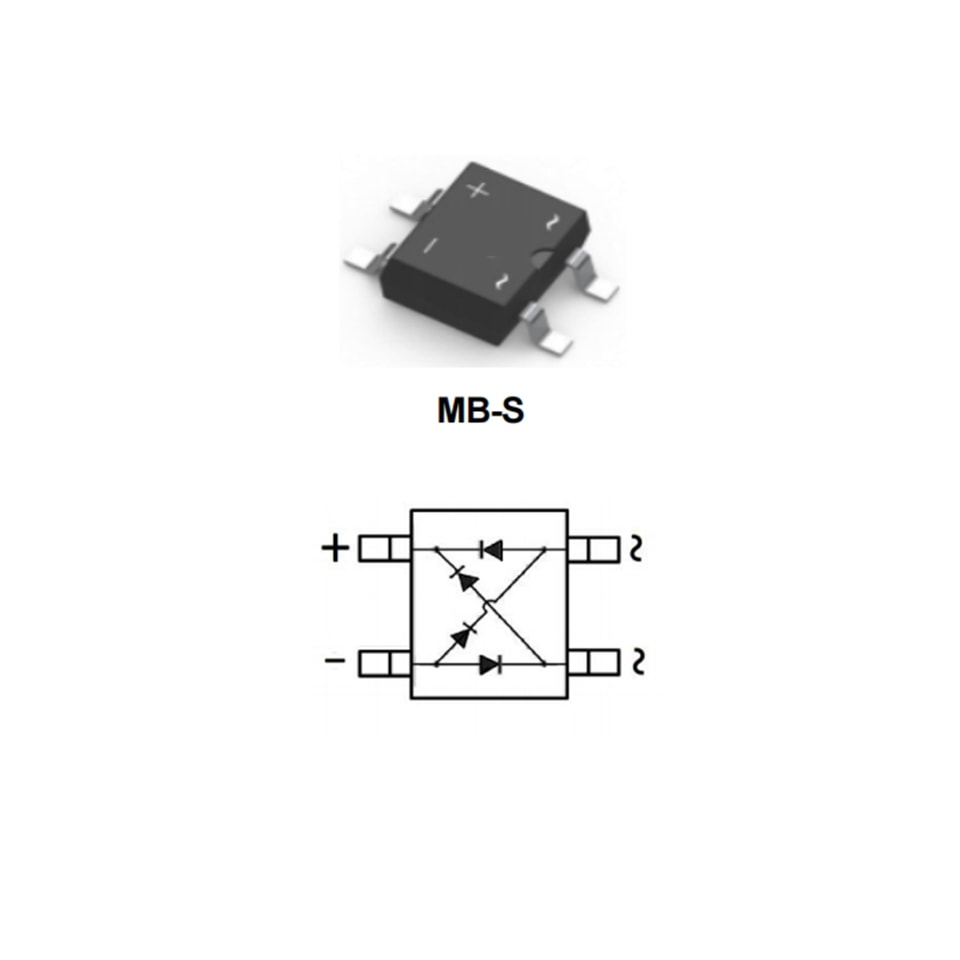

Case: MB-S
Case Material: Molded Plastic. UL flammability
Classification Rating: 94V-0
Weight: 0.22 grams (approximate)
MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
Parameter | Symbol | MB05S | MB1S | MB2S | MB4S | MB6S | MB8S | MB10S | Unit |
Repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
DC Reverse Voltage | VR | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
RMS Reverse Voltage | V RMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
Mean rectifying current | IF | 0.5/0.8 | A | ||||||
Non-Repetitive Peak Forward Surge Current @ t = 8.3 ms | IFSM | 30 | A | ||||||
Thermal Resistance From Junction To Ambient | RθJA | 90 | °C/W | ||||||
Junction Temperature | TJ | -55 ~+150 | °C | ||||||
Storage Temperature | TSTG | -55 ~+150 | °C | ||||||
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified)
Parameter | Symbol | Min | Max | Unit | Conditions |
Forward voltage | VF |
| 1.0 | V | IF=0.5A |
Forward voltage | VF |
| 1.1 | V | IF=0.8A |
Reverse current T=25°C | IR |
| 5 | uA | VR=VRRM |
Reverse current T= 125°C | IR |
| 40 | uA | VR=VRRM |
Junction capacitance | CJ |
| 13 | pF | V=4VDC ,f=1MH |
