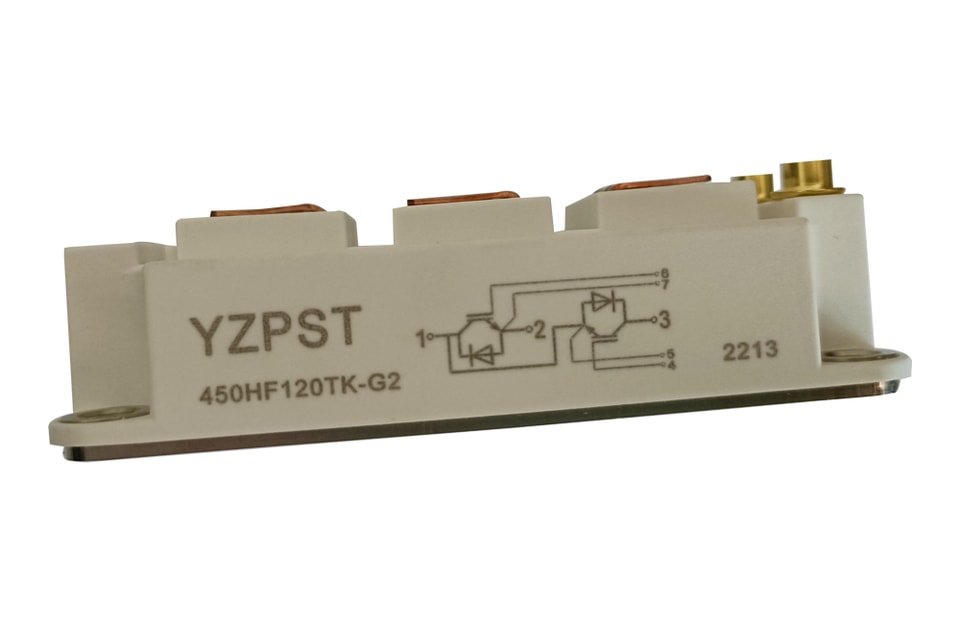

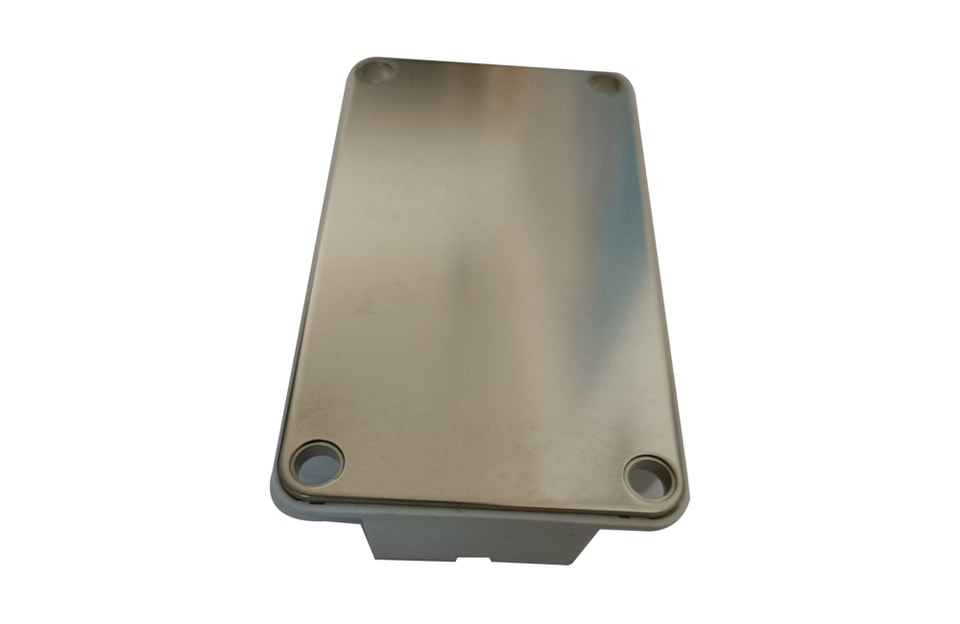

IGBT Moudle YZPST-450HF120TK-G2
FEATURES
High short circuit capability, self limiting short circuit current
IGBT CHIP(Trench+ Field Stop technology)
VCE(sat) with positive temperature coefficient Fast switching, Low switching losses
Free wheeling diodes with fast and soft reverse recovery
APPLICATIONS
High frequency switching application
Welding converters
Motion/servo control
UPS systems
IGBT CHIP(Trench+ Field Stop technology)
VCE(sat) with positive temperature coefficient Fast switching, Low switching losses
Free wheeling diodes with fast and soft reverse recovery
Welding converters
Motion/servo control
UPS systems
ABSOLUTE MAXIMUM RATINGS TC=25°C unless otherwise specified
Symbol | Parameter | Test Conditions | Values | Unit |
IGBT | ||||
VCES | Collector - Emitter Voltage | TVj=25°C | 1200 | V |
VGES | Gate - Emitter Voltage |
| ±20 | V |
IC |
DC Collector Current | TC=25°C | 675 | A |
TC=80°C | 450 | A | ||
ICM | Repetitive Peak Collector Current | tp=1ms | 900 | A |
Ptot | Power Dissipation Per IGBT |
| 2016 | W |
Diode | ||||
VRRM | Repetitive Reverse Voltage | TVj=25°C | 1200 | V |
IF(AV) |
Average Forward Current | TC=25°C | 675 | A |
TC=80°C | 450 | A | ||
IFRM | Repetitive Peak Forward Current | tp=1ms | 900 | A |
MODULE CHARACTERISTICS TC=25°C unless otherwise specified
Symbol | Parameter | Test Conditions | Min. | Typ. | Max. | Unit |
TVj max | Max. Junction Temperature |
|
|
| 175 | °C |
TVj op | Operating Temperature |
| -40 |
| 150 | °C |
Tstg | Storage Temperature |
| -40 |
| 125 | °C |
Visol | Insulation Test Voltage | AC, t=1min | 3000 | V | ||
Torque | To-Sink | Recommended M6 | 3 |
| 5 | N·m |
Torque | To-Terminal | Recommended M6 | 2.5 |
| 5 | N·m |
Weight |
|
|
| 340 |
| g |
CIRCUIT DIAGRAM
PACKAGE OUTLINE
For more information about YZPST-450HF120TK-G2please download the PDF file above named " YZPST-450HF120TK-G2 "
