YZPST-2SC5200/YZPST-2SA1943
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
NPN type transistor 2SC5200
1.Outline
2SC5200 is NPN type transistor, complementary to 2SA1943, used in audio power amplification and power conversion circuits.

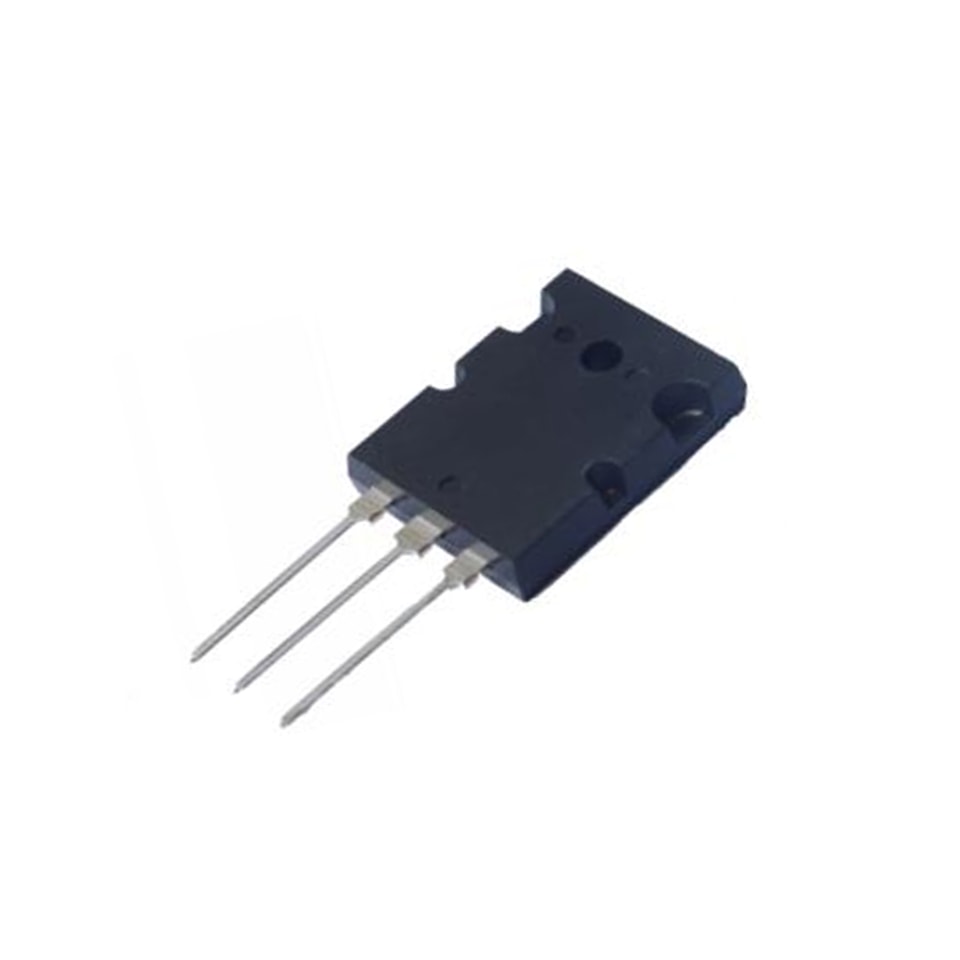

Packaging form: TO-3PL
- Electrical characteristics
2.1 Limit values
Sign | Rated Value | unit |
VCEO | 230 | V |
VCBO | 230 | V |
VEBO | 5 | V |
Ic | 15 | A |
IB | 1.5 | A |
Ptot | 150 | W |
Tj | 150 | ℃ |
Tstg | -55- 150 | ℃ |
2.2 Electrical parameters
| Specification value |
| |||
Sign | Test conditions | Min | Typical | Max | unit |
ICBO | VCB= 230 V ，IE = 0 |
|
| 5 | μA |
IEBO | VEB= 5 V ，IC = 0 |
|
| 5 | μA |
VCBO | IC= 1mA | 230 |
|
| V |
VCEO | IC= 1mA | 230 |
|
| V |
VEBO | IB= 1mA | 5 |
|
| V |
hFE（1） | IC= 1A,VCE= 5V | 55 |
| 160 |
|
hFE（2） | IC= 7A,VCE= 5V | 35 |
|
|
|
VCE sat | IC= 5A,IB= 0.5 A |
|
| 1.5 | V |
VBE sat | IC= 5A,IB= 0.5A |
|
| 2 | V |

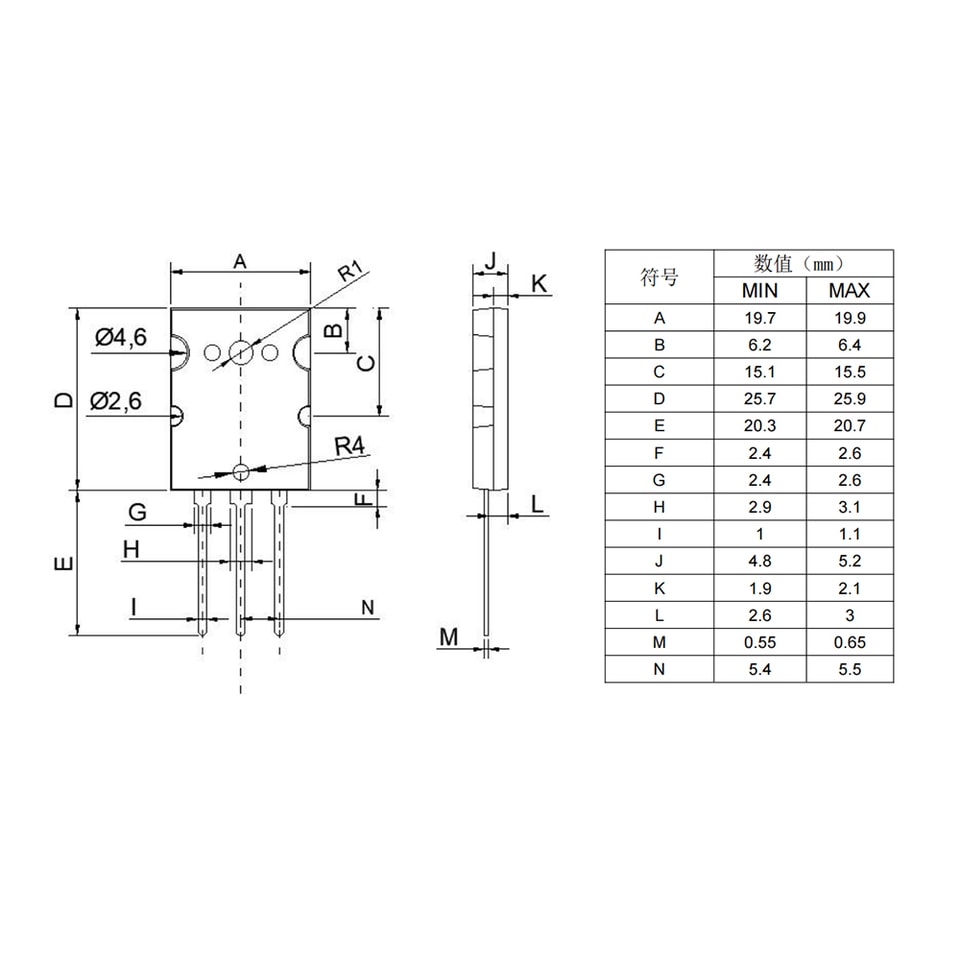

3.Size
NPN type transistor 2SA1943
1.Outline
2SA1943 is NPN type transistor, complementary to 2SC5200, used in audio power amplification and power conversion circuits.

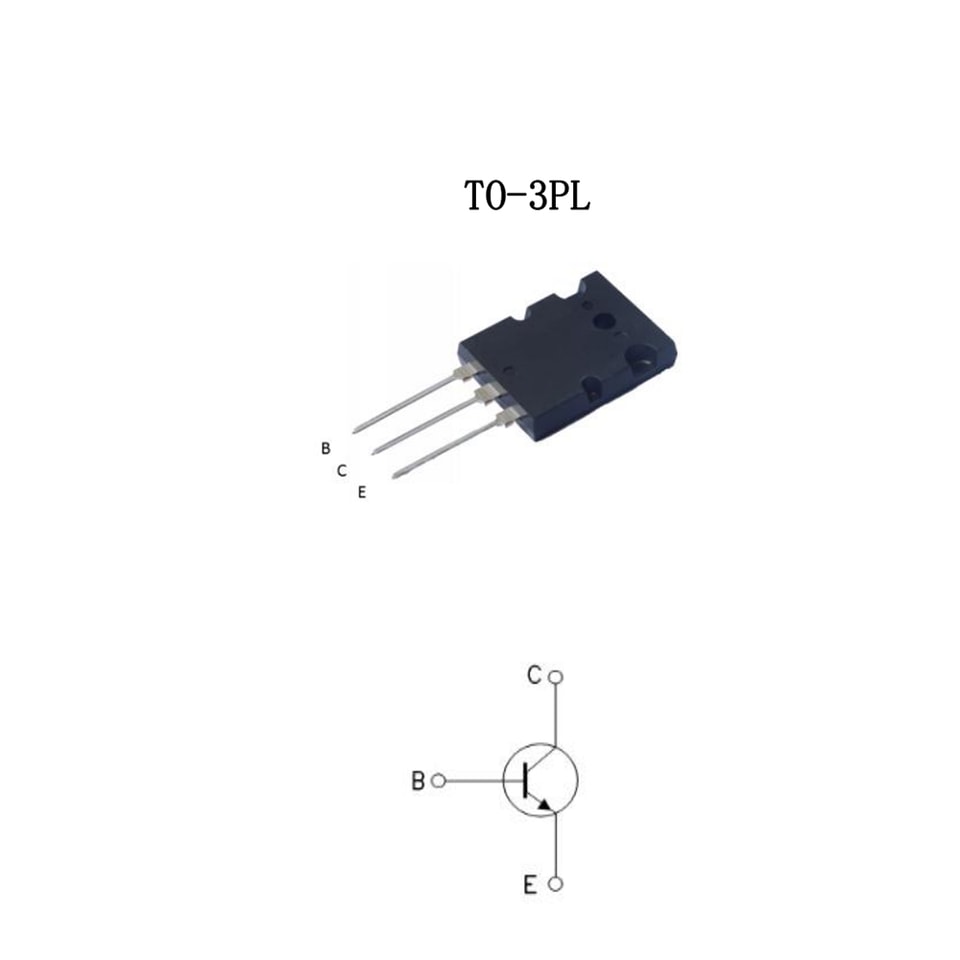

Packaging form: TO-3PL
- Electrical characteristics
2.1 Limit values
Sign | Rated Value | unit |
VCEO | -230 | V |
VCBO | -230 | V |
VEBO | -5 | V |
Ic | -15 | A |
IB | -1.5 |
|
Ptot | 150 | W |
Tj | 150 | ℃ |
Tstg | -55- 150 | ℃ |
2.2 Electrical parameters
| Specification value |
| |||
Sign | Test conditions | Min | Typical | Max | unit |
ICBO | VCB= -230 V |
|
| -5 | μA |
IEBO | VEB= -5 V |
|
| -5 | μA |
VCBO | IC= - 1mA | -230 |
|
| V |
VCEO | IC= - 1mA | -230 |
|
| V |
VEBO | IB= - 1mA | -5 |
|
| V |
hFE（1） | IC= - 1A,VCE= -5V | 55 |
| 160 |
|
hFE（2） | IC= -7A,VCE= -5V | 35 |
|
|
|
VCE sat | IC= -5A,IB= -0.5A |
|
| -1.5 | V |
VBE sat | IC= -5A,IB= -0.5A |
|
| -2 | V |

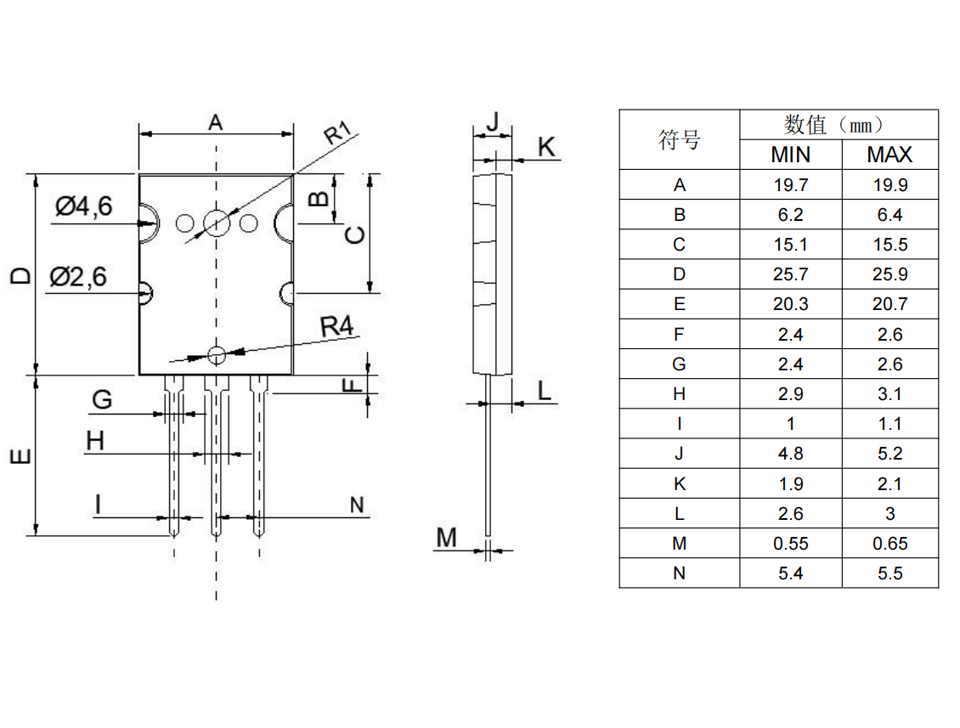

3.Size
For more information about YZPST-2SC5200/YZPST-2SA1943 please download the PDF file above named " YZPST-2SC5200 and YZPST-2SA1943"
