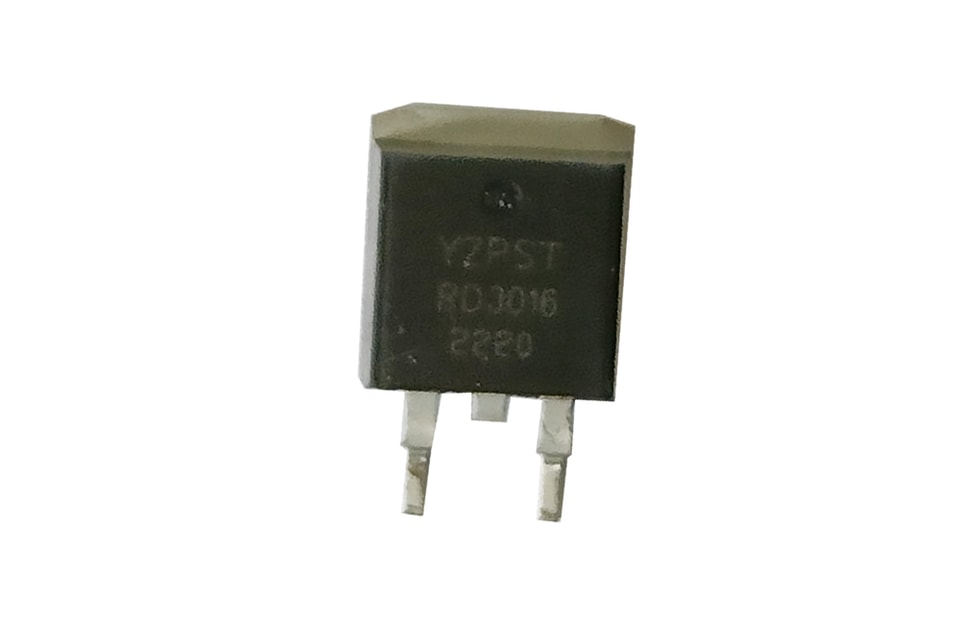

YZPST-ZP3016-RD3016-ZP30A1600V 30A Rectifier Diode
APPLICATIONS:
• Input rectification
•Semiconductors switches and output rectifiers which are available in identical package outlines
ABSOLUTE MAXIMUM RATINGS
Parameter | Symbol | Test Conditions | Value | Unit |
Storage junction temperature range | Tstg |
| -55 ~ 150 | ℃ |
Operating junction temperature range | Tj |
| -55~ 150 | ℃ |
Maximum Repetitive peak reverse voltage | VRRM |
| 1600 | V |
Maximum average forward current | IF(AV) | TC = 105 °C, 180° conduction half sine wave | 30 | A |
Maximum peak one cycle non-repetitive surge current |
IFSM | 10 ms sine pulse, no voltage reapplied |
350 |
A |
I2t value for fusing (tp=10ms) | I2t | 10 ms sine pulse, no voltage reapplied | 612 | A2S |
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)
| Parameter | Symbol | Test Conditions | Value | Unit |
| Maximum forward voltage drop | VFM | IF=30 A | 1.2 | V |
| Maximum reverse leakage current | IRM | TJ = 25 °C | 5 | µA |
| VR = Rated VRRM | ||||
| TJ = 150 °C | 1 | mA | ||
| VR = Rated VRRM |
Thermal Resistances
| Symbol | Parameter | Value | Unit |
| Rth(j-a) | junction to ambient | 45 | ℃/W |
| Rth(j-c) | Junction to case | 0.9 |
Ordering Information Scheme

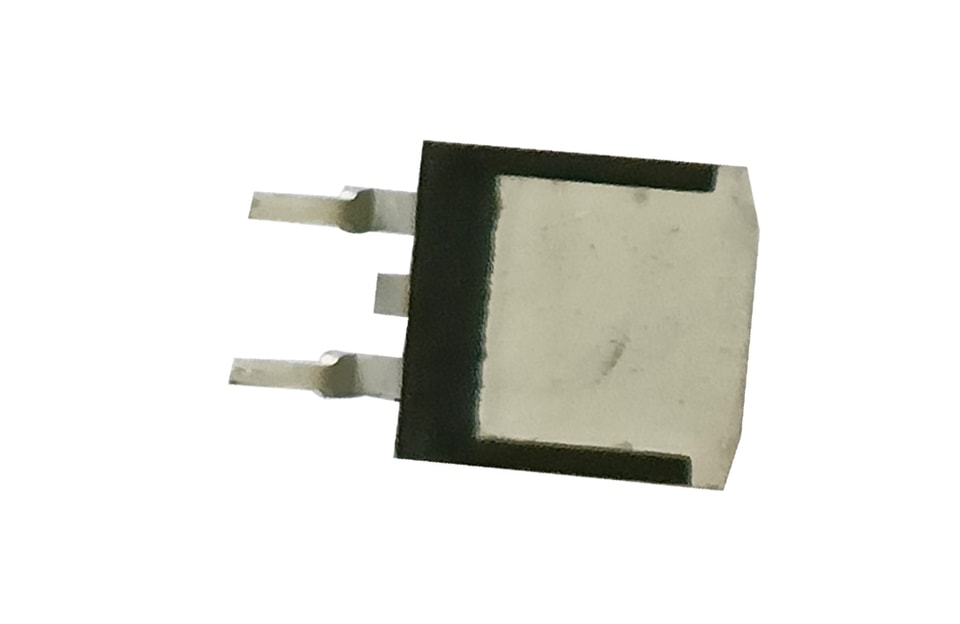

TO-263 Package Mechanical Data
For more information about YZPST-RD3016-TO263 please download the PDF file above named "YZPST-ZP3016--DSI30--08--12--16-RD3016--TO263 "
