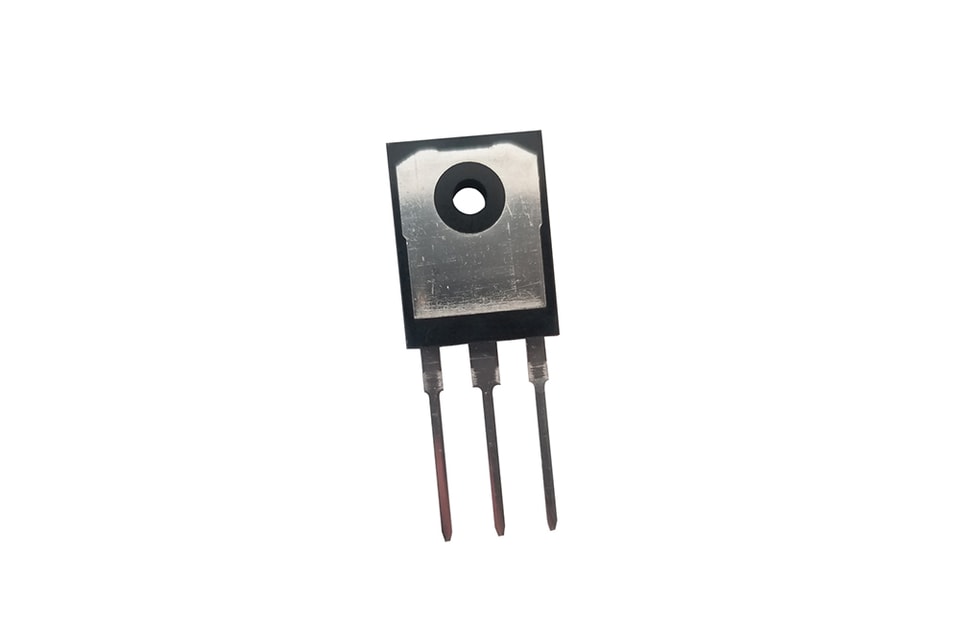

YZPST-SFP2003

Item

Symbol

Data

Unit

Maximal Inverted Repetitive Peak Voltage

VRRM

300

V

*Average Rectified Forward Current (Rated VR-20Khz Square Wave) - 50% duty cycle

IFAV

20

A

Reverse Recovery Time(IF=0.5A IR=1.0A IREC=0.25A)

TRR

≤35

nS

Forward Peak Surge Current(Rated Load 8.3 Half Mssine Wave- According to JEDEC Method)

IFSM

180×2

A

Operating Junction Temperature

T_J

175

℃

Storage Temperature

TSTG

-40～150

℃

Typical Thermal Resistance(per leg)

Package=TO-247AB

RθJC

0.5

℃/W

Item

Test Condition

Value(min)

Value(typ)

Value(max)

Unit

V_B

TJ =25℃

IR=100uA

300

---

---

V

I_R

TJ =25℃

VR=300V

---

---

0.01

mA

TJ =125℃

VR=300V

---

---

0.10

mA

V_F

TJ =25℃

IF=10A (IFAV=10A×2)

---

1

1.1

V

TJ =125℃

---

---

1

V
