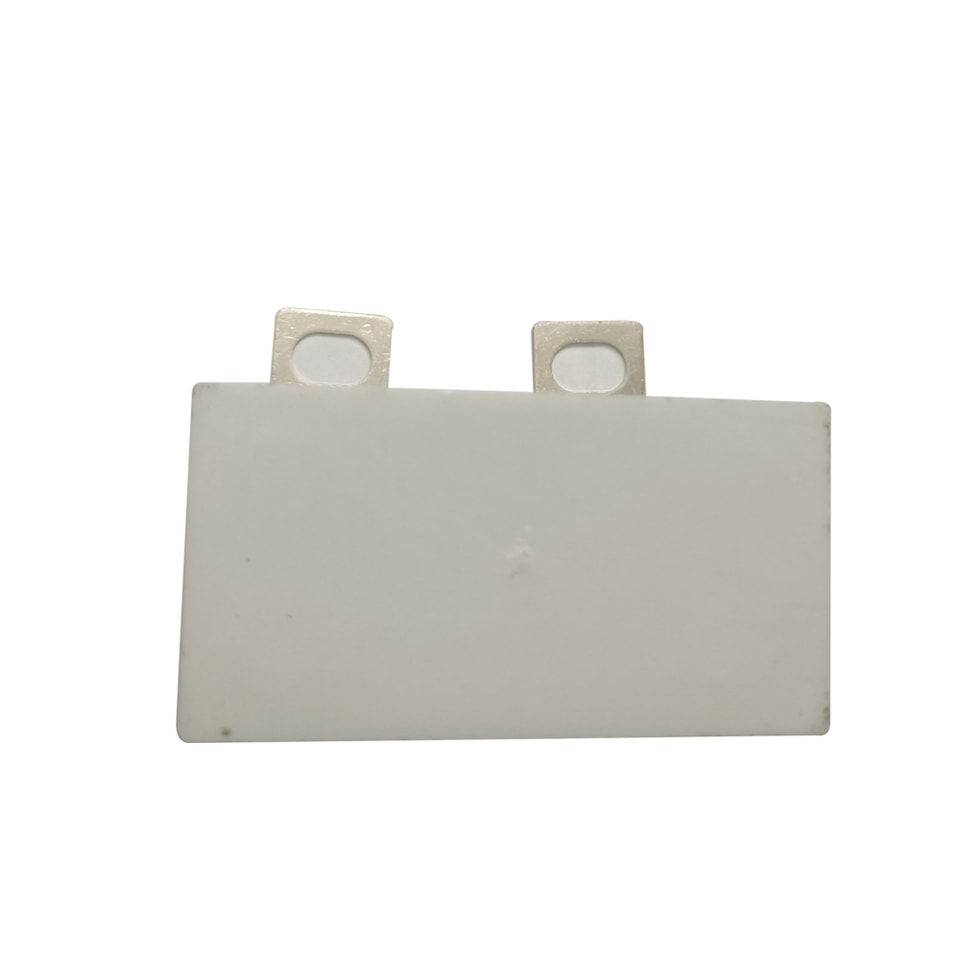

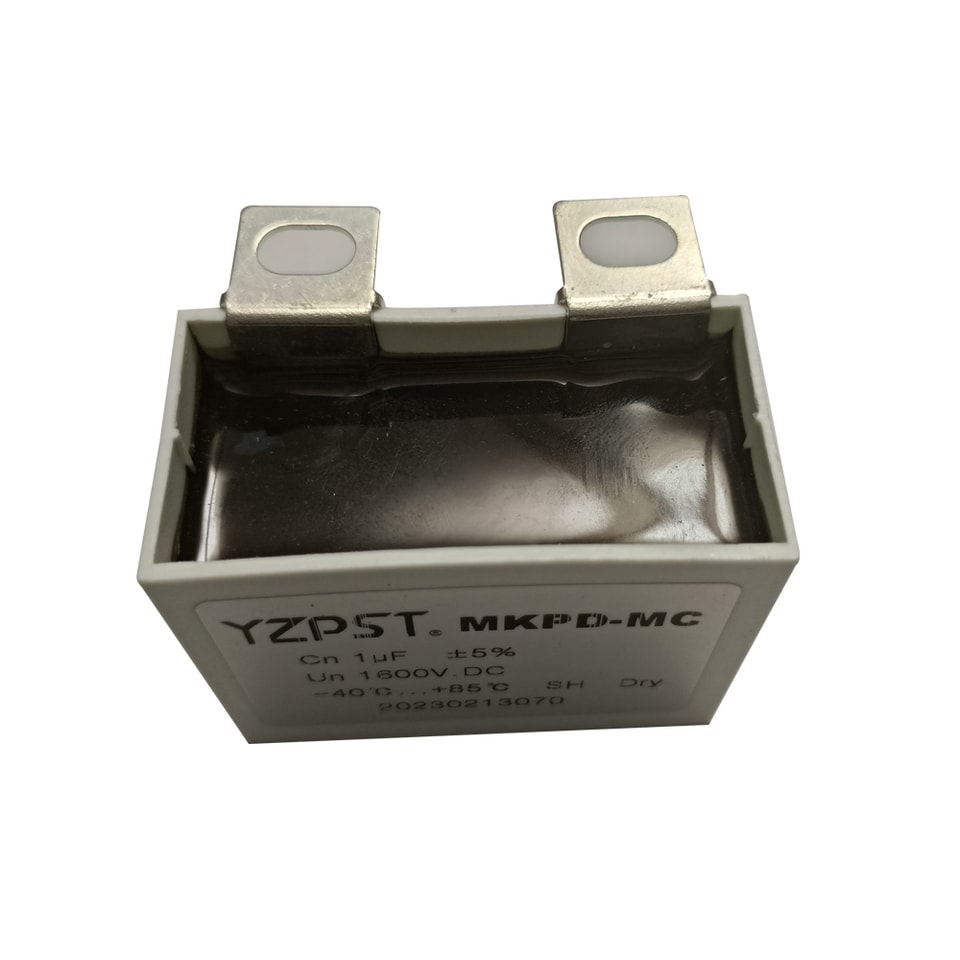

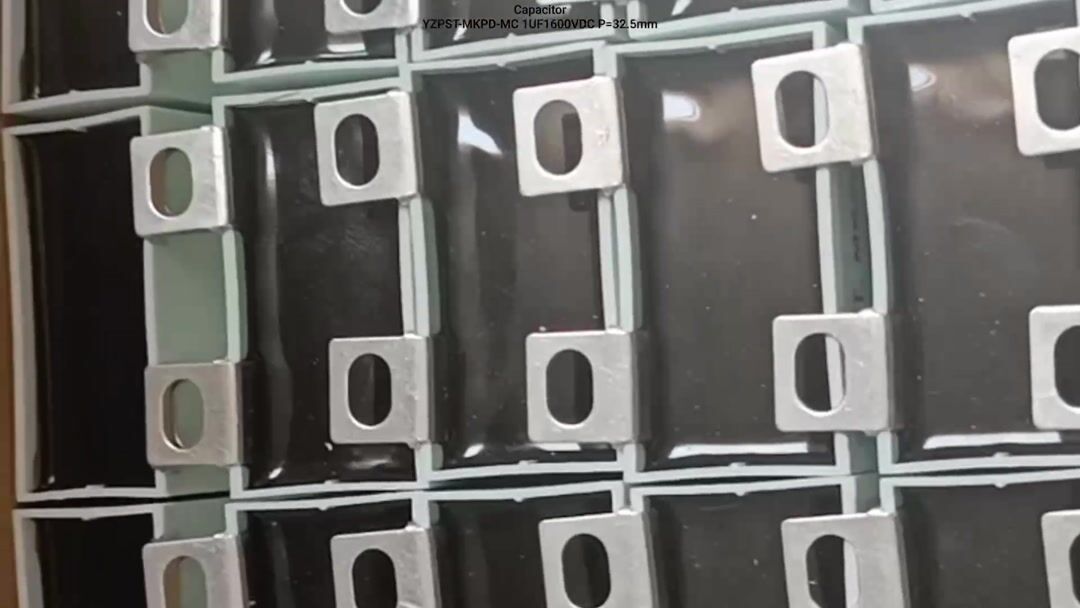

1uF IGBT buffer absorption capacitor P=32.5mm

IGBT buffer absorption capacitor

Rated capacitance ( CN )：1μF

Rated voltage(UN )：1600V.dc

Surge voltage(US )：2400V t<100ms

Specifications
Reference standards	IEC 61071(GB/T 17702)
Rated capacitance ( CN )	1μF
Capacitance tolerance	± 5%(J )
Rated voltage(UN )	1600V.dc
Surge voltage(US )	2400V t<100ms
	1 . 1UN 8h/day
	1 . 15UN 30min/day
Over voltage	1 . 2UN 5min/day
	1 . 3UN 1min/day
Max . current(Im a x )	25A(40°C)
Max . peak current(Ip ea k )	1 . 1kA
Dielectric dissipation factor(tanδ0 )	2×10- 4
Series resistance(Rs )	6mΩ(100kHz)
Self- inductance(Ls )	28nH
Expected lifetime	100000h
Failure rate	30 FIT

Test data
Test voltage between terminals(UT-T )	1 . 5UN/10s
Test voltage between terminals to case(UT- C )	4000V.ac/10s
Dissipation factor(tanδ)	≤1×10- 3 (1kHz)
Insulation resistance(@20°C, 100V, 1min)	IR≥15000MΩ(C N ≤0 .33μF)
Insulation resistance(@20°C, 100V, 1min)	IR×CN ≥ 5000s(CN >0 .33 μF)

Environmental data
Operating temperature	-40°C ~ +85°C
Storage temperature	-40°C ~ +85°C
Climatic category	40/85/21
Cooling	Natural cooling
Max . altitude	2000m

Outline drawing
Length(L)	57 . 5mm
Depth(D)	30mm
Height(H)	45mm
Center distance(P)	32 . 5mm

For more information about YZPST-MKPD-MC 1UF1600VDC please download the PDF file above named " YZPST-MKPS-P 1μF 1600V(Type-C P=32.5) "
