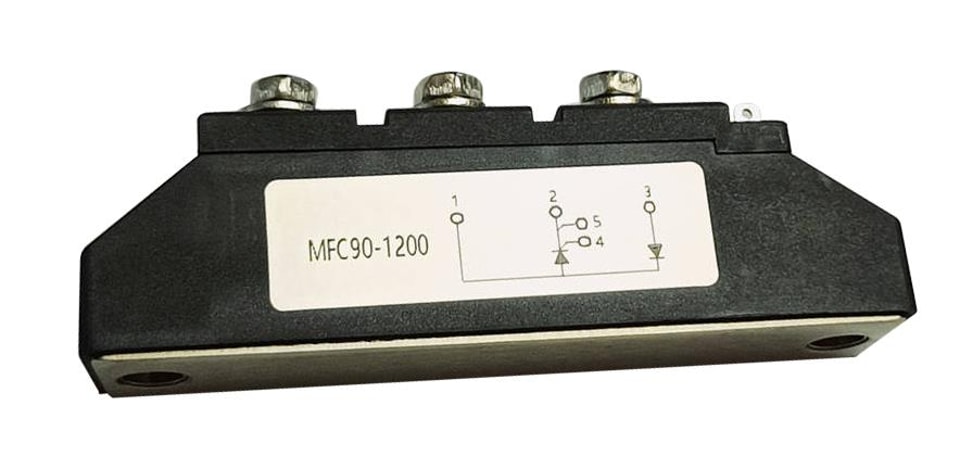

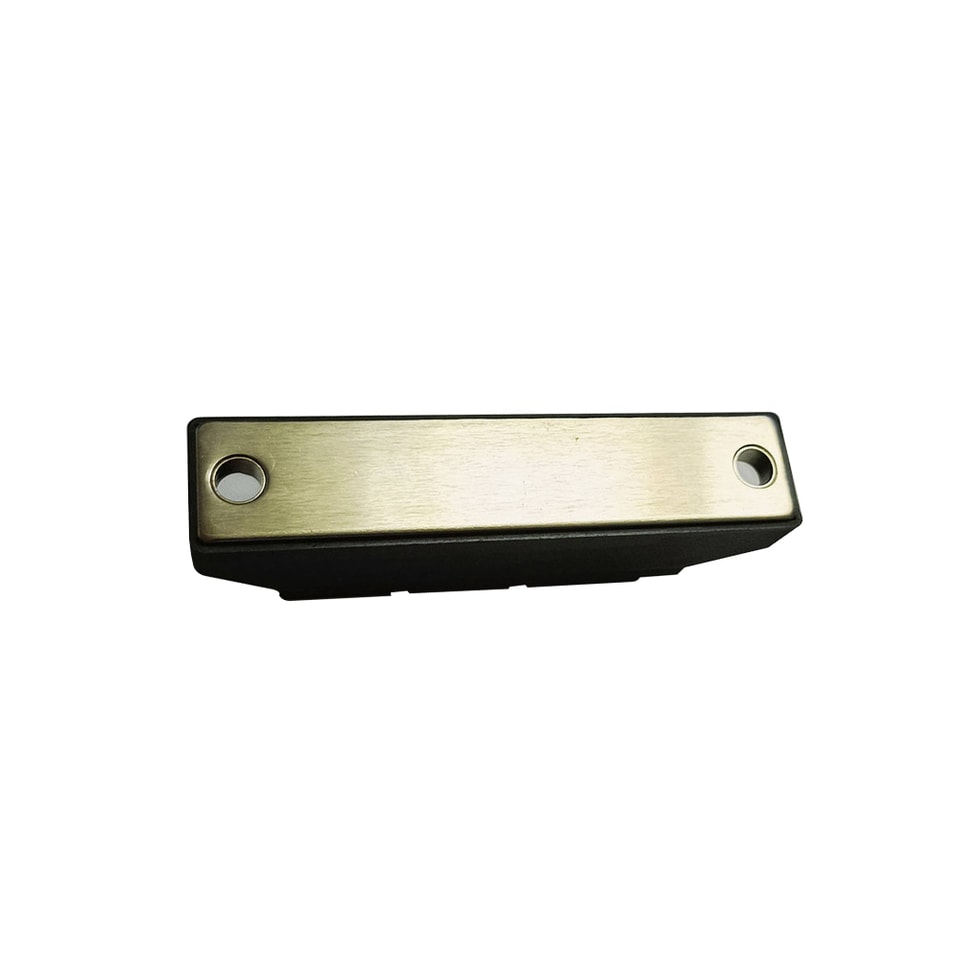

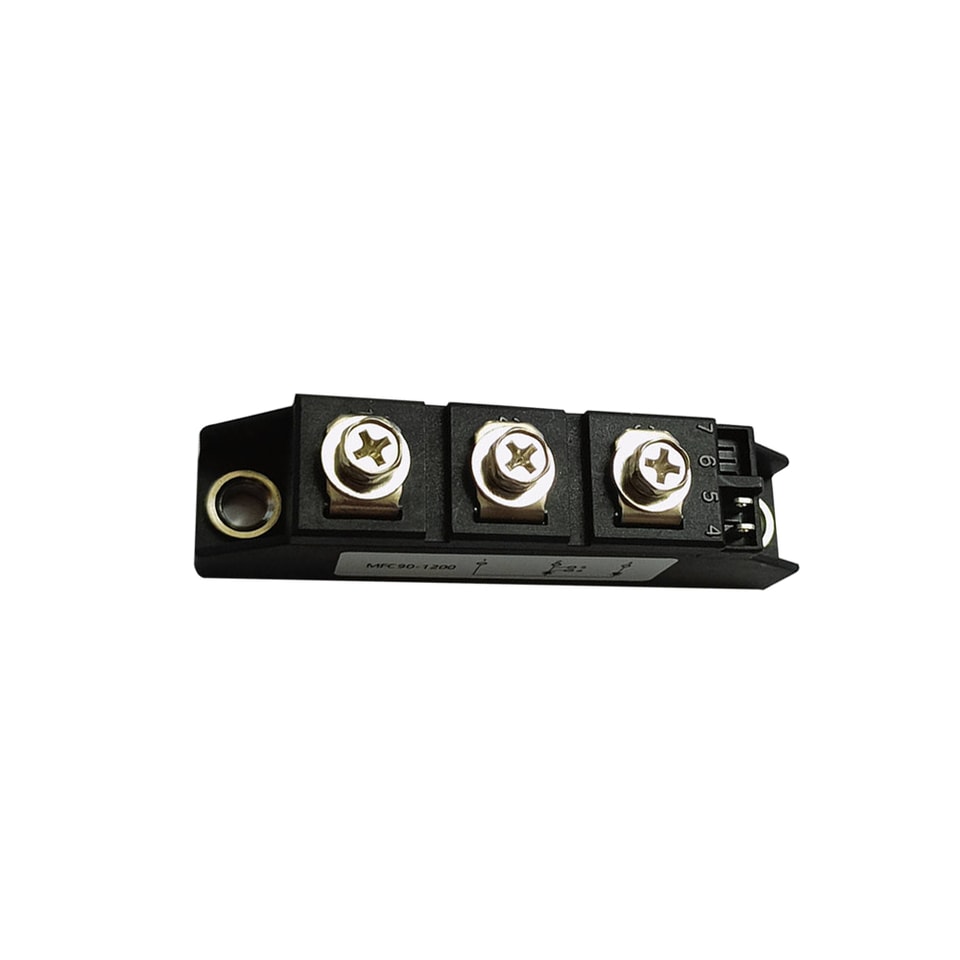

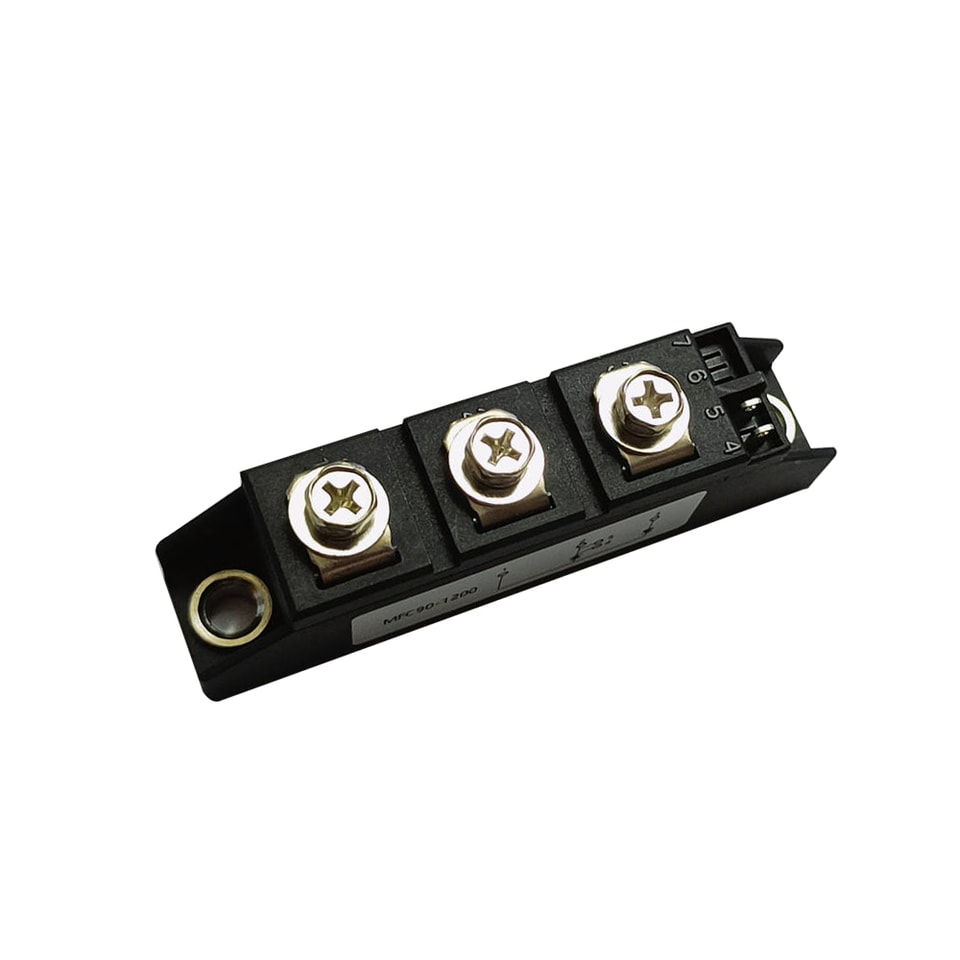

YZPST-MFC90-1200 diode module
Product summary and primary technical information will be loaded from the product database.
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
YZPST-MFC90-1200
Standard voltage 1200V MFC90-1200 diode module
Features
Standard voltage
Electrically isolated base plate
High surge capability
Hard soldered joints for high reliability
Typical Applications
DC motor control(e.g. for machine tools)
AC motor soft starters
Temperature control(e.g. for ovens,chemical processes)
Professional light dimming(studios,theaters)

Maximum Ratings
Symbol | Condition | Ratings | Unit |
IT(AV) | Single phase ,half wave ,180° conduction , Tc:85℃ | 90 | A |
ITSM | Tj=25℃/Tj=125℃ | 2000/1750 | A |
I2t | Tj=25℃/Tj=125℃ | 20000/15000 | A2 S |
(Di/DT)cr | Tj=125℃ | 100 | A/us |
Viso | A.C.1min | 2500 | V |
Tj |
| -40~+125 | ℃ |
Tstg |
| -40~+125 | ℃ |
W |
| 100 | g |
Electrical Charaterisistics
Symbol | Condition | Ratings | Unit |
VDRM/VRRM |
| 1200/1200 | V |
IDRM | AtVDRM ,Single phase ,half wave ,Tj=125℃ | 20 | mA |
IRRM | AtVDRM ,Single phase ,half wave ,Tj=125℃ | 20 | mA |
VTM | On-State Current 300A ,Tj=25℃ | 1.75 | V |
IGT/VGT | Tj=25℃, IT=1A ,VD=6V | 150/2.5 | mA/V |
VGD | Tj=125℃, VD=1/2VDRM | 0.25 | V |
DV/DT | Tj=125℃, VD=2/3VDRM, | 500 | V/us |
IH | Tj=25℃ | 200(max) | mA |
IL | Tj=25℃ | 400(max) | mA |
Rth(j-c) | Per module ,sin180 | 0.15 | ℃/W |

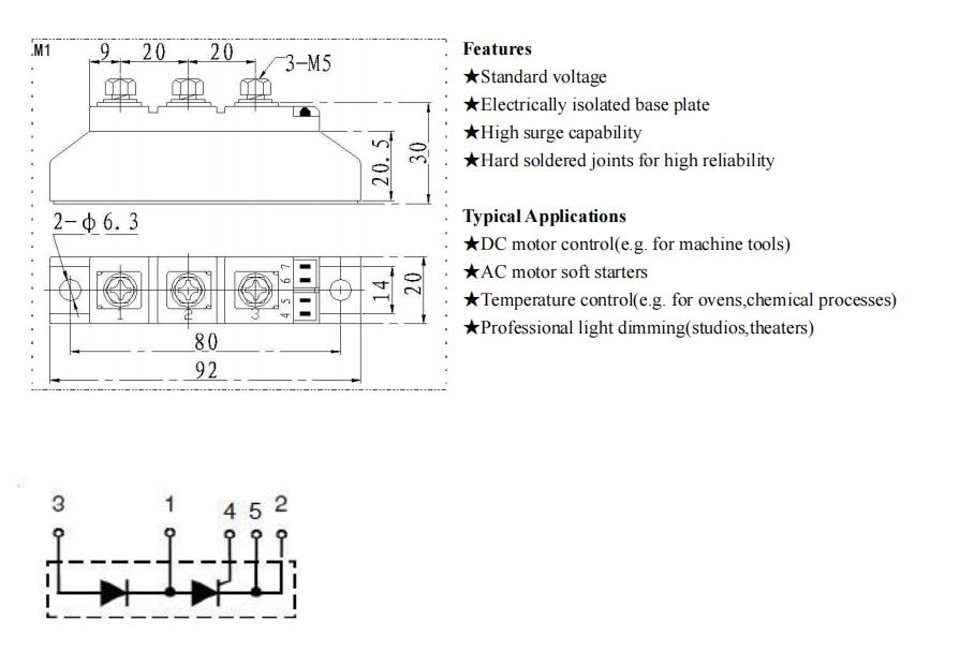

Case Outline And Dimensions

Related products
From a part number to a complete power requirement.
Send us the part number, electrical target and application context.
