POWER COMPONENT
YZPST-SKD82-18
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files

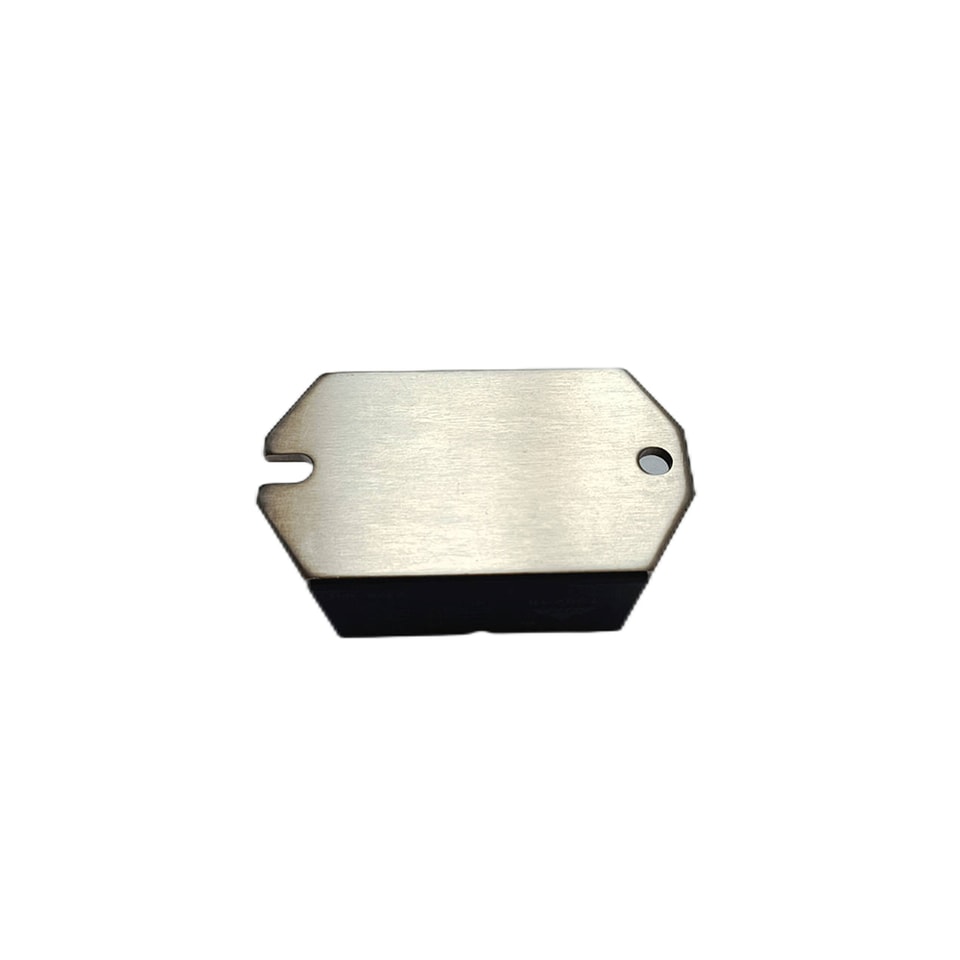

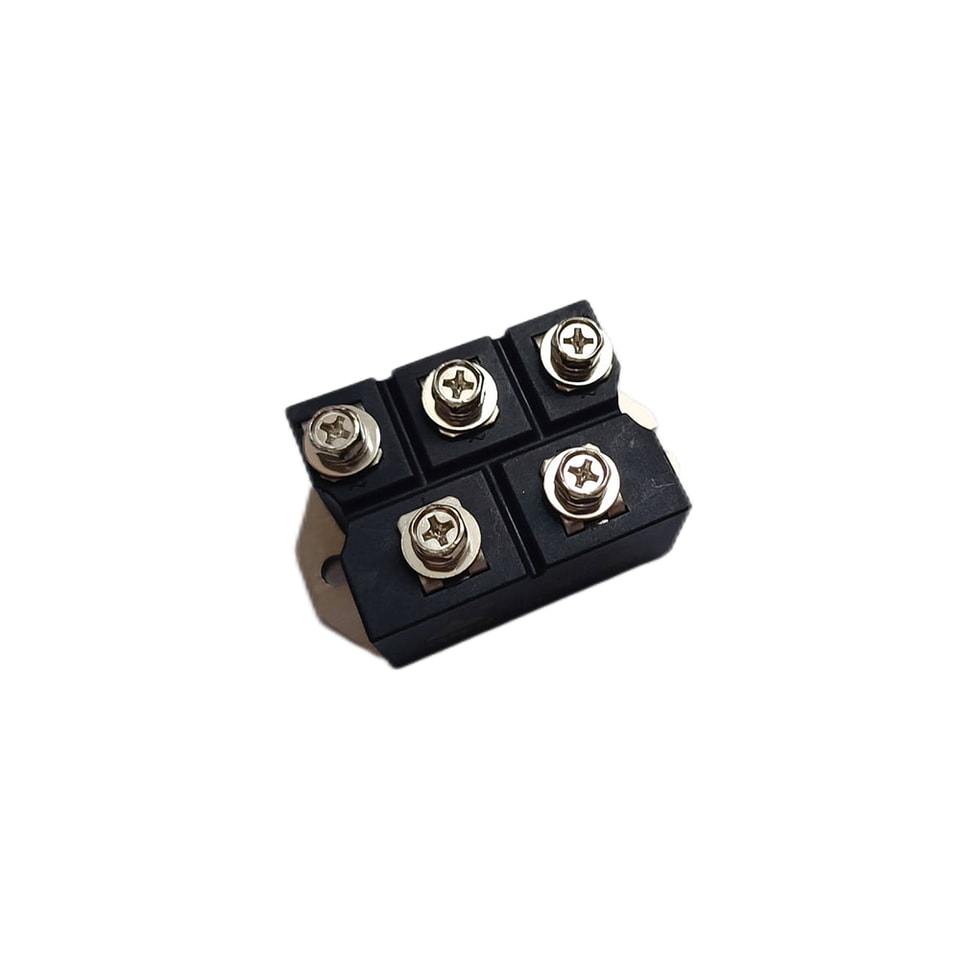

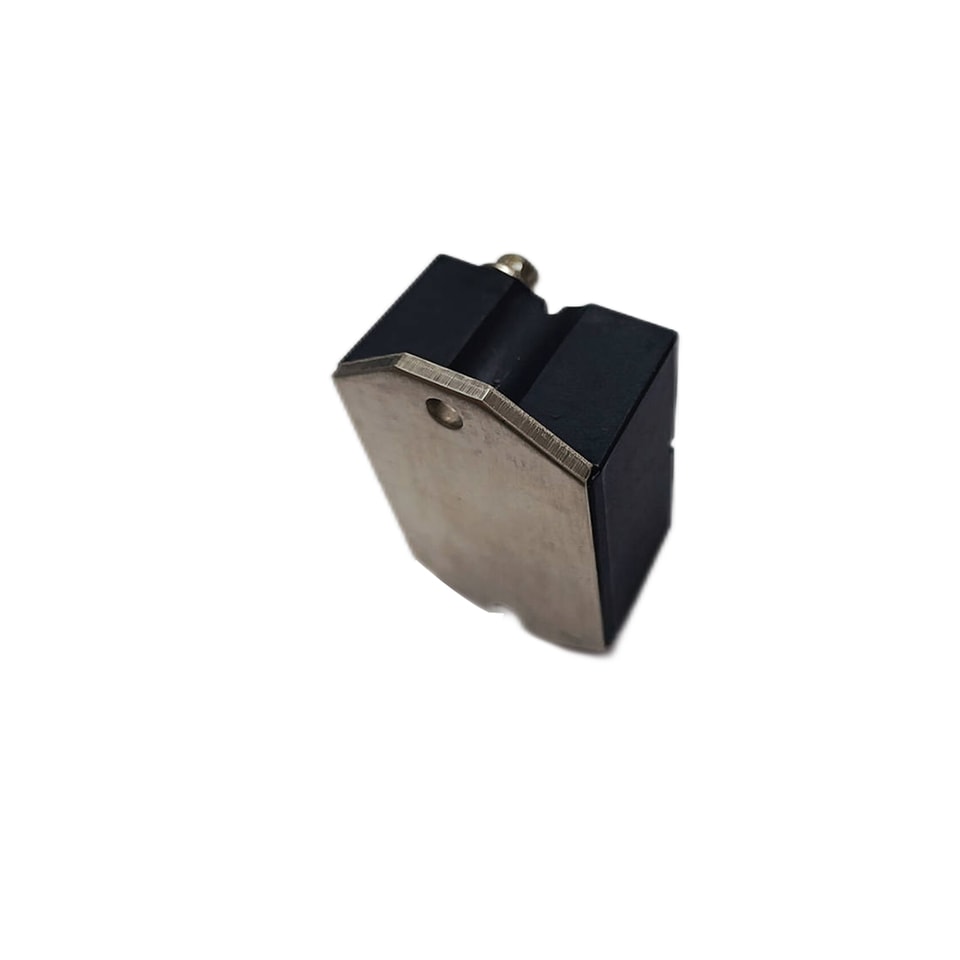

YZPST-SKD82-18 Bridge Rectifier
| Parameter | Symbol | Conditions | Values | Units |
| Repetitive Peak Off-State Voltage | VDRM | - | V | |
| Non Repetitive Peak Off-State Voltage | VDSM | - | ||
| Repetitive Peak Reverse Voltage | VRRM | 1800 | V | |
| Non Repetitive Peak Reverse Voltage | VRSM | 1900 | V | |
| Average Rectified Output Current | IO(AV) | TC=85°C | 80 | A |
| Surge Forward Current | IFSM | 50Hz; Half Sine Wave,1Pulse, Non-Repetitive | 750 | A |
| I Squared t | I2t | 2msec to 10msec | 2.8 | KA2s |
| Surge On-State Current | ITSM | 50Hz; Half Sine Wave,1Pulse, Non-Repetitive | A | |
| - | ||||
| I Squared t | I2t | 2msec to 10msec | - | KA2s |
| Peak Forward Voltage | VFM | Tj=25°C; IF=150A | 1.6 | V |
| Peak On-State Voltage | VTM | - | ||
| Peak Reverse Current | IRM | VRM= VRRM, Tj= 150°C | 6 | mA |
| Critical Rate of Turned-On Current | di/dt | VD=2/3VDRM, ITM=2•IO, Tj=125°C IG=200mA, diG/dt=0.2A/μs | A/μs | |
| - | ||||
| Critical Rate of Rise of Off-State Voltage | dv/dt | VD=2/3VDRM Tj=125°C | - | V/μs |
| Gate Current to Trigger | IGT | VD=6V,IT=1A,Tj=25°C | - | mA |
| Gate Voltage to Trigger | VGT | - | V | |
| Holding Current | IH | - | mA | |
| Thermal Resistance | Rth(j-c) | Junction to Case | 1.1 | K /W |
| Rth(c-f) | Case to Fin | 0.07 | K /W | |
| Tvj | -40~+150 | °C | ||
| Tstg | -40~+125 | °C | ||
| Visol | a.c. 50Hz; r.m.s.; 1min. | 3600 | V | |
| Mounting torque | M | Case mounting | 5 | N.m |
| Terminals |

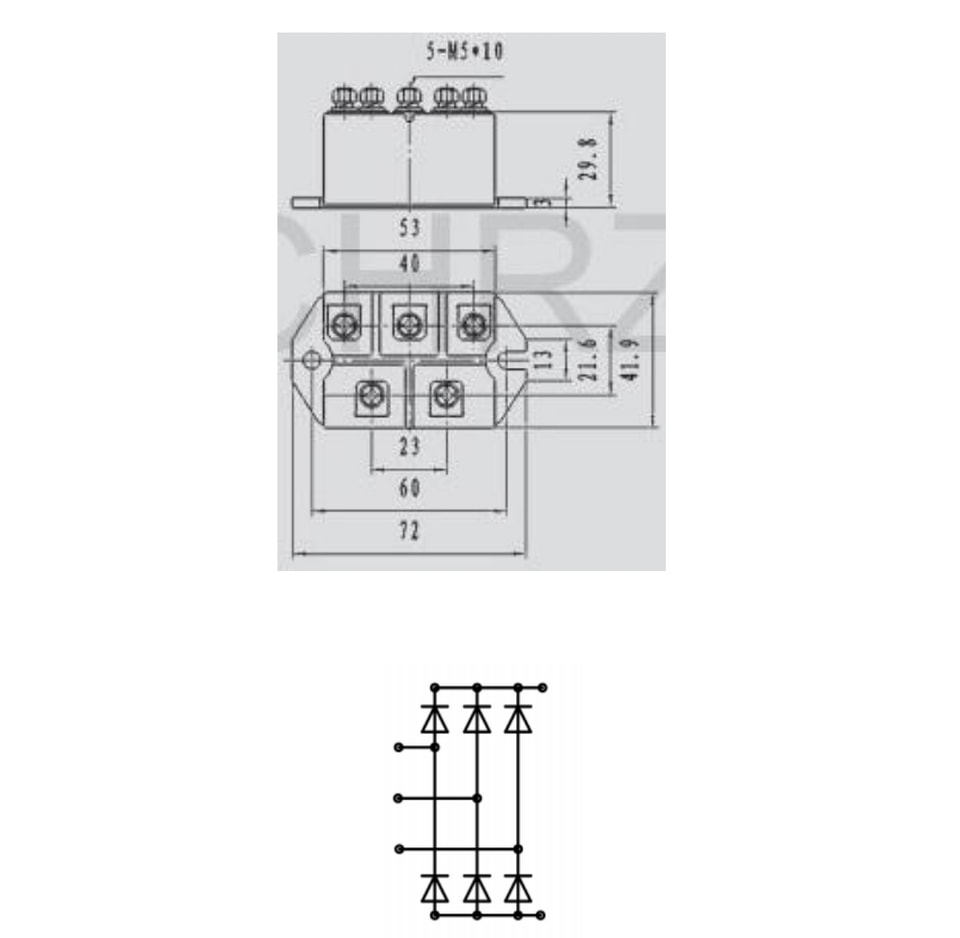

OUTLINE DRAWING (Dimensions in mm)
