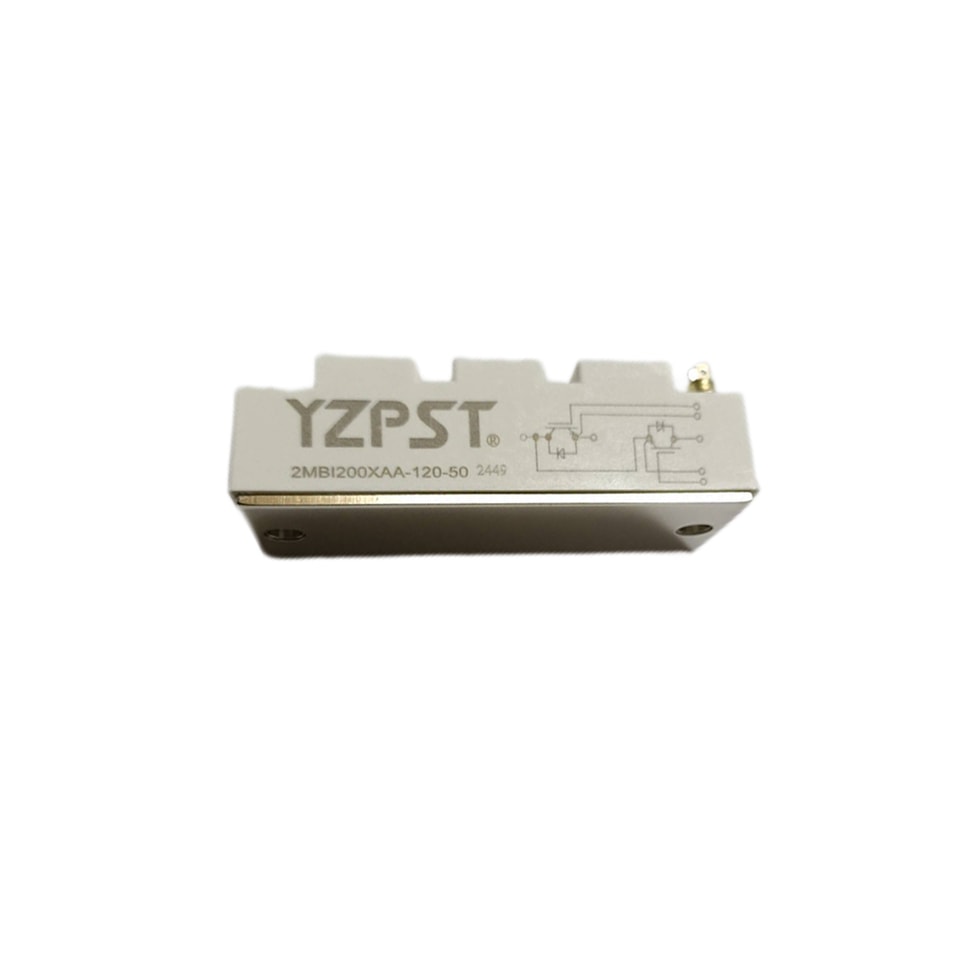

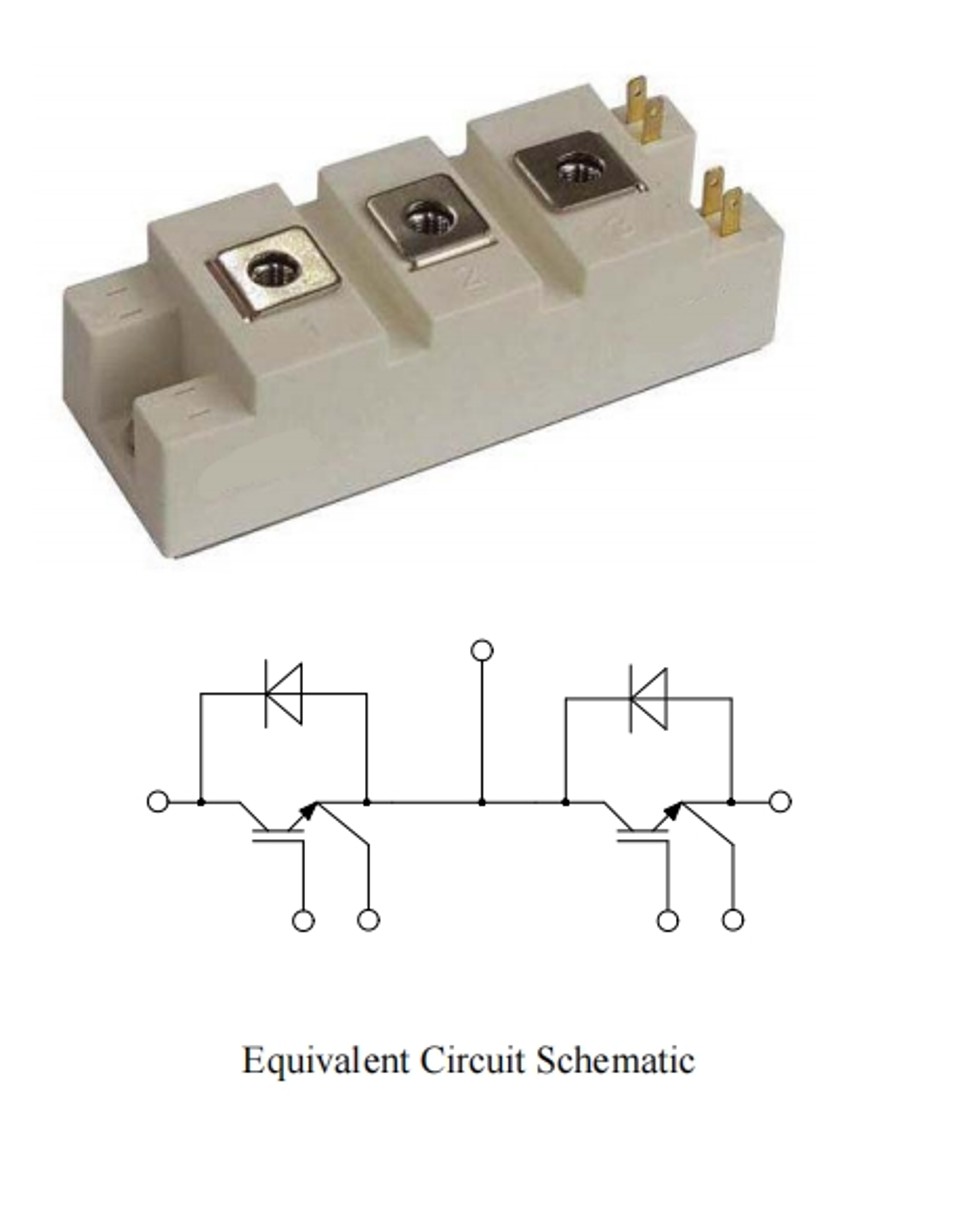

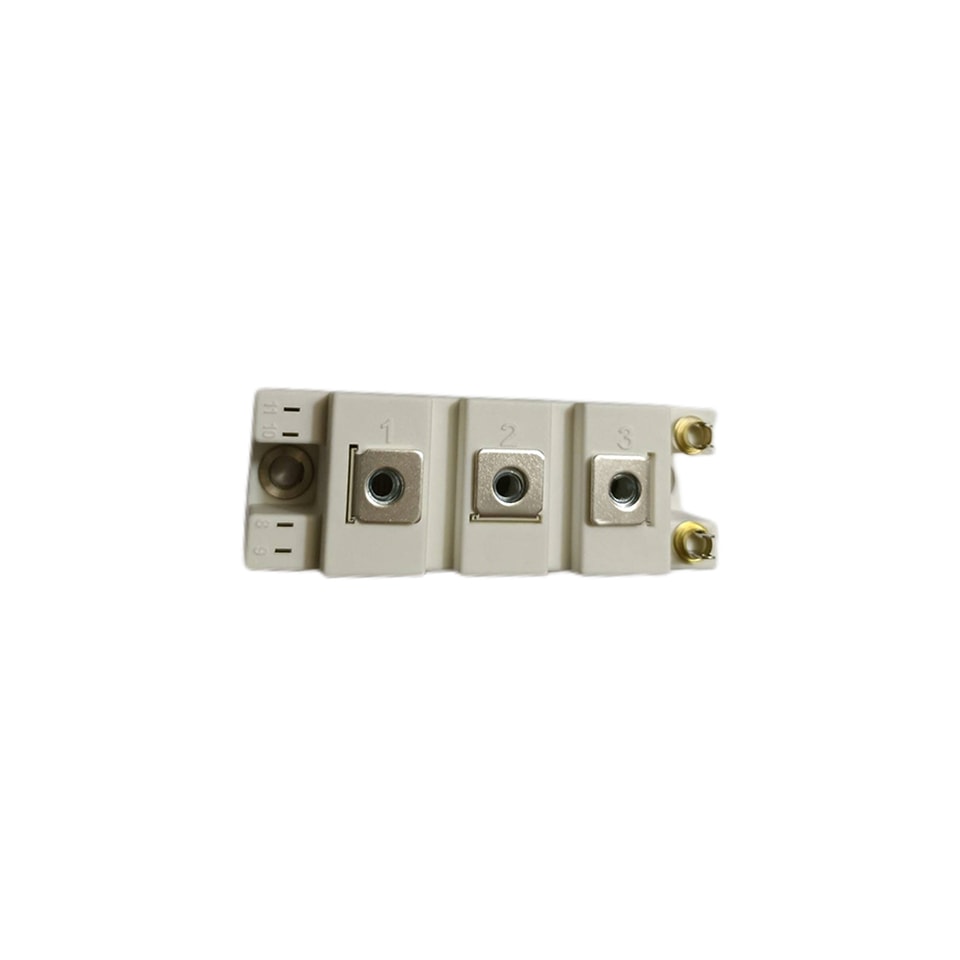

YZPST-2MBI200XAA-120-50 （YZPST-200B120F23）
IGBT Power Module
Applications
Inverter for motor drive
AC and DC servo drive amplifier
UPS (Uninterruptible Power Supplies)
Soft switching welding machine
Features
Low Vce(sat) with Trench Field-stop technology
Vce(sat) with positive temperature coefficient
Including fast & soft recovery anti-parallel FWD
High short circuit capability(10us)
Low inductance module structure
Maximum junction temperature 175℃
Absolute Maximum Ratings
Parameter | Symbol | Conditions | Value | Unit |
Collector-Emitter Voltage | VCES | VGE=0V, IC =1mA, Tvj=25℃ | 1200 | V |
Continuous Collector Current | IC | Tc=100℃ | 200 | A |
Peak Collector Current | ICRM | tp=1ms | 400 | A |
Gate-Emitter Voltage | VGES | Tvj=25℃ | ±20 | V |
Total Power Dissipation (IGBT-inverter) | Ptot | Tc=25℃ Tvjmax=175℃ | 695 | W |

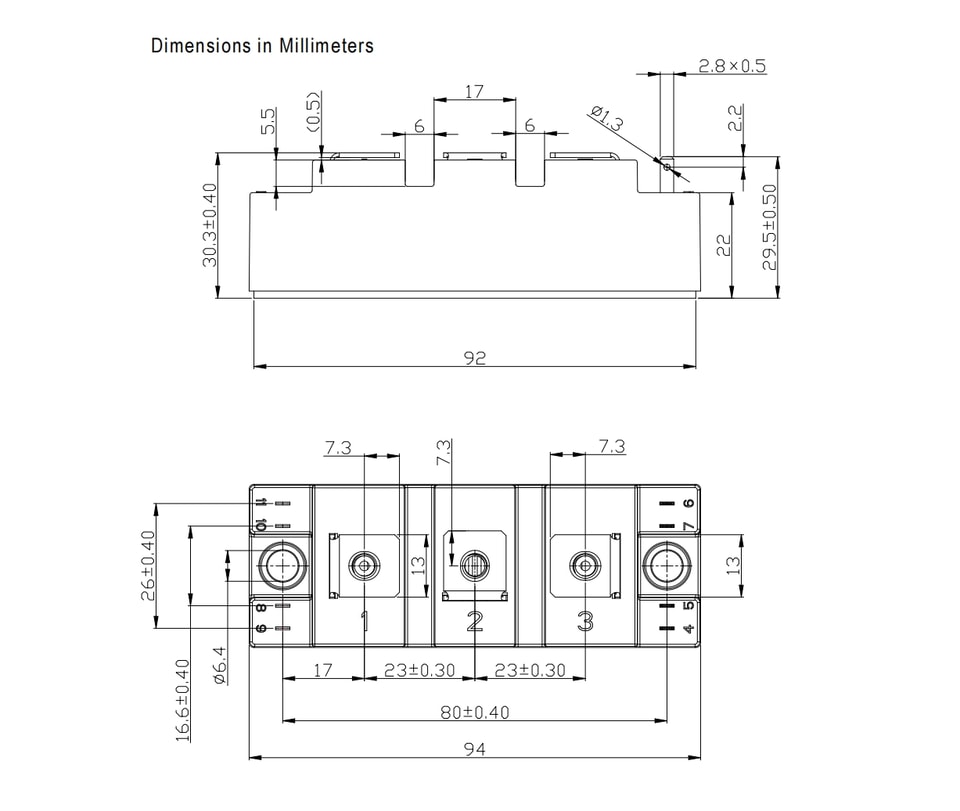

Package Dimensions
