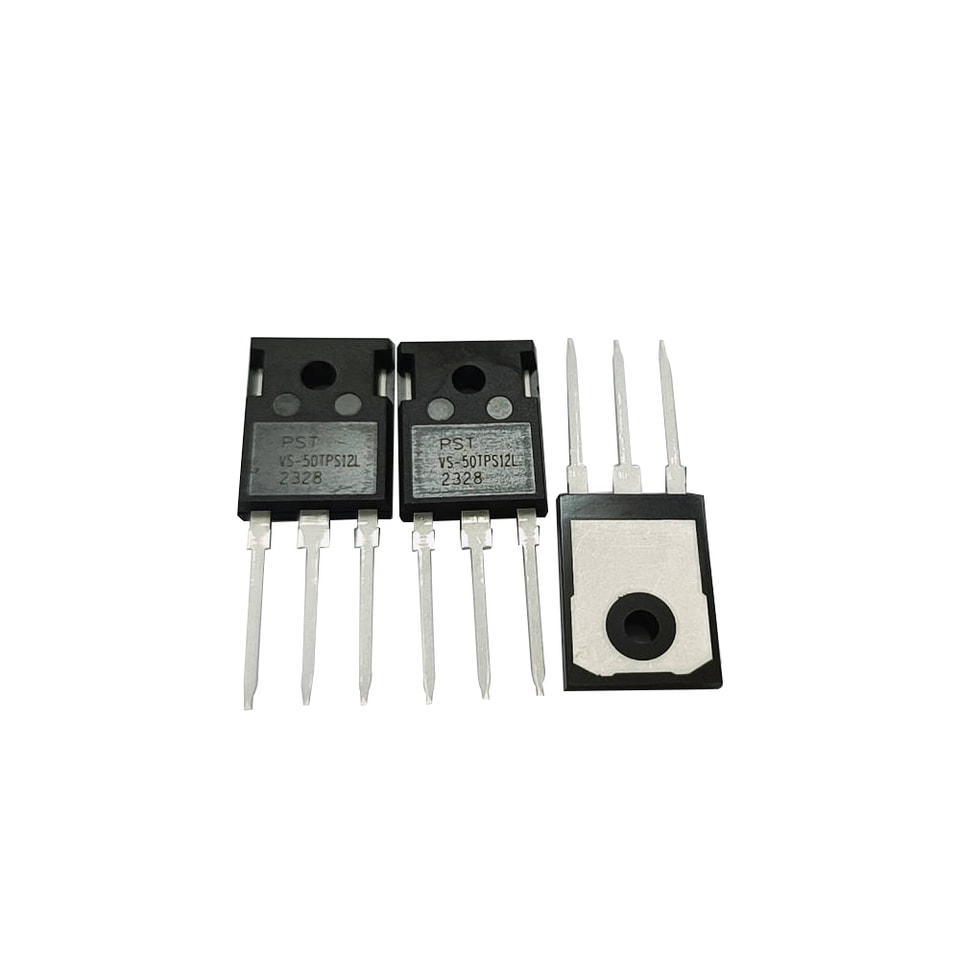

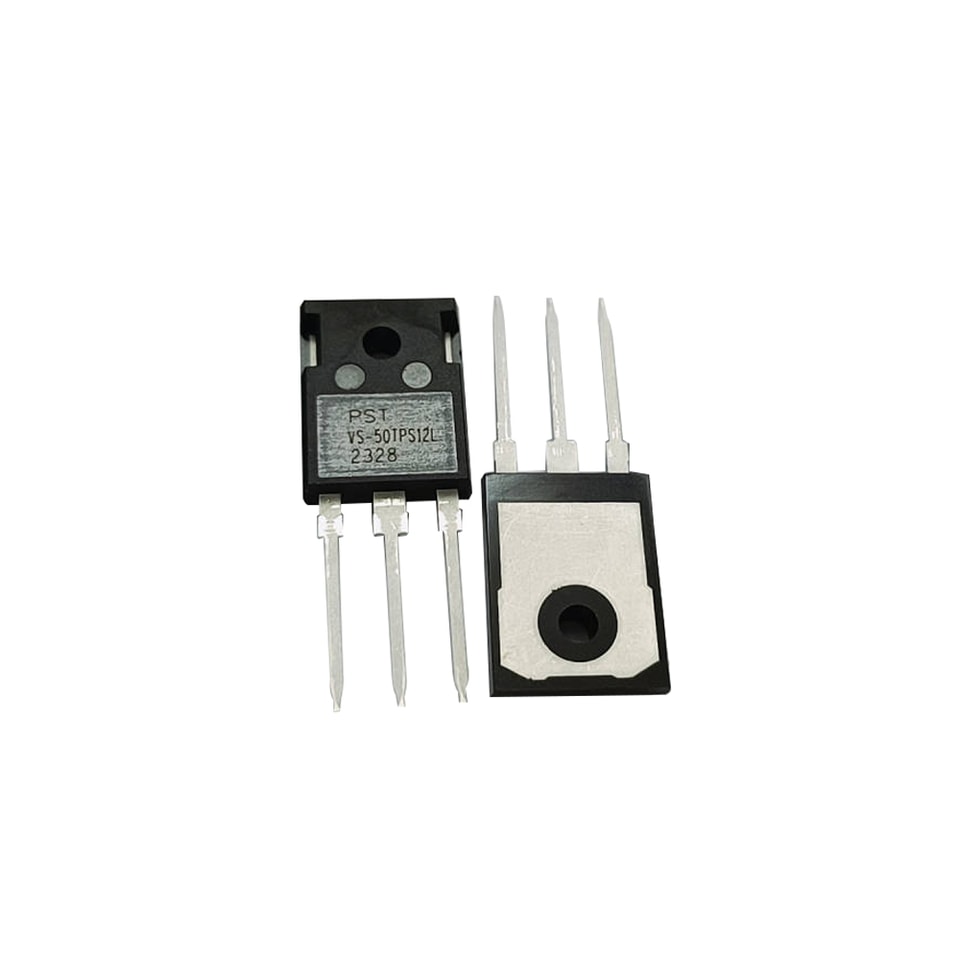

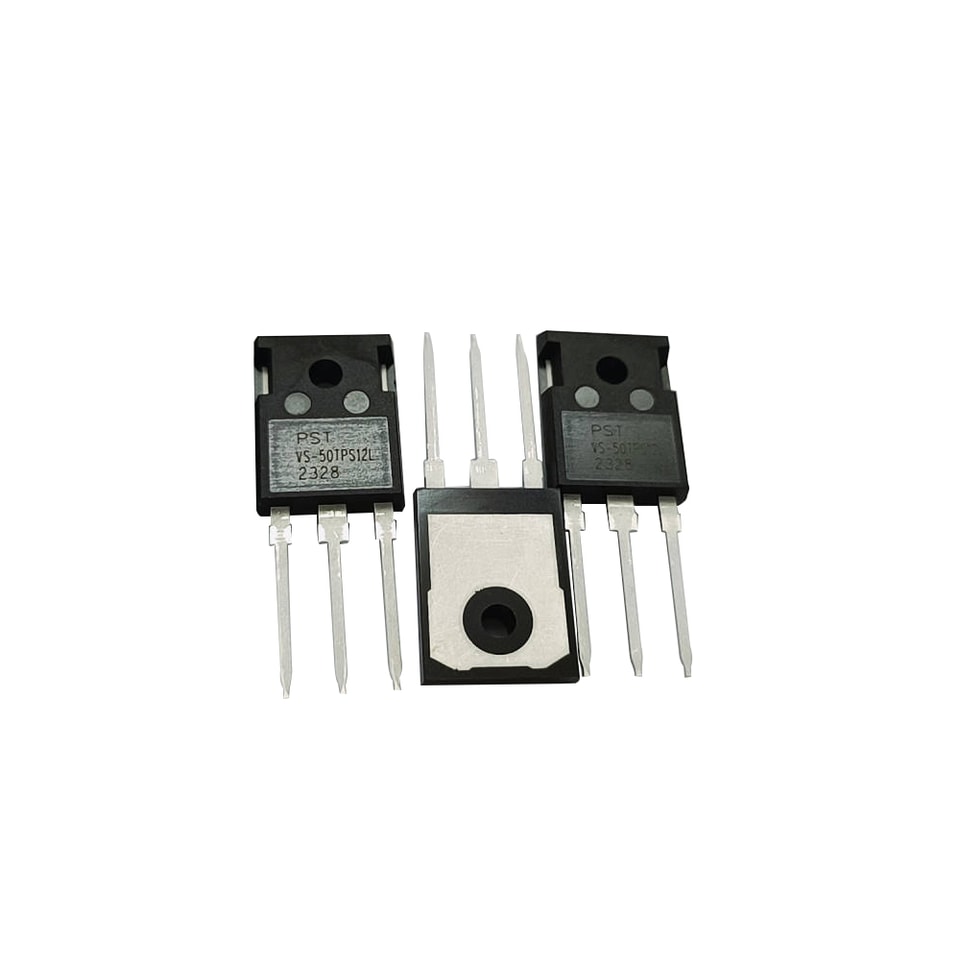

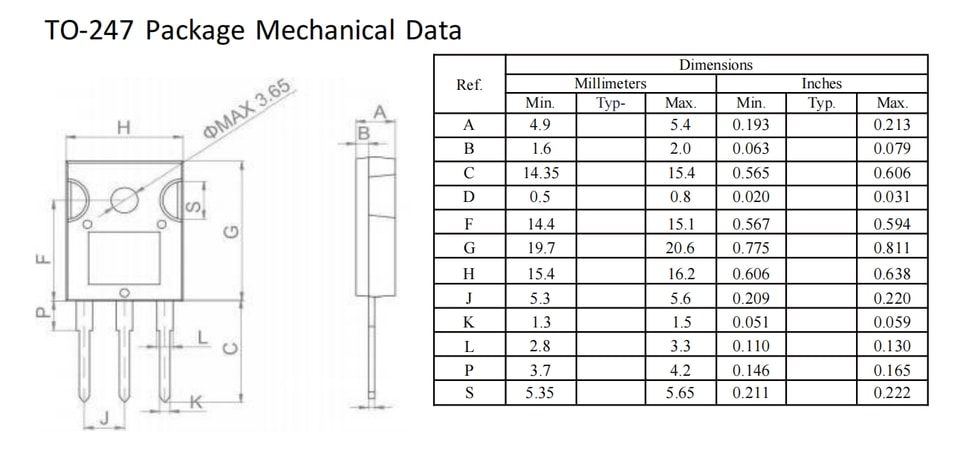

YZPST-50TPS12L Very high current surge capability 1200V TO-247-3L SCR

Product summary and primary technical information will be loaded from the product database.

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

EmailTechnical sales

PhoneContact team

REQUEST A TECHNICAL QUOTE ↗

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Downloads & technical files

YZPST-50TPS SCR series.pdfDOWNLOAD ↘

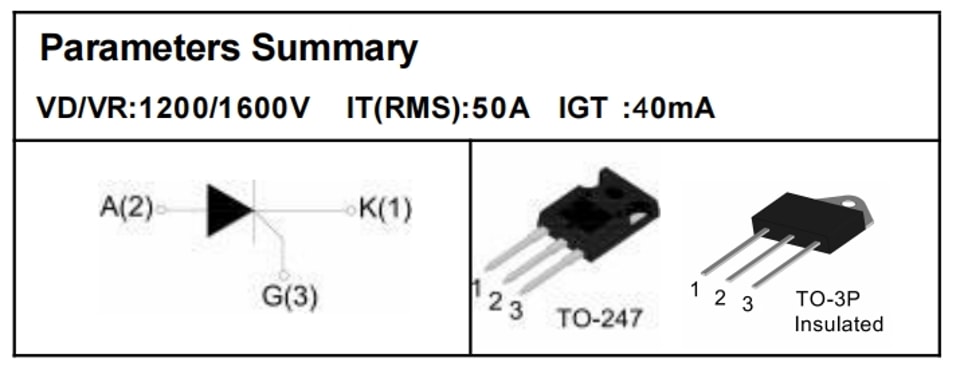

YZPST-50TPS 50A SCR series

Very high current surge capability 1200V TO-247-3L SCR

FEATURES
High thermal cycling performance
High voltage capacity
Very high current surge capability
APPLICATIONS
Line rectifying 50/60 Hz
Softstart AC motor control
DC Motor control
Power converter
AC power control
Lighting and temperature control

ABSOLUTE MAXIMUM RATINGS
Parameter	Symbol	Value	Unit
Storagejunction temperature range	Tstg	-40 ~ 150	℃
Operating junction temperature range	Tj	-40~ 125	℃
Repetitive peak off-state voltage (T =25℃)	VDRM	1200/1600	V
Repetitive peak reverse voltage (T =25℃)	VRRM	1200/1600	V
Non repetitive surge peak Off-state voltage	VDSM	VDRM +100	V
Non repetitive peak reverse voltage	VRSM	VRRM +100	V
RMS on-state current (T = 100℃)	IT(RMS)	50	A
Non repetitive surge peak on-state current	ITSM	630	A
I2t value for fusing (tp= 10ms)	I2t	2450	A2 S
Critical rate of rise of on-state curren t(I =2×IGT, tr ≤ 100 ns)	di/dt	150	A/μS
Peak gate current	IGM	2.5	A
Average gate power dissipation	PG(AV)	2.5	W

Thermal Resistances
Symbol	Parameter		Value	Unit
		TO-3P	0.6
Rth(j-c)	Junction to case (DC)	TO-247	0.55	℃/W

ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)
Symbol	Test Condition	Value			Unit
Symbol	Test Condition	MIN.	TYP.	MAX.	Unit
IGT	V = 12V R = 140Ω	20	40	60	mA
VGT	V = 12V R = 140Ω			1.3	V
VGD	VD=VDRM Tj= 125℃ R= 1KΩ	0.2			V
IL	IG= 1.2IGT			300	mA
IH	IT= 50mA			200	mA
dV/dt	VD=2/3VDRM Gate Open Tj=125℃	500			V/μs

STATIC CHARACTERISTICS
Symbol	Parameter		Value(MAX )	Unit
VTM	ITM = 140A tp=380μs	Tj =25℃	1.8	V
IDRM	VD=VDRM VR=VRRM	Tj =25℃	200	μA
IRRM	VD=VDRM VR=VRRM	Tj =125℃	8	mA
