YZPST-2CLG20KV-0.2A
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
YZPST-2CLG20KV/0.2A
High voltage rectifier block adopts high reliable
mesa structure and diffusion craft-work, epoxy resin molded in a compact structure.
Features
Avalanche characteristic
More sizes to choose
epoxy
Resin molded in vacuum,have anti-corrosion in the surface.
Tj: -40℃—+150℃
Applications
High voltage rectifier used in electrostatic cleaning
High voltage generator
High voltage testing equipment
General purpose high voltage rectifier, voltage multiplier assembly
Maximum Rating
Item | Symbol | Unit | Conditions | Voltage | |
Repetitive Peak Reverse Voltage | VRRM | KV | Ta=25℃ IR=1.0μA | 20.0 | 40.0 |
Non-Repetitive Peak Reverse Voltage |
VRsM |
KV |
Ta=25℃ IR=1.0μA |
24.0 |
48.0 |
Average Forward Current | IF(AV) | mA | （50KHz Half-sine Wave , Resistance load T break=50℃) | 200 | 200 |
Surge Forward Current | IFSM | A | 0.01S Half-Sine wave 50Hz | 20 | 20 |
Operating Ambient Temperature | Ta | ℃ |
| -40~ +150 | -40~ +150 |
Reverse Recovery Time | trr | nS | IF=2mA IR=4mA IRR=1mA | 100 | 100 |
Storage Temperature | T stg | ℃ |
| -40~ +125 | -40~ +125 |
Electrical Characteristic(Ta= 25℃ ,unless otherwise specified)
| Forward Peak Voltage | VFM | V | Ta=25℃ IF=0.2A | ≥51 | ≥68 |
| Peak Reverse Current | IRRM1 | μA | Ta=25℃ VRM=VRRM | 2 | 2 |
| IRRM2 | μA | Ta=100℃ VRM=VRRM | 20 | 20 |

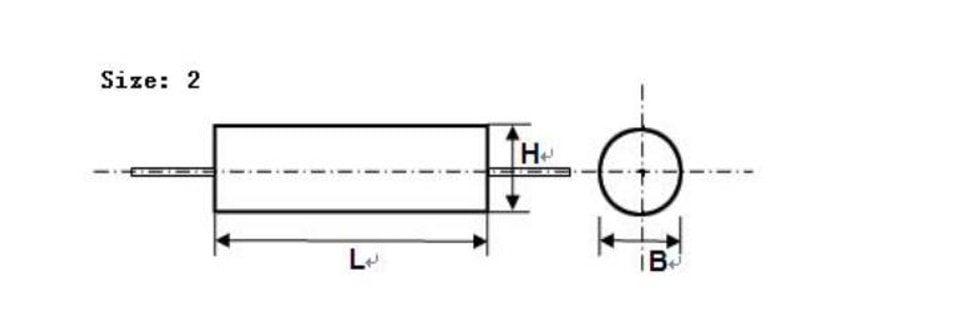

Dimensions (Unit: mm)
Item | L | B(H) | Axial Lead |
2CLG20KV/0.2A | 25 | 8 | Dia 1.2mm |
2CLG40KV/0.2A | 60 | 8 | Dia 1.2mm |
.jpg)
.jpg)
.jpg)
