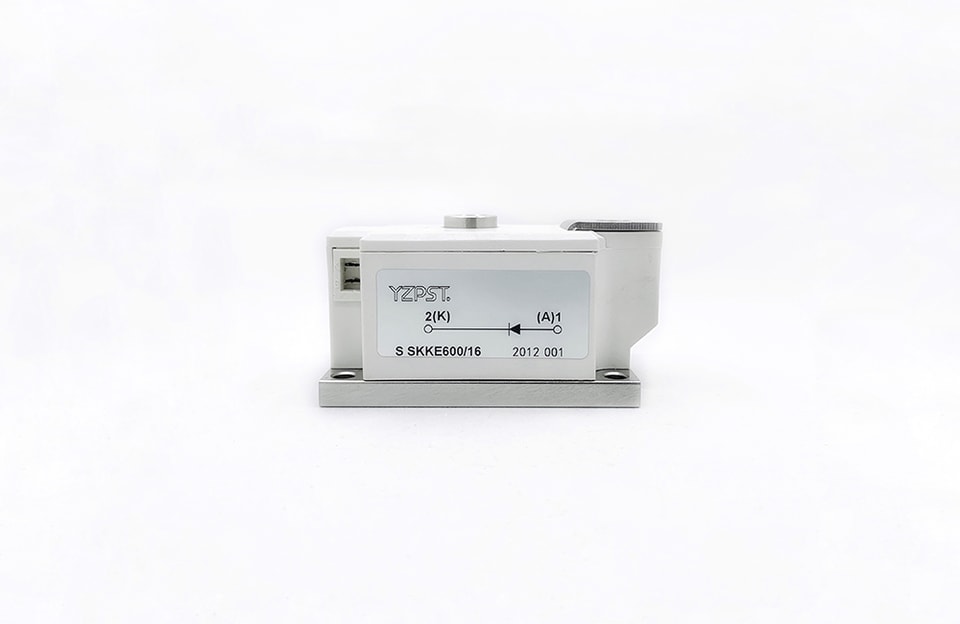

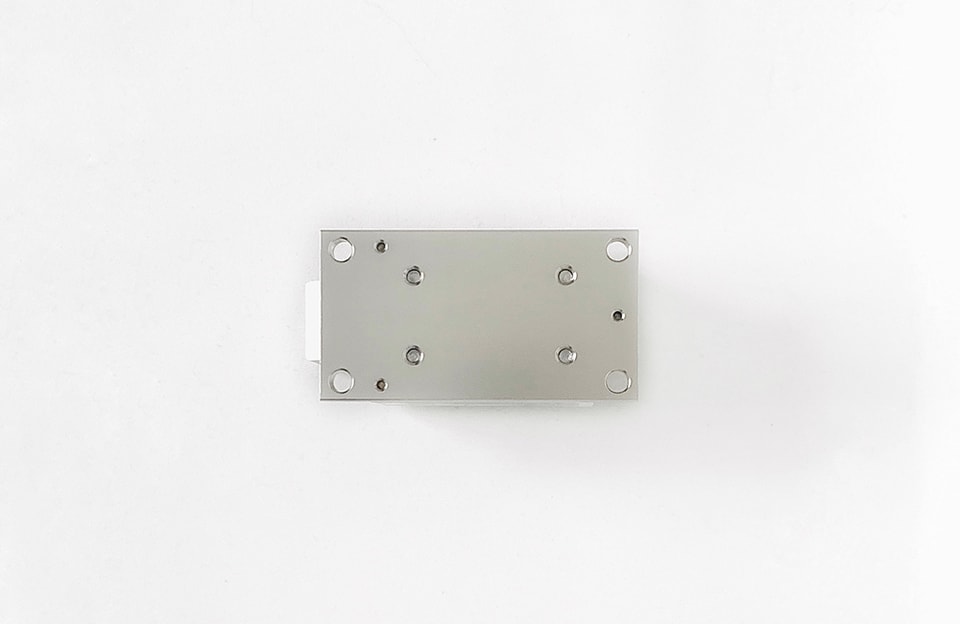

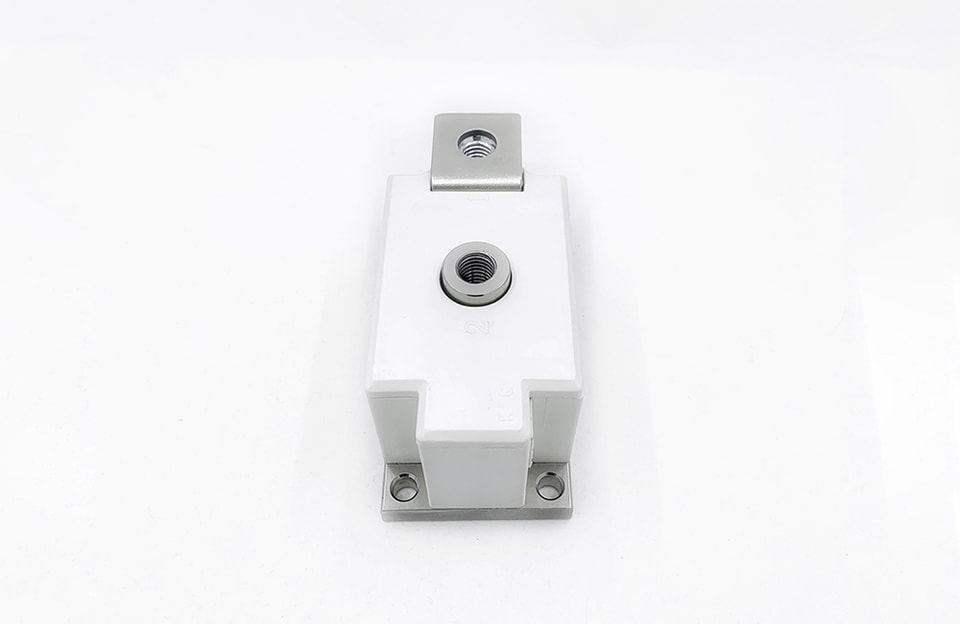

YZPST-SKKE600A1600V

Symbol

Condition

Ratings

Unit

VRRM

Tvj = -40°C... Tvj max

1600

V

VRSM

Tvj = -40°C... Tvj max

VRRM+100

V

IF(RMS)

Tc=100°C

930

A

IF(AV)

Tc=100°C

600

A

IFSM

50 Hz, 60% VRRM reapplied, Tj =150°C

18

KA

I2t

50 Hz, 60% VRRM reapplied, Tj =150°C

1805

KA2S

Viso

50 Hz, A.C. 1s / 1min.

3600/3000

V

Tj

-40  ~  + 150

°C

Tstg

-40  ~  + 130

°C

M1

Busbar, Tolerance of ± 15%

5

Nm

M2

to heatsink, Tolerance of ± 10%

17

Nm

W

About

940

g

Symbol

Condition

Ratings

Unit

IRRM

Up to VRRM , Tj =150°C

15

mA

VF

I F =3000A, Tj=25°C

1.5

V

V(TO)

Tj=150°C

0.75

V

r T

Tj=150°C

0.25

mΩ

Rth(j-c)

Per Junction, both conducting

0.07

K /W

Rth(c-s)

Per Module

0.02

K /W
