YZPST-D860-18C
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Forward Conduction
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Repetitive peak reverse voltage | VRRM | 1800 | V | |||
Non repetitive peak reverse voltage | VRSM | 1900 | V | |||
Max. average forward current | IF(AV)M | 860 | A | Sinewave,180o conduction,Tc=80oC | ||
Max. RMS forward current | IF(RMS)M | 1250 | A | Nominal value | ||
Max. peak, one-cycle forward,
non-repetitive surge current
| IFSM | 12 | kA |
10.0 msec (50Hz), half sinewave,
Tvj = Tvj max, VRM = 0.5VRRM
| ||
Maximum I2t for fusing | I2t | 725 | kA2s | |||
Max. forward voltage drop | VFM | 1.40 | V | IFM = 2600A; Tvj = 25oC | ||
Threshold voltage | VF0 | 0.7 | V | |||
Slope resistance | rT | 1.5 | mΩ |
Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
Operating temperature | Tj | -40 | +150 | oC | ||
Storage temperature | Tstg | -40 | +150 | oC | ||
Reverse recovery charge | Qrr | - | μc | |||
Thermal resistance - junction to case | RQ (j-c) |
-
-
| 90 | oC /kW | ||
Thermal resistamce - case to heatsink | RQ (c-s) |
-
-
| 80 | oC /kW | ||
Mounting force | P | - | - | 1.7 | kN | ± 20% |
Weight | W | - | - | 950 | g | About |

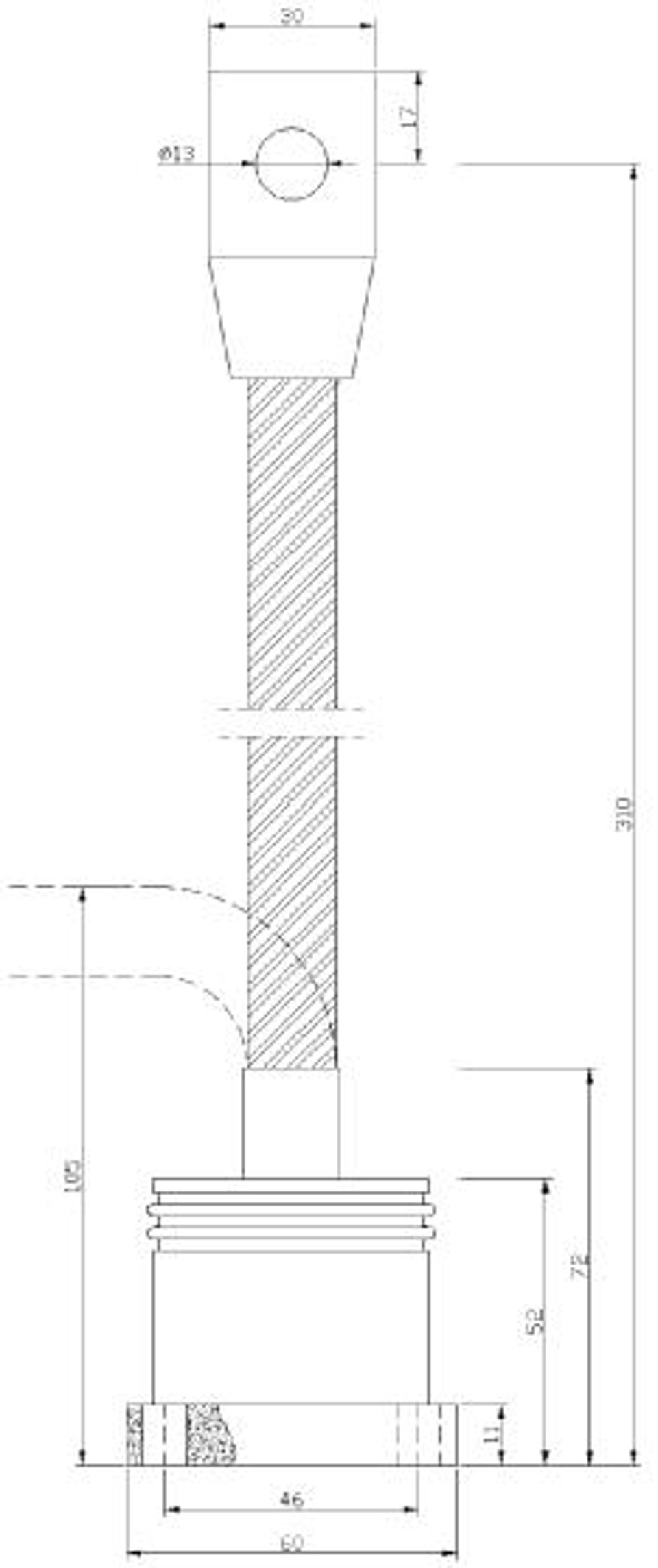

Case style | - | See Outline Table |
