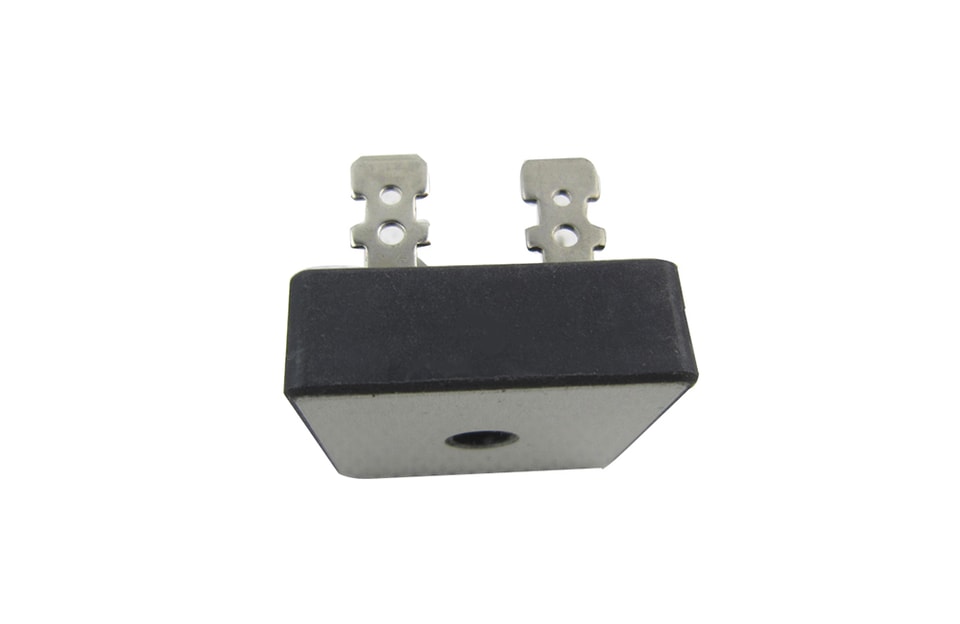

YZPST-BR1510
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Feature
Low forward voltage drop
Isolation voltage 2000V～
Small volume, light weight
Low thermal resistance,
high heat-conductivity, low temperature rise
UL certification No.E304417
Application
Power supply for DC power device
Input rectifier for PWM converter
Inverter welding machine
Symbol | Parameter | Rating | Unit | ||
BR | |||||
1506 | 1508 | 1510 | |||
VRRM | Reverse peak repetitive voltage | 600 | 800 | 1000 | V |
VRSM | Reverse peak non-repetitive voltage | 700 | 900 | 1100 | V |
Symbol | Parameter | Test condition | Rating | Unit |
IF（AV） | Forward average current | TC=78℃ | 15 | A |
IFSM | Forward surge current | sin, 50Hz, t=10ms,Tj=25℃ | 180 | A |
I2t | I2t value | 162 | A2S | |
VISO | Isolation voltage | 50Hz，R.M.S，t=1min，Iiso:1mA(max) | 2000 | V |
Tj | Operating junction temperature | -40 to +150 | ℃ | |
Tjm | Rated junction temperature | 150 | ℃ | |
Tstg | Storage temperature | -40 to +125 | ℃ | |
Md | Mounting torque M5 | 2 | N·m | |
Wt | Weight | 20 | g |
Symbol | Parameter | Test condition | Max value | Unit |
IRRM | Peak reverse repetitive current | VR=VRRM, Tj=25℃ | 5 | μA |
VR=VRRM, Tj=150℃ | 3 | mA | ||
VFM | Peak forward voltage | IFM =7.5A, Tj=25℃ | 1.1 | V |
Rth(j-c) | Thermal impedance（junction-case） | Single-sided heat dissipation, sine half-wave | 1.2 | ℃/W |
.jpg)
.jpg)
.jpg)
