Film Capacitors – Power Factor Correction
DeltaCap YZPST-AKMJYS series capacitors

Series/Type:YZPST-AKMJYS series

Production introduction – PFC capacitor
Structure
Single phase, 3 phases, separated phases or YN
Single cylinder case or multiply cylinder cases

标题
标题
标题

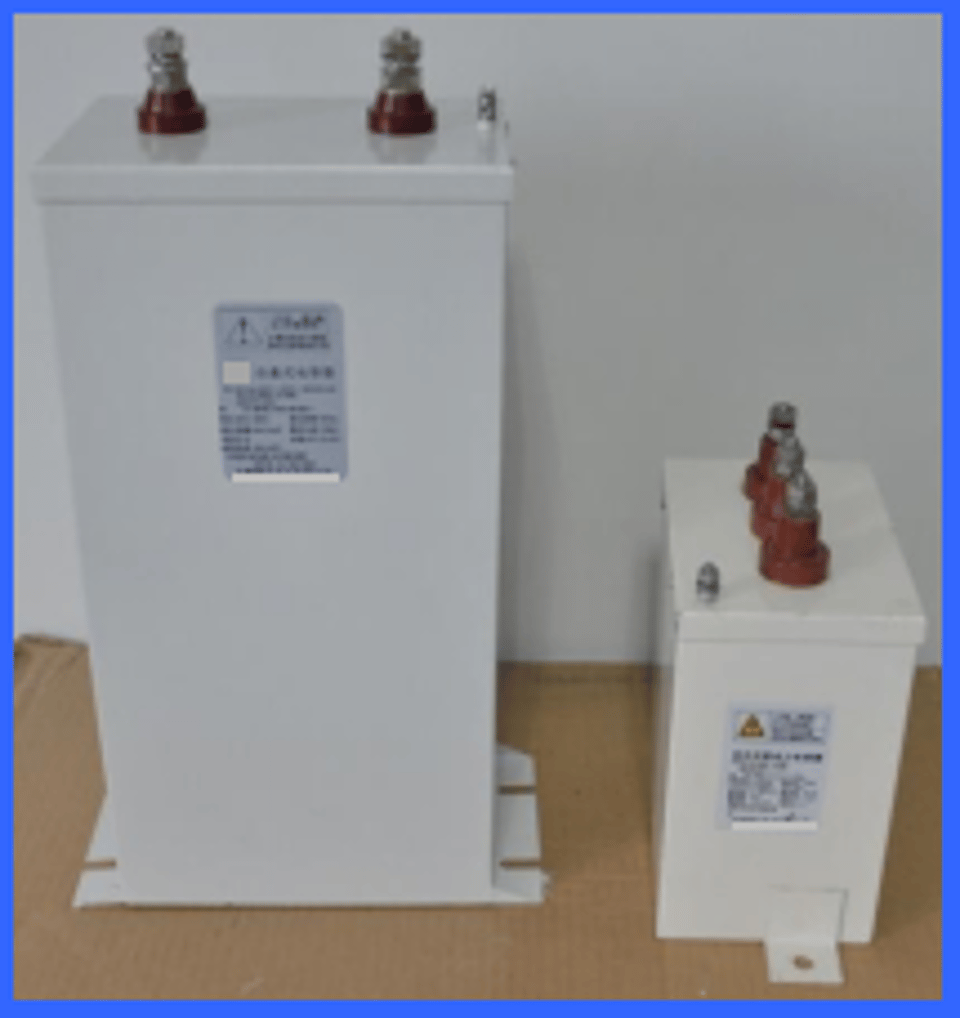

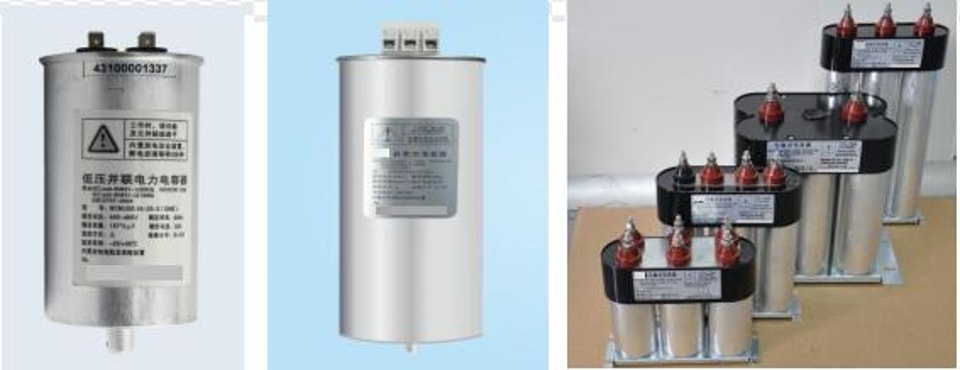

Product model classification
Product model
BKMJ Economical square capacitor
BKMJP Standard square capacitor
AKMJG Filter square high performance capacitor
BKMJYS Standard cylindrical capacitor

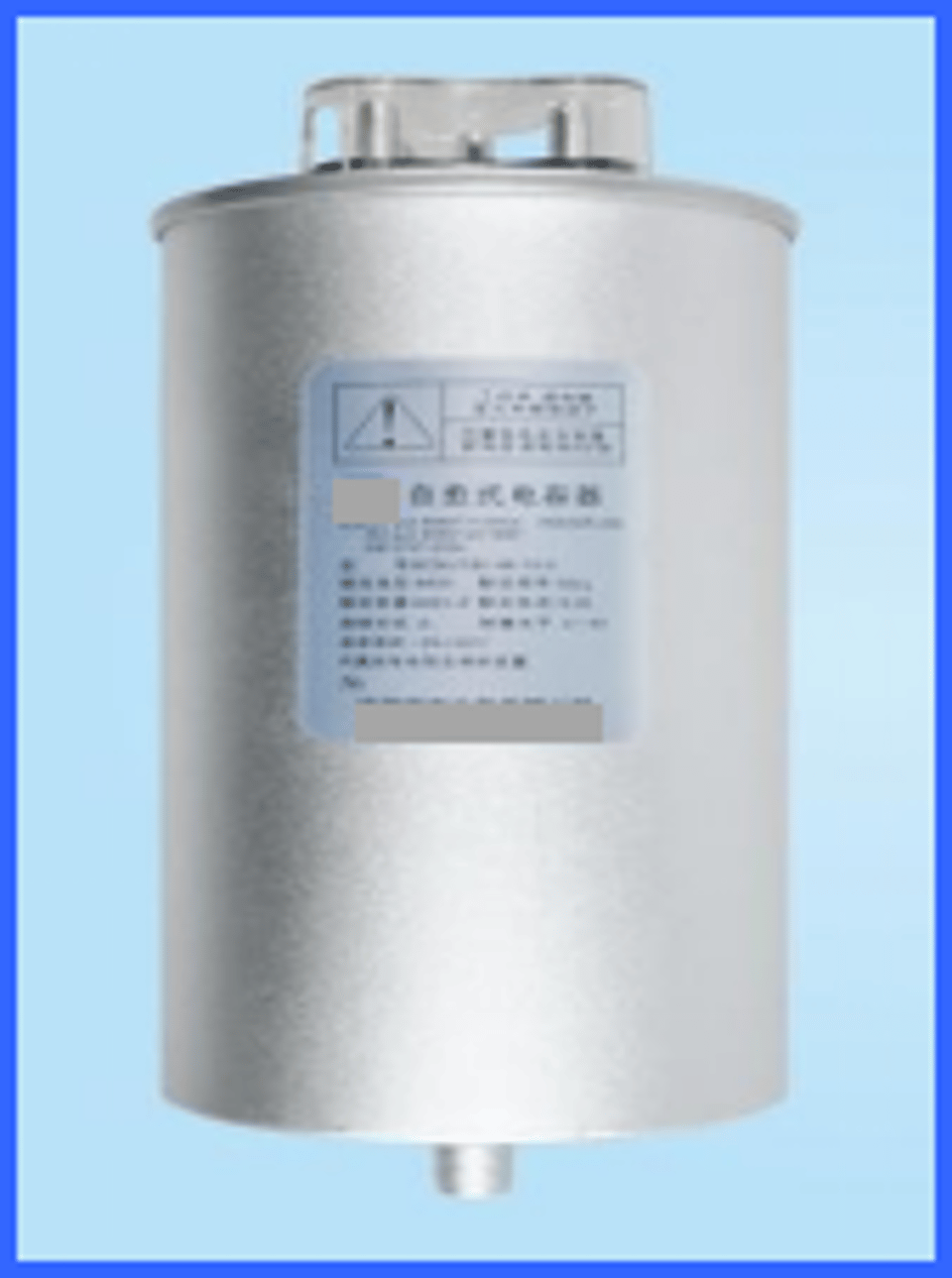

AKMJYS Filter cylindrical high performance capacitor

Comparison of main relevant parameters of different models of products

Models

BKMJ

BKMJP

AKMJG

BKMJYS

AKMJYS

Capacity

deviation

-5%~10%

-2%~3%

Withstand

voltage between polar

shells

≥3600V

Use

environment

-40~60℃

Maximum operating

voltage of capacitor

1.1 times of rated voltage

1.1 times

1.2

times

1.15

times

1.2 times

Maximum operating

current of capacitor

1.3 times the rated current

1.5

times

2 times

1.5

times

2 times

Inrush current capacity at switching moment

200 times the rated current

220

times

250

times

220

times

250

times

Product features
The special coating process ensures good capacitor self-healing performance and stability of electrical performance.
Multiple groups of single shunt capacitors are our patented products. Each group of single capacitors adopts overvoltage separation device, which not only ensures the safety of the product, but also improves the electrical performance and service life of the product due to the use of multiple groups of single elements and a certain gap between the parallel elements.
The products are made of imported Nordic chemical high gauge particles, which are thin and resistant to high temperature, so as to ensure more stable product performance.

Specification table

Part number	50Hz		60Hz		C_R	Dimension （mm）			Bolt of the bottom	Packing unit pcs
Part number	Output kvar	I_R A	Output kvar	I_R A	µF	ΦD	ΦD1	H	Bolt of the bottom	Packing unit pcs
Rated voltage 450 V AC, 50/60 Hz, delta connection
AKMJYS-X-X-0.45-5-3	5.0	6.4	6.0	7.7	26.2×3	65	68	160	M12×16	10
AKMJYS-X-X-0.45-10-3	10.0	12.9	12.0	15.4	52.4×3	76	79	235	M12×16	6
AKMJYS-X-X-0.45-15-3	15.0	19.3	18.0	23.1	78.6×3	86	89	235	M12×16	6
AKMJYS-X-X-0.45-20-3	20.0	25.7	24.0	30.8	104.8×3	96	99	278	M12×16	4
AKMJYS-X-X-0.45-25-3	25.0	32.1	30.0	38.5	131.0×3	106	106	278	M16×25	4
AKMJYS-X-X-0.45-30-3	30.0	38.5	36.0	46.2	157.2×3	116	119	278	M16×25	4

Part number	50Hz		50Hz		C_R	Dimension （mm）			Bolt of the bottom	Packing unit pcs
Part number	Output kvar	I_R A	Output kvar	I_R A	µF	ΦD	ΦD1	H	Bolt of the bottom	Packing unit pcs
AKMJYS-X-X-0.45-33.4-3	33.4	42.9	40.1	51.5	175.0×3	126	129	278	M16×25	4
AKMJYS-X-X-0.45-35-3	35.0	44.9	42.0	53.9	183.4×3	126	129	278	M16×25	4
AKMJYS-X-X-0.45-40-3	40.0	51.4	48.0	61.6	209.6×3	136	139	278	M16×25	4
Rated voltage 480 V AC, 50/60 Hz, delta connection
AKMJYS-X-X-0.48-5-3	5.0	6.0	6.0	7.2	23.0×3	65	68	160	M12×16	10
AKMJYS-X-X-0.48-10-3	10.0	12.0	12.0	14.5	46.0×3	76	79	235	M12×16	6
AKMJYS-X-X-0.48-15-3	15.0	18.0	18.0	21.7	69.0×3	86	89	235	M12×16	6
AKMJYS-X-X-0.48-20-3	20.0	24.0	24.0	28.9	92.1×3	96	99	278	M12×16	4
AKMJYS-X-X-0.48-25-3	25.0	30.0	30.0	36.0	115.2×3	106	106	278	M16×25	4
AKMJYS-X-X-0.48-30-3	30.0	36.0	36.0	43.3	138.2×3	116	119	278	M16×25	4
AKMJYS-X-X-0.48-33.4-3	33.4	40.2	40.1	48.3	153.8×3	126	129	278	M16×25	4
AKMJYS-X-X-0.48-35-3	35.0	42.1	42.0	50.5	161.2×3	126	129	278	M16×25	4
AKMJYS-X-X-0.48-40-3	40.0	48.2	48.0	57.7	184.2×3	136	139	278	M16×25	4
Rated voltage 525 V AC, 50/60 Hz, delta connection
AKMJYS-X-X-0.525-5-3	5.0	5.5	6.0	6.6	19.3×3	65	68	160	M12×16	10
AKMJYS-X-X-0.525-10-3	10.0	11.0	12.0	13.2	38.5×3	76	79	235	M12×16	6
AKMJYS-X-X-0.525-15-3	15.0	16.5	18.0	19.8	57.7×3	86	89	235	M12×16	6
AKMJYS-X-X-0.525-20-3	20.0	22.0	24.0	26.4	77.0×3	96	99	278	M12×16	4
AKMJYS-X-X-0.525-25-3	25.0	27.5	30.0	33.0	96.3×3	106	106	278	M16×25	4
AKMJYS-X-X-0.525-30-3	30.0	33.0	36.0	39.6	115.5×3	116	119	278	M16×25	4

Part number	50Hz		60Hz		C_R	Dimension （mm）			Bolt of the bottom	Packing unit pcs
Part number	Output kvar	I_R A	Output kvar	I_R A	µF	ΦD	ΦD1	H	Bolt of the bottom	Packing unit pcs
AKMJYS-X-X-0.525-33.4-3	33.4	36.8	40.1	44.1	128.6×3	126	129	278	M16×25	4
AKMJYS-X-X-0.525-35-3	35.0	38.5	42.0	46.2	134.8×3	126	129	278	M16×25	4
AKMJYS-X-X-0.525-40-3	40.0	44.0	48.0	52.8	154.0×3	136	139	278	M16×25	4

For more information about YZPST-AKMJYS series please download the PDF file above named " Data sheet of YZPST-AKMJYS "and"capacitor company intro"
