- 1. Working frequency: 20khz-500khz
- 2. Output power: 0.5 to 15 W
- 3. Working temperature: -40℃ to +125℃
- 4. Storage temperature: 25℃ to +85℃
- 5. Storage humidity: 30 to 95%
PRODUCT VISUAL01 / GALLERY
POWER COMPONENT
Transformer
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
Emailinfo@yzpst.net
Phone+86 138 0527 8321
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured

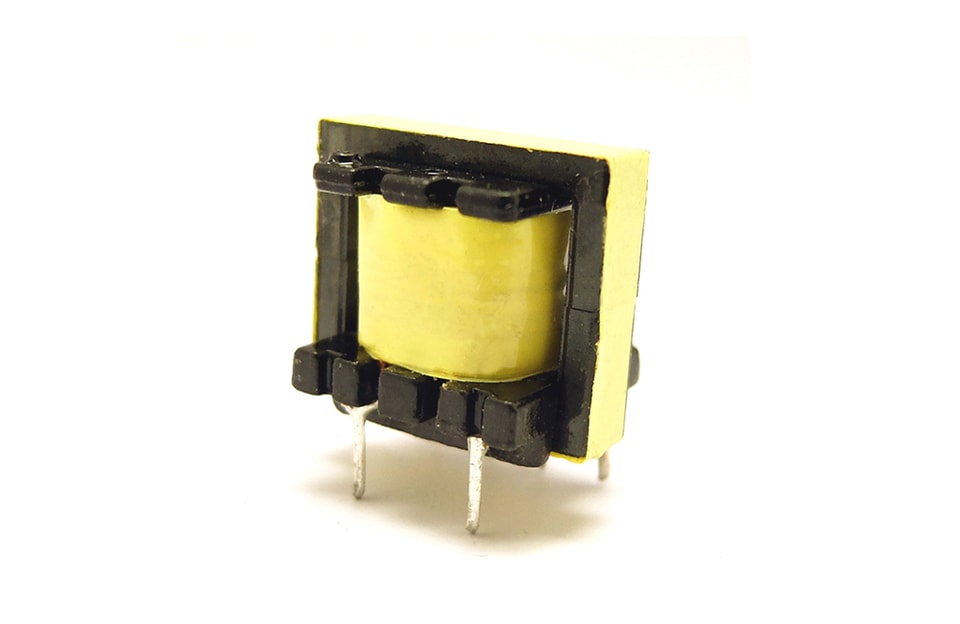

The characteristics of EE16 high frequency transformer EE16 high frequency transformer has the characteristics of small size, low price and high reliability . EE transformer is a basic ferrite core with stable performance, low cost and large current, which is widely used in power conversion and wiring. The filtering range is from small to large, which can meet the needs of various application circuits. If you use 155℃ or 180℃ heat-resistant polyester enameled wire, it can meet different temperature conditions and is suitable for various switching power supplies, inverters, UPS, etc.
EE16 high frequency transformer performance
The characteristics of EE16 high frequency transformer EE16 high frequency transformer has the characteristics of small size, low price and high reliability . EE transformer is a basic ferrite core with stable performance, low cost and large current, which is widely used in power conversion and wiring. The filtering range is from small to large, which can meet the needs of various application circuits. If you use 155℃ or 180℃ heat-resistant polyester enameled wire, it can meet different temperature conditions and is suitable for various switching power supplies, inverters, UPS, etc.
Application of
EE16 high frequency transformer EE16 high frequency transformer is usually used for auxiliary power transformer, dc-dc converter, drive transformer, digital camera, handheld switching power supply charger, etc.
EE16 high frequency transformer EE16 high frequency transformer is usually used for auxiliary power transformer, dc-dc converter, drive transformer, digital camera, handheld switching power supply charger, etc.
For more information about Transformer, please download the PDF file named "Transformer EE16" above.
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured
Numbering | Types of | Skull style | long | width | high | One of the PIN codes | Twice from PIN | Line spacing | Pin diameter | ||
EE16-1 | vertical | Ⅰ | 18.0 | 16.5 | 17.5 | 4 | 3.5 | 6 | 2.7 | 12.3 | Φ0.6 |
EE16-2 | vertical | Ⅰ | 16.5 | 14.0 | 15.5 | 5 | 3.3 | 5 | 3.3 | 10.5 | Φ0.6 |
EE16-3 | vertical | Ⅰ | 15.5 | 15.5 | 14.0 | 4 | 3.8 | 4 | 3.8 | 10.2 | Φ0.6 |
EE16-4 | horizontal | Ⅱ | 17.0 | 21.0 | 14.5 | 4 | 3.8 | 4 | 3.8 | 15.7 | Φ0.6 |
EE16-5 | horizontal | Ⅱ | 17.0 | 19.0 | 13.5 | 5 | 3.2 | 5 | 3.2 | 15.5 | Φ0.6 |
EE16-6 | horizontal | Ⅱ | 17.0 | 19.0 | 14.0 | 5 | 2.5 | 5 | 2.5 | 12.5 | Φ0.6 |
EE16-7 | vertical | Ⅲ | 17.0 | 18.0 | 16.5 | 5 | 3.2 | 2 | 12.8 | 13.8 | Φ0.6 |
EE16-8 | vertical | Ⅲ | 17.0 | 17.0 | 15.0 | 5 | 3.5 | 4 | 5.0 / 3.2 | 14.2 | Φ0.6 |
For more information about Transformer, please download the PDF file named "Transformer EE16" above.
