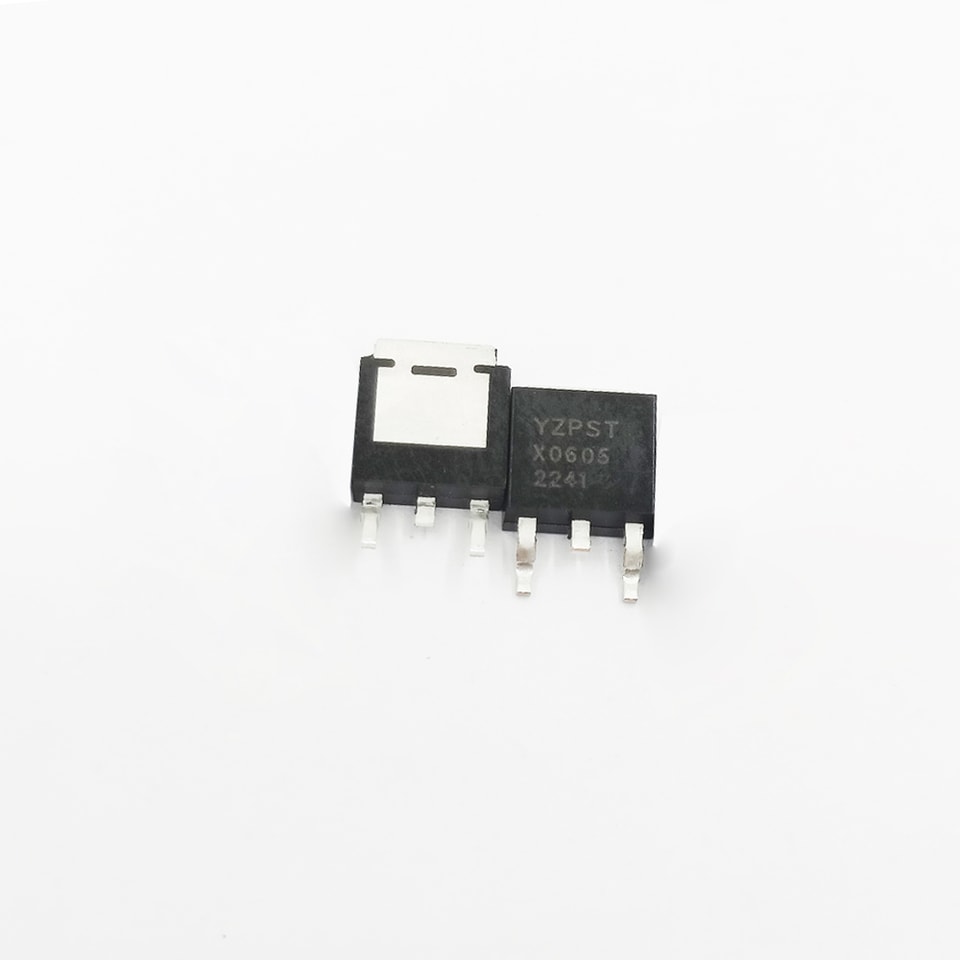

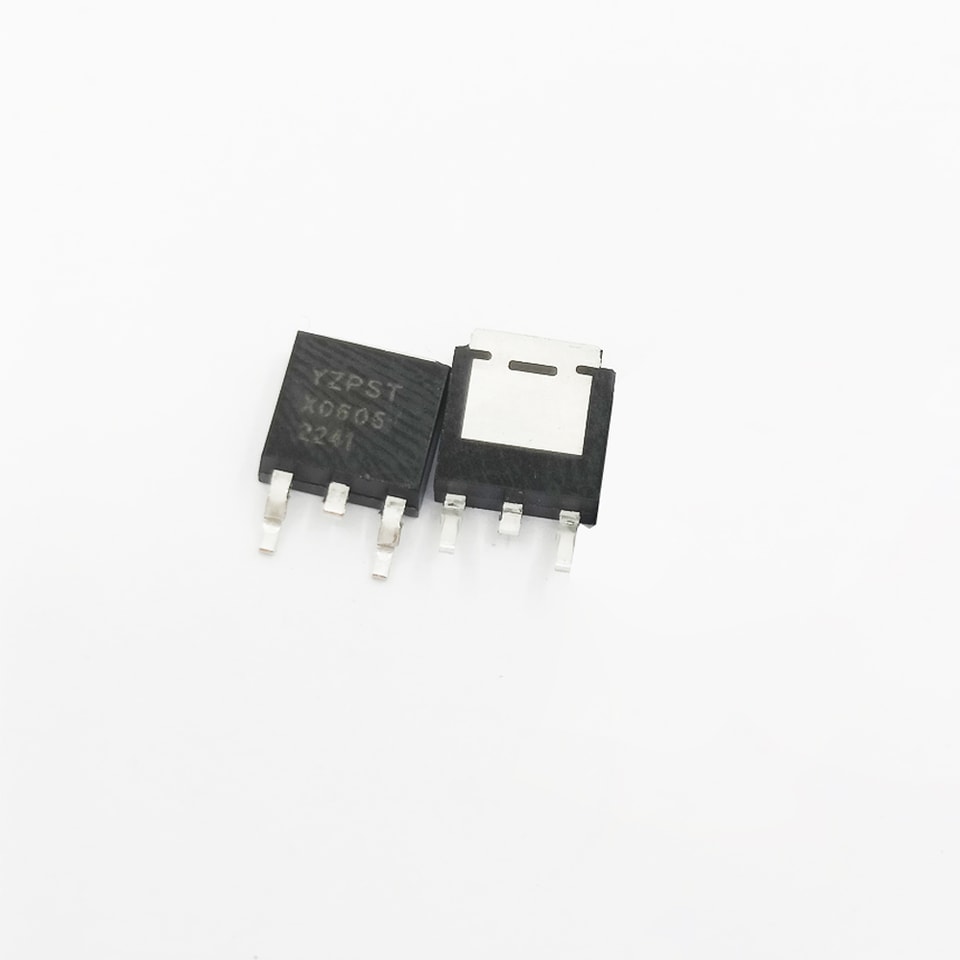

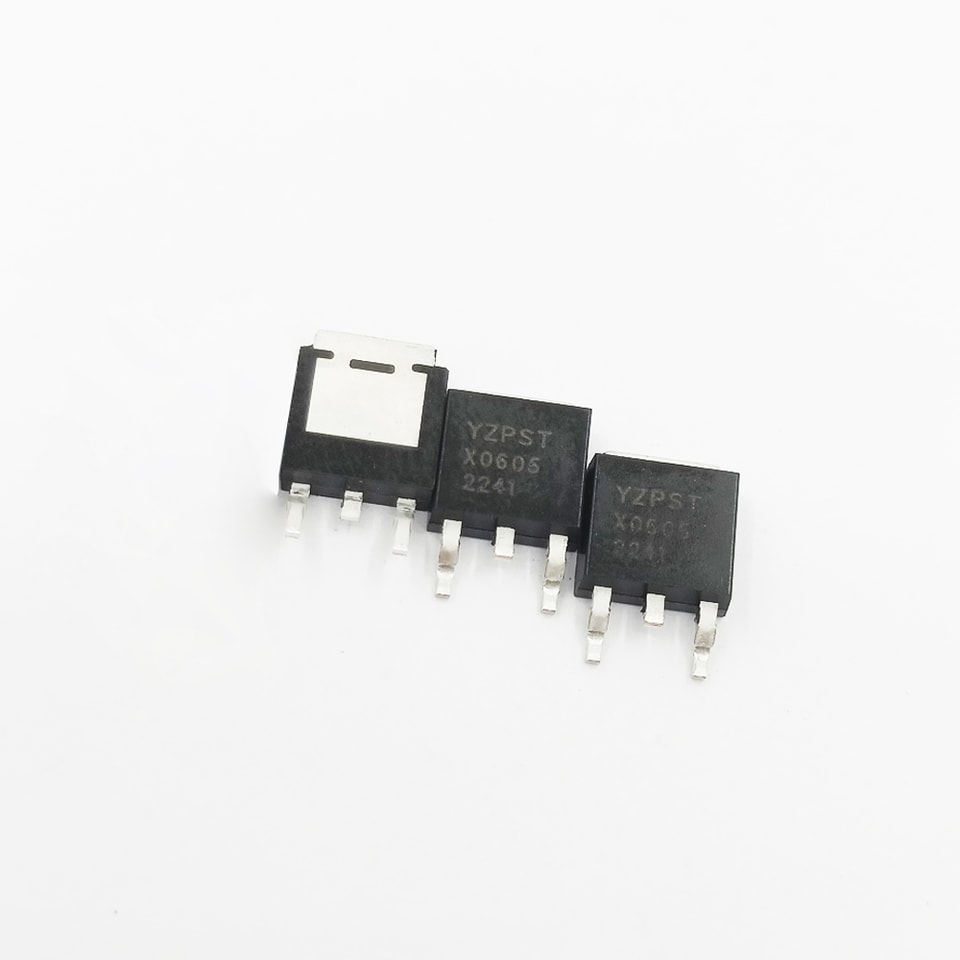

YZPST-X0605 6A SCRs
DESCRIPTION:
The X0605 SCR series provide high dv/dt rate with
strong resistance to electromagnetic interface.They
are especially recommended for use on straight hair,
igniter etc.
MAIN FEATURES:
symbol | value | unit |
IT(RMS) | 6 | A |
IGT | ≤10 | mA |
VDRM/VRRM | 600/800 | V |
Parameter | Symbol | Value | Unit |
Storage junction temperature range | Tstg | -40~150 | ℃ |
Operating junction temperature range | Tj | -40~110 | ℃ |
Repetitive peak off-state voltage (Tj=25℃) | VDRM | 600/800 | V |
Repetitive peak reverse voltage (Tj=25℃) | VRRM | 600/800 | V |
RMS on-state current | IT(RMS) | 6 | A |
Non repetitive surge peak on-state current (full cycle, F=50Hz) | ITSM | 45 | A |
I2t value for fusing (tp=10ms) | I2t | 6.75 | A2s |
Critical rate of rise of on-state current (IG=2 × IGT) | dI/dt | 50 | A/ μs |
Peak gate current | IGM | 1.8 | A |
Average gate power dissipation | PG(AV) | 0.3 | W |
Peak gate power | PGM | 3 | W |
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
| Symbol | Value | ||||
| Test Condition | MIN | TYPE | MAX | Unit | |
| IGT | - | 5 | 10 | mA | |
| VGT | VD=12V, RL=33Ω | - | 0.6 | 0.8 | V |
| VD=VDRM Tj=110℃ | |||||
| VGD | RL=3.3kΩ | 0.2 | - | - | V |
| IH | IT=50mA | - | - | 5 | mA |
| IL | IG=1.2IGT | - | - | 6 | mA |
| dV/dt | VD=0.66×VDRM Tj=110℃ Gate open RGK=1KΩ | V/ µs | |||
| 10 | - | - | |||
STATIC CHARACTERISTICS
| Symbol | Test Condition | Value | Unit | ||
| VTM | ITM=8A tp=380μs | Tj=25℃ | MAX | 1.5 | V |
| IDRM | VDRM= VRRM | Tj=25℃ | 5 | µA | |
| IRRM | RGK=1KΩ | Tj=110℃ | MAX | 100 | µA |
THERMAL RESISTANCES
| Symbol | Test Condition | Value | Unit | |
| TO-202-3 | 7.8 | |||
| TO-252-4R | 6.5 | |||
| junction to case(AC) | TO-126 | 7.3 | ℃/W | |
| Rth(j-c) | TO-220B | 3 | ||

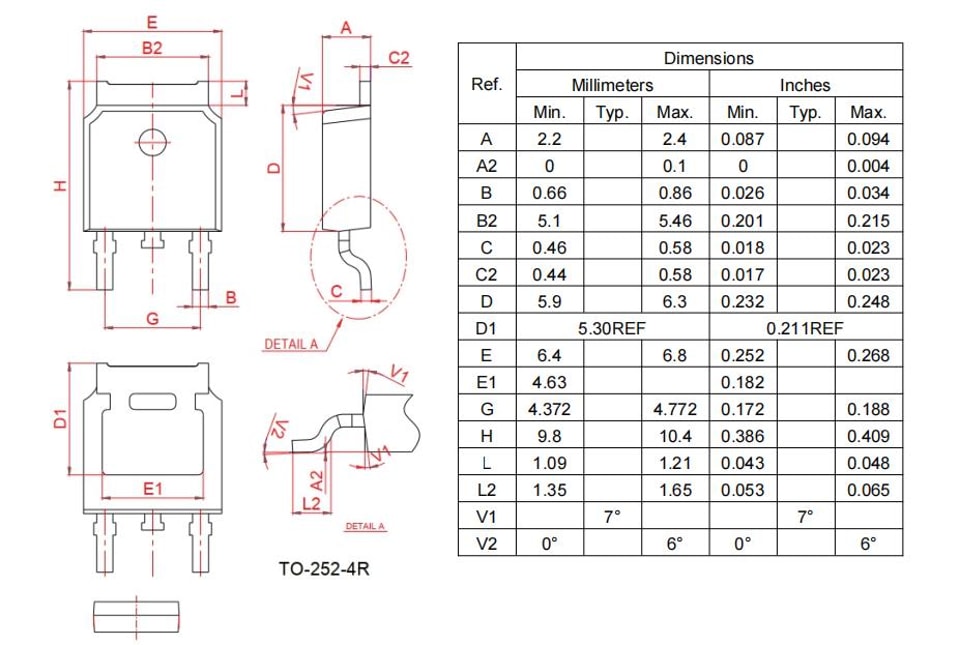

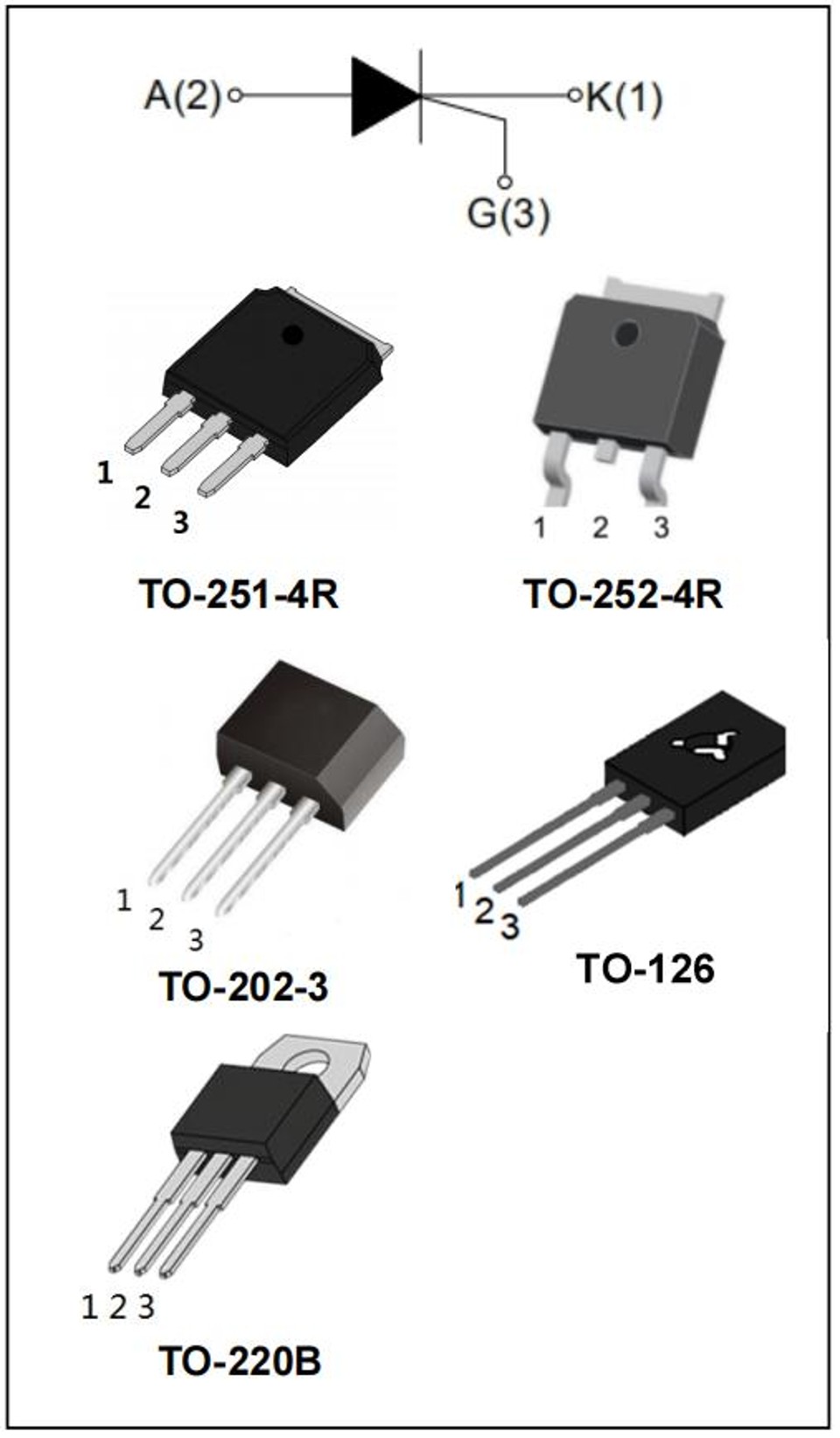

PACKAGE MECHANICAL DATA
