TECHNICAL PRODUCT DATA

YZPST-MUR860G

Home > Products > YZPST-MUR860G

PRODUCT VISUAL01 / GALLERY

POWER COMPONENT

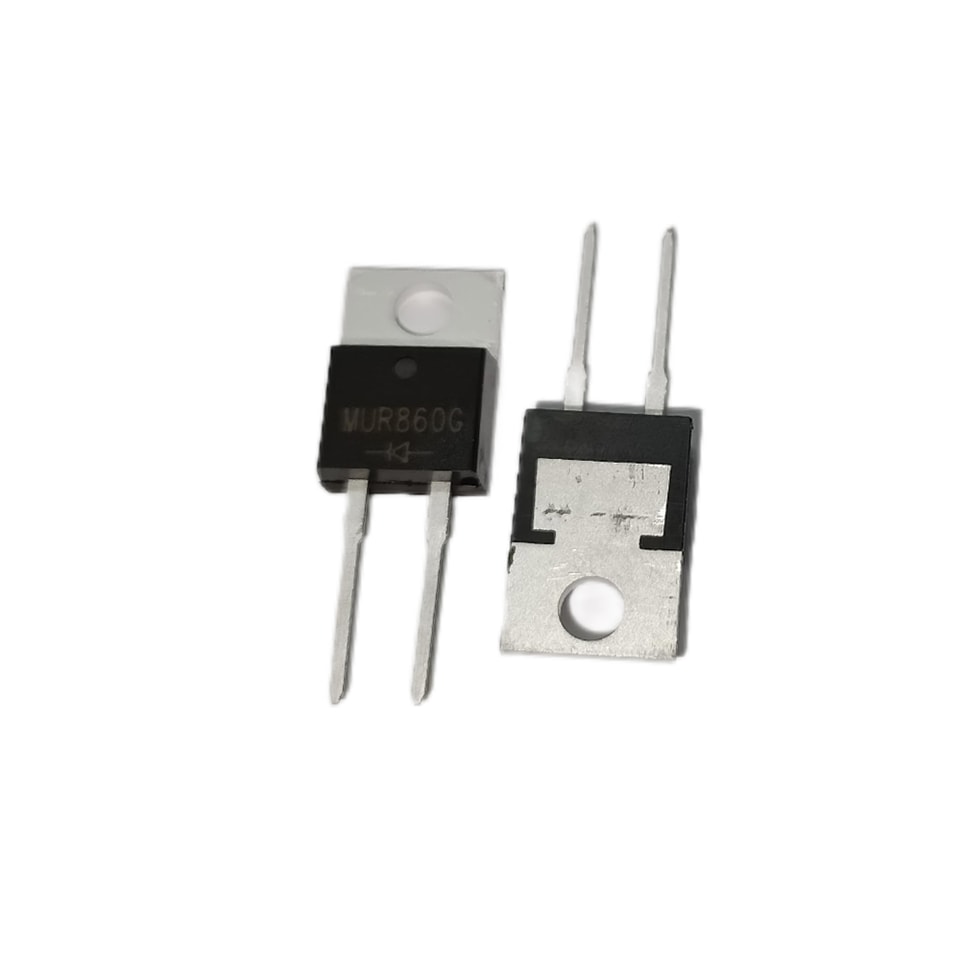

YZPST-MUR860G

Product summary and primary technical information will be loaded from the product database.

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

EmailTechnical sales

PhoneContact team

REQUEST A TECHNICAL QUOTE ↗

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Downloads & technical files

YZPST-MUR805G Thru MUR860G.pdfDOWNLOAD ↘

SUPERFAST RECOVERY RECTIFIER

MUR805G Thru MUR860G

VOLTAGE - 50 TO 600 VOLTS CURRENT 8AMPERES

FEATURES

Low forward voltage drop

High Current Capability

High reliability

High surge Current Capability

Good for switching mode application

High temperature soldering : 260oC/10seconds at terminals

Pb free product are available : 99% Sn above can meet RoHS environment substance directive request

MECHANICAL DATA

Case TO220AC Molded plastic

Epoxy : UL 94V-0 rate flame retardant Lead : Lead solderable per

MIL-STD-202, Method 208 guranteed

Polarity : As Marked

Mounting Position : Any Weight : 2.24gram

MAXIMUM RATIXGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25oC ambient temperature unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load

For capacitive load, derate current by 20%

PARAMETER	MUR 805G	MUR 810G	MUR 815G	MUR 820G	MUR 830G	MUR 840G	MUR 860G	UNITS
Maximum Repetitive Peak Reverse Voltage	50	100	150	200	300	400	600	Volts
Maximum RMS Voltage	35	70	105	140	210	320	420	Volts
Maximum DC Blocking Voltage	50	100	150	200	300	400	600	Volts
Maximum Average Forward Rectified Current .375 (9.5mm) Lead Length at TC =1000C	8							Amps
Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method)	125							Amps
Maximum Instandeous Forward Voltage at 8.0A	0.95				1.25		1.65	Volts
Maximum DC Reverse Current TA =250C at Rated DC Blocking Voltage TA =1000C	10 250								uA
Typical Junction Capacitance (Note 1)	62							pF
Maximum Reverse Recovery Time (Note 2)	35				35			nS
Typical Thermal Resistance Note R JC	3.0							0C / W
Operating and Storage Temperature Range TJ	-55 to +150							℃
