YZPST-BT152

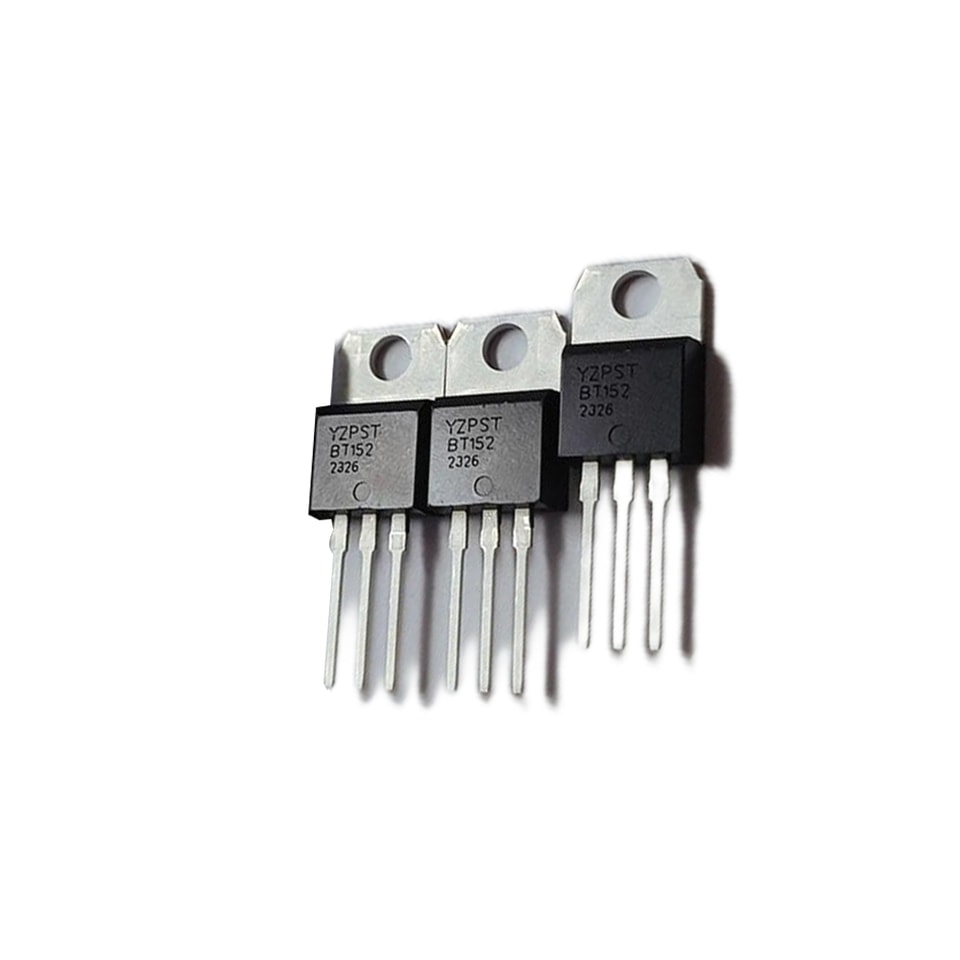

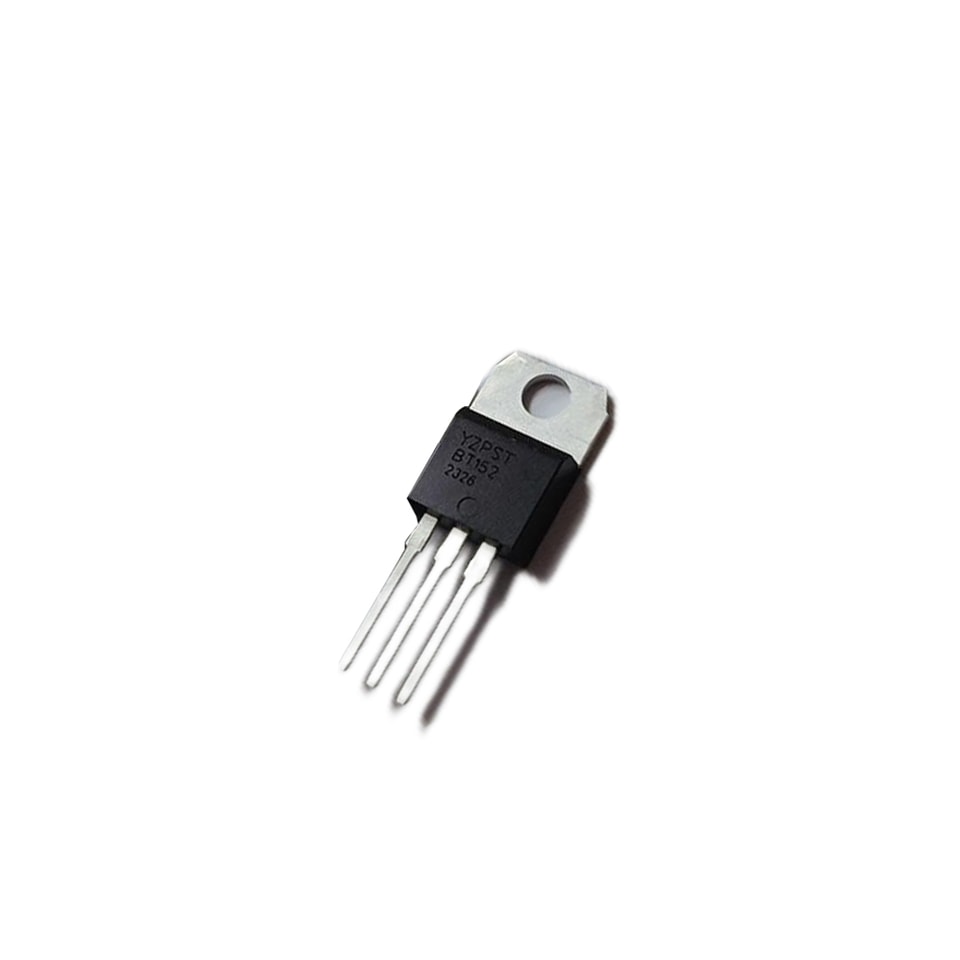

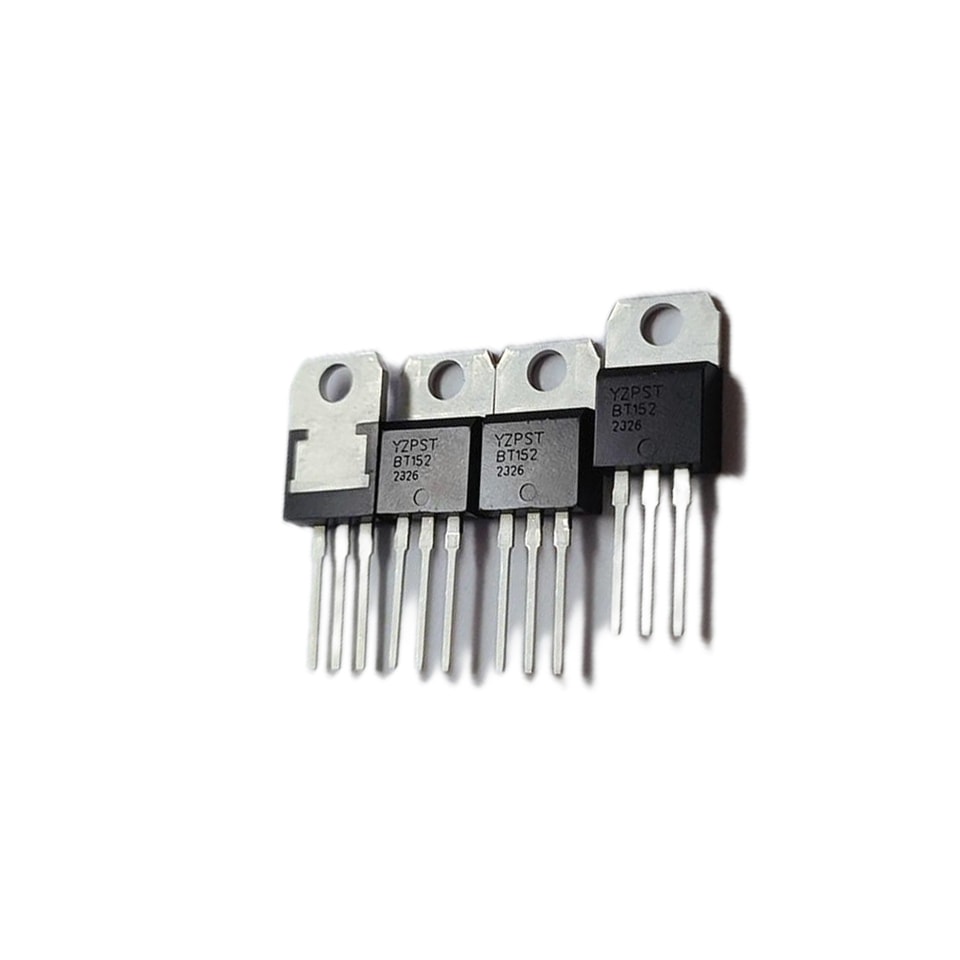

Single Mesa 20A BT152 SCR TO-220

YZPST-BT152

• Product features
  Silicon unilateral device NPNP four layer structure,
  P+ on the through diffusion isolation,
  Single mesa structure (Single Mesa),
  Table glass passivation process,
  The back   (anode)   electrode metal: Ti-Ni-Ag
  The high ability of   current shock resistance

  ●The main purposes
  Alternating current switch,
  AC DC power converter,
  The control of electric heating
  Motor speed control
  ● Package
  TO-220M1    TO-220F

​

Main    Feature (Tj=25℃)

Absolute ratings (Limiting Values)

Thermai Resistances

Electrical characteristics (Tj=25℃ unless otherwise stated)

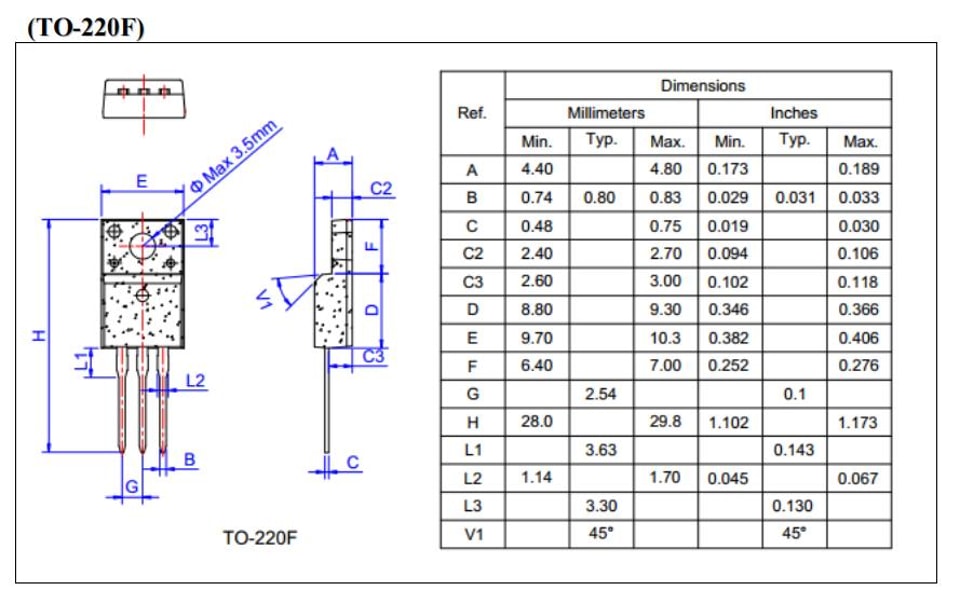

Measure of   package
((TO--220F))
