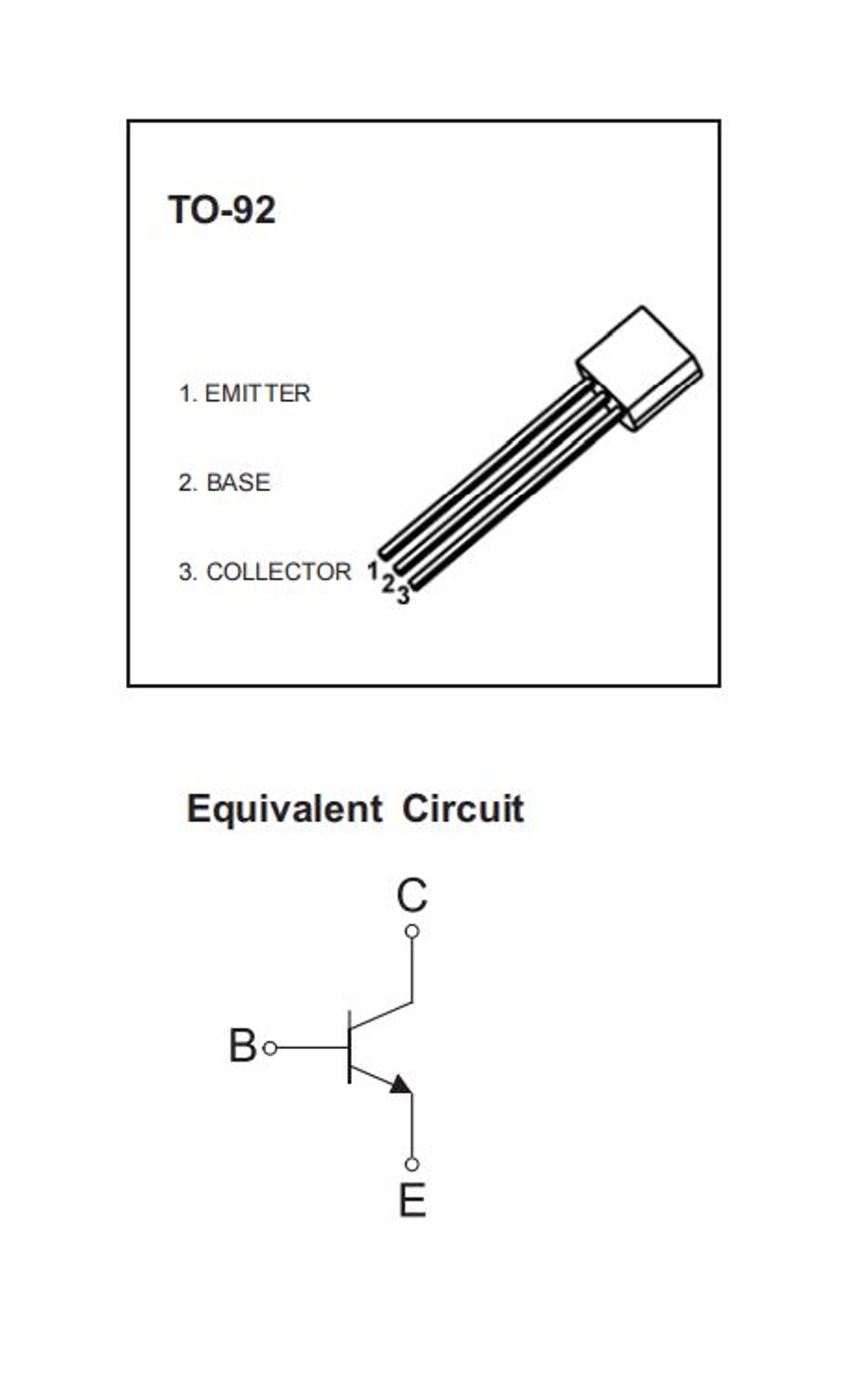

TO-92 Plastic-Encapsulate Transistors

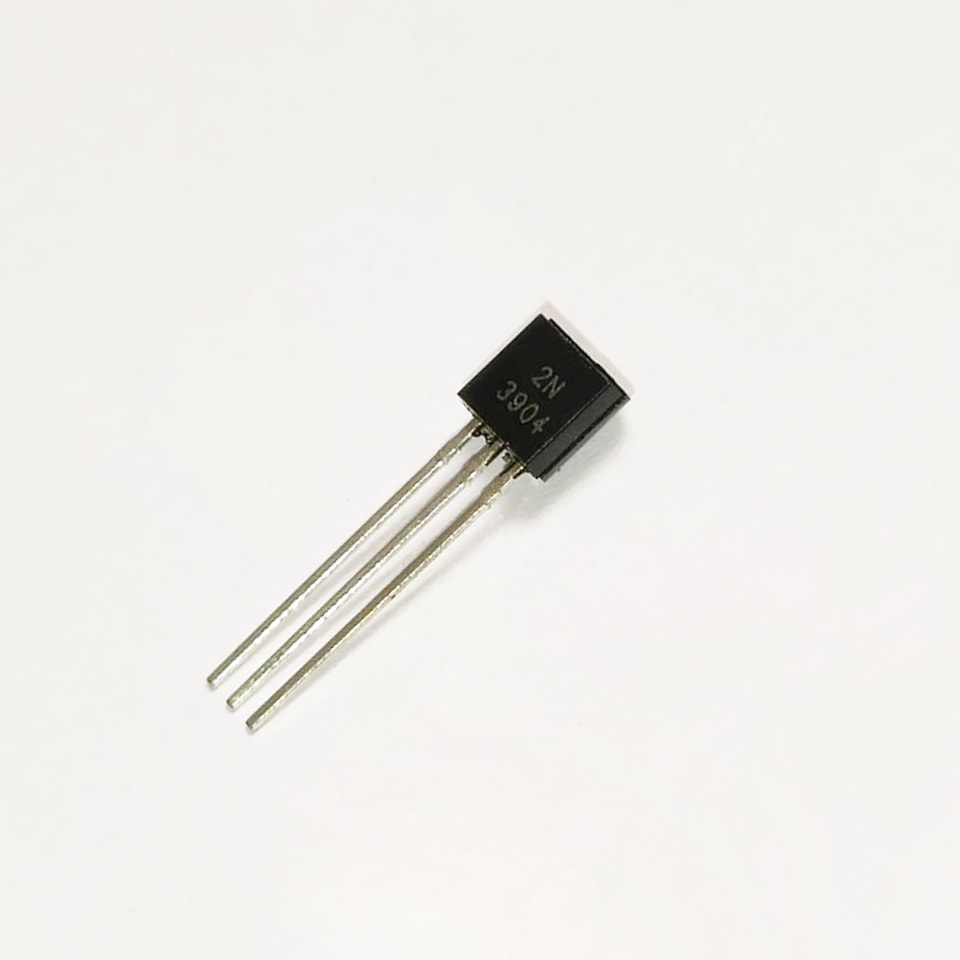

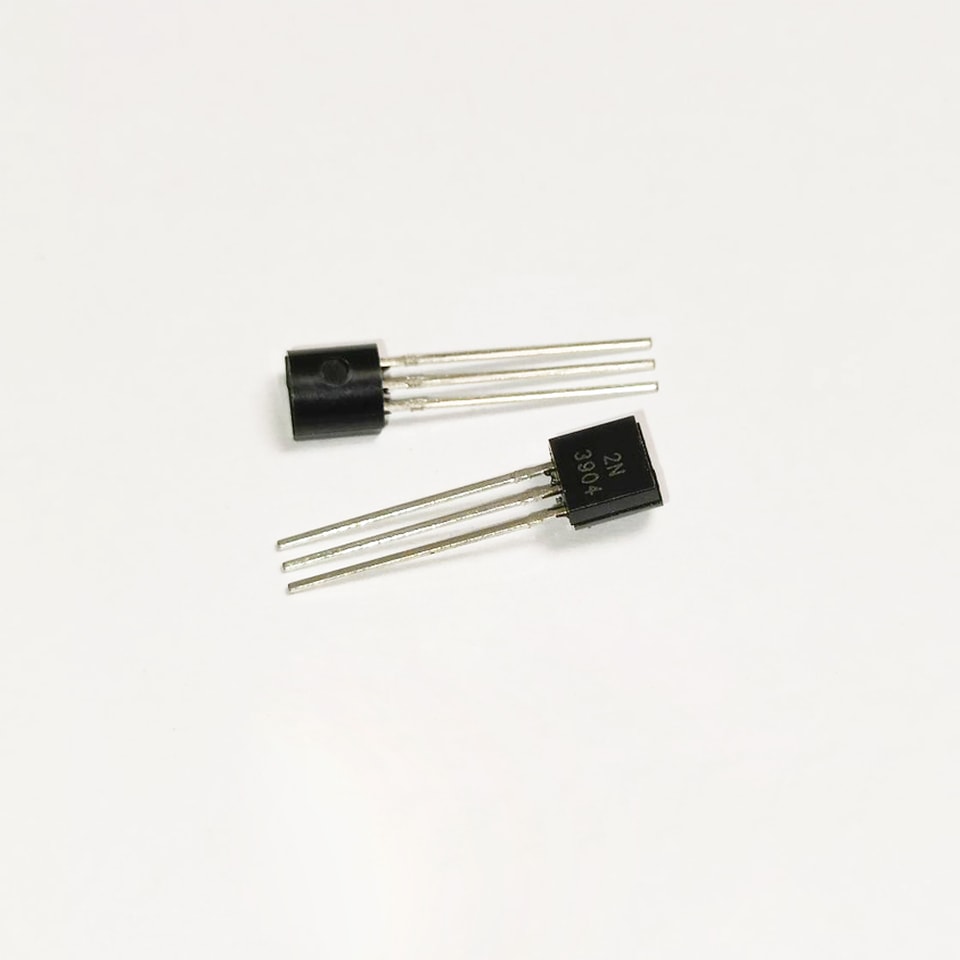

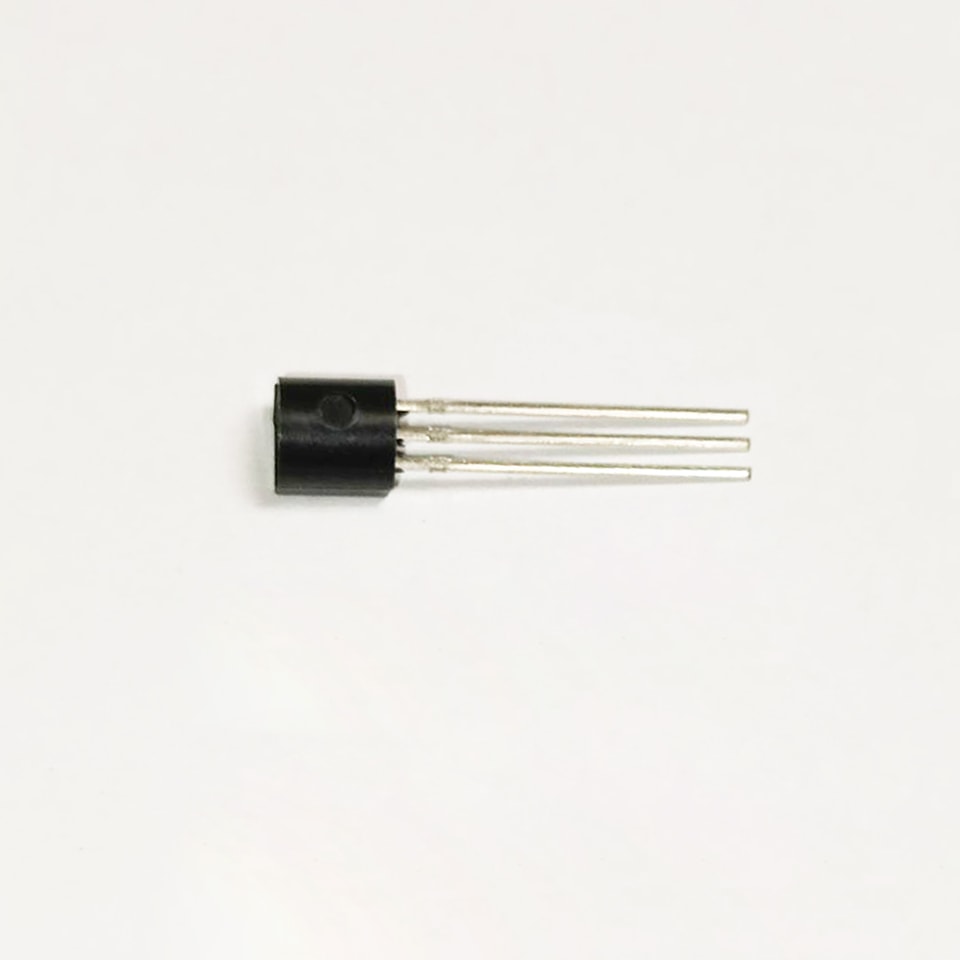

YZPST-2N3904 TRANSISTOR (NPN)
FEATURE
NPN silicon epitaxial planar transistor for switching and
Amplifier applications
As complementary type, the PNP transistor 2N3906 is
Recommended
This transistor is also available in the SOT-23 case with
the type designation MMBT3904
ORDERING INFORMATION
Part Number | Package | Packing Method | Pack Quantity |
2N3904 | T0-92 | BuIk | 1000pcs/Bag |
2N3904-TA | T0-92 | Tape | 2000pcs/Box |
MAXIMUM RATINGS (Ta=25'℃ unless otherwise noted)
| Symbo1 | Parameter | Va1ue | Unit |
| VCB0 | Collector-Base Voltage | 60 | V |
| VCE0 | Collector-Emitter Voltage | 40 | V |
| VEB0 | Emitter-Base Voltage | 6 | V |
| C | Collector Current -Continuous | 0.2 | A |
| PC | Collector Power Dissipation | 0.625 | W |
| TJ,Tstg | Operation Junction and Storage Temperature Range | -205 | C |
=25℃ unless otherwise specified
| Parameter | Symbo1 | Test | Min | Typ | Max | Unit |
| conditions | ||||||
| Co11ector﹒base | V(BR)CBO | IC=10ΚA, IE=0 | 60 | V | ||
| breakdown | ||||||
| vo1tage | ||||||
| Co11ector﹒emitter | V(BR)CEO | IC= 1mA , IB=0 | 40 | V | ||
| breakdown | ||||||
| vo1tage | ||||||
| Emitter﹒base | V(BR)EBO | IE= 10ΚA, IC=0 | 6 | V | ||
| breakdown | ||||||
| vo1tage | ||||||
| Co11ector cut﹒off | ICBO | VCB=60V, IE=0 | 0.1 | UA | ||
| current | ||||||
| Co11ector | ICEX | VCE=30V, VEB(off)=3V | 0.05 | UA | ||
| cut﹒off | ||||||
| current | ||||||
| Emitter | IEBO | VEB= 5V, IC=0 | 0.1 | UA | ||
| cut﹒off | ||||||
| current | ||||||
| FE1 | VCE=1V, IC=10mA | 100 | 400 | |||
| DC | ||||||
| current | FE2 | VCE=1V, IC=50mA | 60 | |||
| gain | FE3 | VCE=1V, IC=100mA | 30 | |||
| Co11ector﹒emitter | VCE(sat) | IC=50mA, IB=5mA | 0.3 | V | ||
| saturation | ||||||
| vo1tage | ||||||
| Base﹒emitter | VBE(sat) | IC=50mA, IB=5mA | 0.95 | V | ||
| saturation | ||||||
| vo1tage | ||||||
| Transition | T | VCE=20V,IC=10mA,f=100MHz | 300 | MHZ | ||
| frequency | ||||||
| De1ay | td | VCC=3V,VBE=0.5V, | 35 | ns | ||
| Time | IC=10mA,IB1=1mA | |||||
| Rise | tr | 35 | ns | |||
| Time | ||||||
| Storage | ts | VCC=3V, IC=10mA | 200 | ns | ||
| Time | IB1=IB2=1mA | |||||
| Fa11 | tf | 50 | ns | |||
| Time |

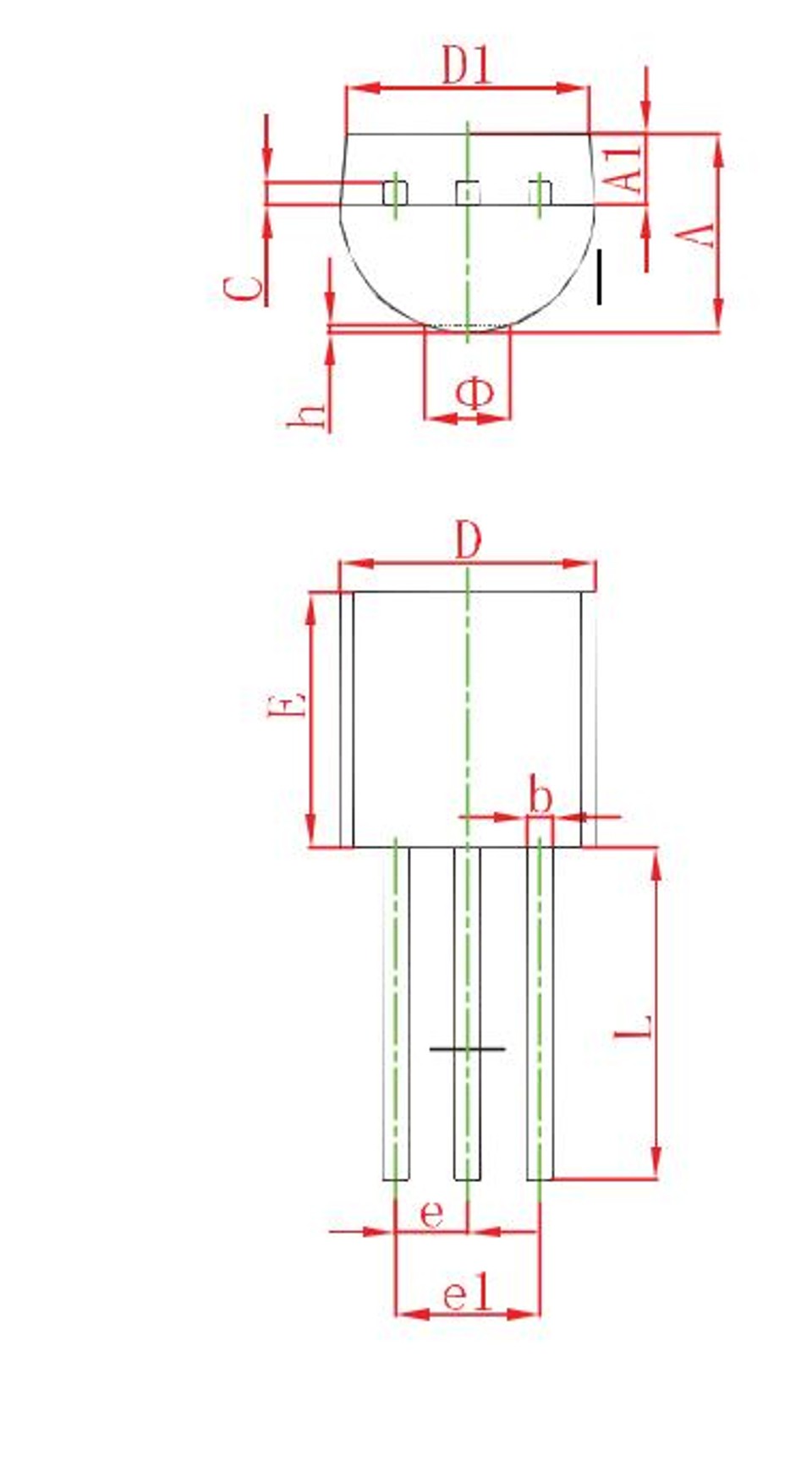

Outline Dimensions
| Symbo1 | Dimensions | Dimensions | ||
| n | ln | |||
| Mi11imeters | lnches | |||
| Min | Max | Min | Max | |
| A | 3.3 | 3.7 | 0.13 | 0.146 |
| A1 | 1.1 | 1.4 | 0.043 | 0.055 |
| b | 0.38 | 0.55 | 0.015 | 0.022 |
| c | 0.36 | 0.51 | 0.014 | 0.02 |
| D | 4.3 | 4.7 | 0.169 | 0.185 |
| D1 | 3.43 | 0.135 | ||
| E | 4.3 | 4.7 | 0.169 | 0.185 |
| e | 1.270 TYP | 0.050 TYP | ||
| e1 | 2.44 | 2.64 | 0.096 | 0.104 |
| L | 14.1 | 14.5 | 0.555 | 0.571 |
| Κ | 1.6 | 0.063 | ||
| h | 0 | 0.38 | 0 | 0.015 |
For more information about YZPST-2N3904 please download the PDF file above named " YZPST-2N3904 TO92"
