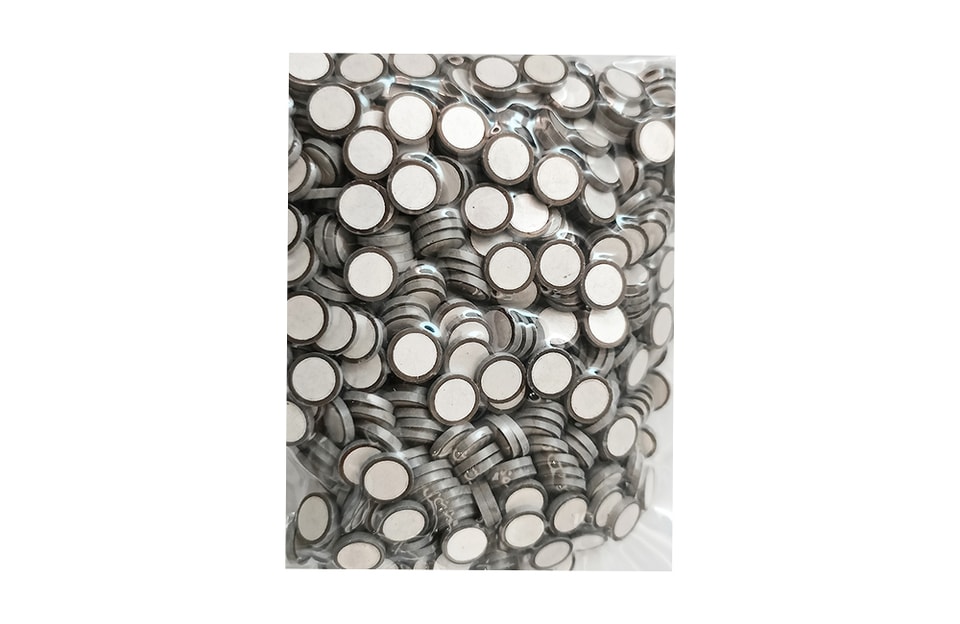

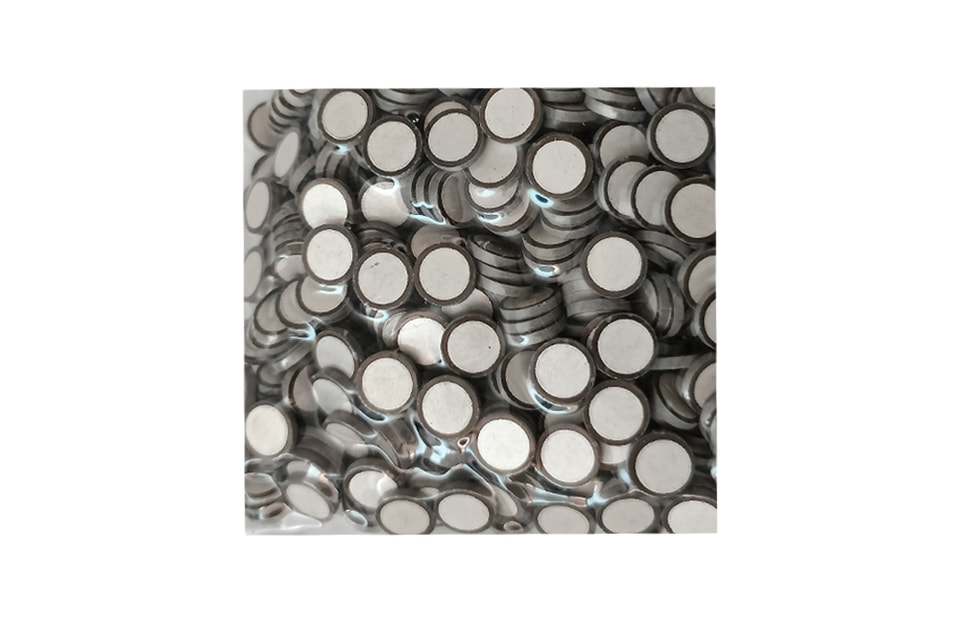

PTC Thermistor for Overcurrent Protection for Telecom Φ8*1.4

No.

Item

Specification

Condition

1.1

Size

Φ8*1.4

1.2

Nominal resistance

14-19Ω

1.5V_DC

Leave the samples in the static air at 25±1℃ for 2 hours, measure them in DC1.5Vmax..

1.3

Resistance at 80℃

<60Ω

Zero load resistance

1.4

Resistance at 95℃

23-120Ω

Zero load resistance

1.5

Resistance at 160℃

>300kΩ

Zero load resistance

1.6

Max.operating voltage

16V

150Ω in series.

1.7

Working voltage

200mV

between -30℃ and +80℃

1.8

Nominal current

20mA

1.9

Curie temperature

80℃

1.10

Max. surface temperature

180℃
